Teaching What You Should Teach: A Data-Based Distillation Method

1 Introduction

Deep neural networks have been widely applied in many fields, such as computer vision [Zagoruyko and Komodakis, 2016b; Wieczorek et al., 2021; Chen et al., 2023], natural language processing [Zhao et al., 2020; Dai et al., 2019], reinforcement learning [Mnih et al., 2013] and speech signal processing [Purwins et al., 2019]. However, the improving performance of the deep learning model is always achieved by the increasing size of the model, which makes it impractical to deploy the large-scale model further in realworld scenarios, especially on small devices [He et al., 2022; Devlin et al., 2018]. To alleviate this problem, researchers have developed a series of model compression methods, such as parameter pruning [Frankle and Carbin, 2019], quantization [Wu et al., 2016], and knowledge distillation [Hinton et al., 2015].

∗Corresponding author

Inspired by the teaching process in the human world, knowledge distillation is firstly proposed by [Hinton et al., 2015], which aims to improve the target model or so-called student model, by teaching this model using a better teacher model instead of only ground truth labels. There are two mainstream approaches to distilling knowledge from the teacher to the student. One is the logit-based distillation, where the student is supervised not only by the ground truth labels but also the output of the teacher [Zhao et al., 2022; Huang et al., 2022]. The other is the feature-based distillation, which not only aligns the output of the student and the teacher, but also aligns the activation map in some layers [Tung and Mori, 2019; Ahn et al., 2019]. These methods have achieved remarkable progress on learning efficient and effective models in the past decades, and the theoretical and practical systems of these two research directions are pretty well established. Thus, it is difficult for scholars to come up with new algorithms to surpass the past ones and further improve the student's performance.

In this work, we rethink the knowledge distillation algorithm froma newperspective called data-based distillation. In a real-world teaching scenario, if logit-based distillation and feature-based distillation can be treated as teaching in different styles and ways, then data-based distillation can be seen as teaching knowledge in different fields. Commonly, a good teacher will decide which subject to teach based on the student's own deficiencies, and, of course, the teacher should at least be proficient in that subject. This gives the student the knowledge it most urgently needs and drives it to improve its abilities in the corresponding weak subject. Thus, we can introduce this teaching idea to knowledge distillation and let the teacher only teach the knowledge that it should teach to boost the performance and effectiveness of the student.

More specifically, we propose a novel data-based distillation method, named "Teaching what you Should Teach (TST)," which can improve the student's generalization ability by generating a series of new samples that the teacher excels at but the student does not. We design a mechanism that contains a data augmentation encoder that aims to generate augmented samples that the teacher is good at while the student is not good at; then, the teacher utilizes these augmented samples to guide the student. Note that this encoder is differentiable and stable, and the safety and diversity of generated samples can be ensured since it introduces manual data augmentations (e.g., Translate, Rotate, and Solarize) and employs the microscopic property of meta-encoders. In addition, we assume that it is easy for TST to generate samples that meet its requirements, which is difficult for the student to learn. Thus, we make the number of training iterations of the encoder much smaller than that of the student to ensure the distilled students have the most robust performance improvement.

We conduct extensive experiments on image classification (CIFAR-100 [Krizhevsky and Hinton, 2009] and ImageNet-1k [Russakovsky et al., 2015]), object detection (MS-COCO [Lin et al., 2014]), and semantic segmentation (Cityscapes [Cordts et al., 2016]) tasks. As a result, TST achieves state-of-the-art (SOTA) performance in all quantitative comparison experiments with fair comparison, indicating that data-based distillation is feasible and needs more scholarly attention.

Our contribution can be summarized as follows:

• We rethink knowledge distillation from a data perspective, which not only inspires us to draw on real-world teaching scenarios but also helps us come up with a new idea, improving knowledge distillation by teaching methods as well as using more desirable data.
• We propose a novel data-based distillation method named TST to help search for augmented samples that are suitable for distillation. In TST, we develop a differentiable and stable data augmentation encoder to generate more data like that and add priori bias into this encoder to ensure its stability and interpretability.
• We have achieved SOTA performance on a range of vision tasks and done plenty of ablation studies to verify the effectiveness of TST. Besides, we visualize the characteristic information of the data augmentation encoder learned by TST and discover some patterns in it.

2 RelatedWork

Categorize Knowledge Distillation. We classify knowledge distillation algorithms into three categories: logit-based distillation, feature-based distillation, and data-based distillation. Past researchers have explored knowledge distillation only at the logit or feature levels. Specifically, vanilla KD [Hinton et al., 2015], DKD [Zhao et al., 2022], and DIST [Huang et al., 2022] measure the difference in probability distribution between the student's logit and the teacher's logit by designing different forms of functions. And FitNet [Romero et al., 2014], ATKD [Zagoruyko and Komodakis, 2016a], and CRD [Tian et al., 2020] apply encoders or novel distance metric functions, or both to perform knowledge transfer at the feature level. However, these works focus only on "how to teach" and ignore "teach what", which can be analogized to the data level. We categorize knowledge distillation algorithms on the data level as data-based distillation and find it has not been investigated in the generic distillation framework [Yin et al., 2020; Fang et al., 2022]. To fill this gap, we turn to focus on designing a data-based distillation method and use a data augmentation encoder to obtain new samples from the original samples that can be recognized by the teacher but not by the student.

Learnable Data Augmentation. Data augmentation utilizes affine and color transformations to expand the training dataset. Traditional manual data augmentation, including RandAugment [Cubuk et al., 2020] and AutoAugment [Cubuk et al., 2019], is non-differentiable and unlearnable. In recent years, differentiable data augmentation [Li et al., 2020] has ensured the learnability of data augmentation through a series of numerical approximations, but its overly complex framework design has hindered its further application. TeachAugment [Suzuki, 2022] effectively solves the problem of unlearnability of data augmentation through a neural network-based data augmentation module, but the instability of this module leads to the need to impose a series of additional constraints to assist training. Thus, in TST, we add priori bias to the neural network-based data augmentation module and then freeze it in standard training. This ensures that the new data encoder is interpretable and stable.

3 TeachWhat You Should Teach

In this section, we first introduce the total framework of TST. Then, we present the simple knowledge distillation in Stage III, the search for desirable data in Stage II, and how to introduce priori bias into the data augmentation module in Stage I. Finally, the concrete implementation of the data augmentation module is described.

3.1 Total Framework

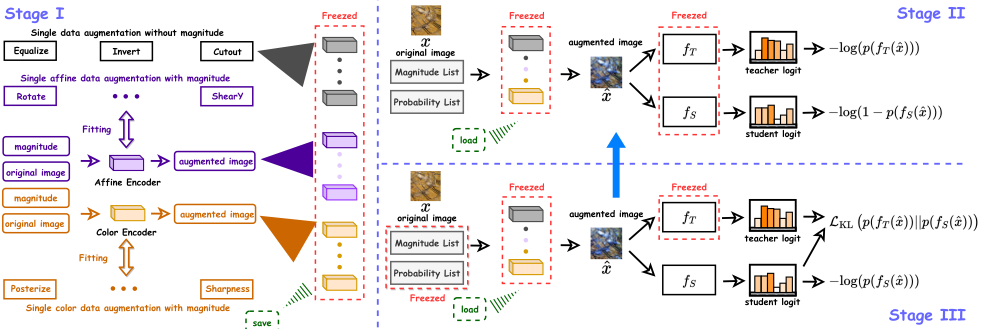

As illustrated in Fig. 1, TST can be divided into three stages, namely Stage I, Stage II, and Stage III. To be specific, Stage I introduces the reasonable priori bias into the neural network-based data augmentation module before formal training, which helps ensure the stability of training in Stage II and Stage III, and improves the student's ultimate generalization ability. Then, Stages II and III obtain an excellent student by alternately training them. In Stage II, we initialize the learnable magnitudes and probabilities, and search augmented samples that the teacher is good at but the student is not, by minimizing the cross-entropy of the teacher and maximizing the cross-entropy of the student. We expect that the student will serve its deficiencies in Stage III and obtain good generalization ability after training. In particular, Stage III can be viewed as a simple knowledge distillation framework that only applies a traditional cross-entropy loss and a Kullback-Leibler divergence to optimize the student. Therefore, the core of TST is to find more desirable training data for Stage III through Stage I and Stage II. The more detailed algorithmic procedure of TST can be found in Appendix C.

3.2 Simple Knowledge Distillation

Stage III is a simple knowledge distillation framework, which can be interpreted as follows: given a teacher fT with parameter θT and a student fS with parameter θS, when a training set X including the original samples and augmented samples are utilized for training, we can sample the mini-batch {xk }Bk=1 (B denotes the batch size) from it and get the student output {fS(xk )}Bk=1 and the teacher output {fT (xk )}Bk=1 by forward propagation. Let us define the normalized exponential function p, i.e., softmax, to calculate the probability distribution of the model output. The goal of knowledge distillation is to minimize the cross-entropy loss LCE between {p(fS(xk ))}Bk=1 and the ground truth label {yk }Bk=1 , and the Kullback-Leibler divergence LKL between {p(fT (xk )/τ)}Bk=1 and {p(fS(xk )/τ)}Bk=1 , where τ refers to the temperature weight. Thus, the total loss function Ltotal is formulated as

where wce and wkl are balanced weights. Note that Eq. 1 can also be appended with other distillation loss functions, e.g. Mean Squared Error function (LMSE), to improve the performance of distillation, which is applied in TST for the object detection task.

3.3 Search Desirable Data

The goal of TST is to assist the student in overcoming its deficiencies in Stage III by discovering more desirable data that the teacher excels at but the student does not in Stage II. We denote the neural network-based data augmentation module fDE contains a data augmentation meta-encoder set {f iE }Ni=1 with a parameter set {θiE , θip }Ni=1 ∪{θim}N-Nnl i=1 , where N and Nnl refer to the total number of all sub-policies and the total number of sub-policies without magnitudes, respectively. Note that each fE has the frozen parameter θE containing priori bias, and its other parameters, i.e., the magnitude 1 θm and the probability θp, are learnable in Stage II. Therefore, as shown in the upper right corner of Fig. 1, we denote the loss function of TST in Stage II as

where ˆx denotes the augmented sample obtained from the original sample after fDE, and α and β denote the balanced weights. Specific details about fDE will be presented in Sec. 3.5. The optimization objective of Stage II min {θim,θip }Ni=1LTST is to let the student misclassify but let the

teacher correctly classify so that the teacher can transfer the most helpful knowledge to students. To better find desirable data that the student cannot classify correctly, we use LCE (1-p(fS(ˆxk )), yk ) instead of -LCE (p(fS(ˆxk )), yk ) to avoid non-convex optimization, and the proof can be found in Appendix D. Moreover, the parameters {θiE }Ni=1 are frozen because they contain priori bias in favor of distillation, which is imported in Stage I. As demonstrated later in Sec. 4.2, distillation can easily fail if {θiE }Ni=1 is not frozen due to the instability of the data augmentation module.

During standard distillation training, Stage II and Stage III alternate. Specifically, TST first employs Stage II to find new samples suitable for distillation, and then utilizes Stage III to improve the student's generalization ability. Inspired by [Carlini and Wagner, 2017], we claim that it is easy to search augmented samples in Stage II that match what the teacher is good at but the student is not, while it is difficult for the student to absorb knowledge contained in the augmented samples in Stage III. Therefore, the number of iterations nencoder of Stage II will be much smaller than the number of iterations nstudent of Stage III. Also, Sec. 4.2 illustrates that the student trained by TST will have better performance when nencoder ≪ nstudent.

1 Magnitudes indicate the strength of the sub-policies transition. Some sub-policies do not have this variable, such as Cutout, Equalize, and Invert. These details will be introduced later.

3.4 Introduce Priori Bias into fDE

Noise-based generative models require expensive computational costs and suffer from training instability (more detailed can be found in Appendix D.5). Thus, Stage I is applied to introduce the augmented priori bias into fDE and let {θip }Ni=1 ∪ {θim}N-Nnl i=1 be differentiable. Thanks to priori bias, TST is able to distill a strong student in a limited number of iterations. For simplicity, we consider each meta-encoder fE in the set {f iE }Ni=1 as a black box in this paragraph. In Stage I, since Equalize, Invert and Cutout do not have the property of magnitude, they do not need to be fitted and can be called directly in Stage II and Stage III. Of course, their probabilities are learnable and will still be optimized in Stage II. Then, we categorize a series of single data augmentations as follows: (a) magnitudeunlearnable transformations, including Equalize, Invert, and Cutout; (b) learnable affine transformations, including Rotate ShearX, ShearY, TranslateX, and TranslateY; (c) learnable color transformations, including Posterize, Solarize, Brightness, Color, Contrast, and Sharpness [Cubuk et al., 2019; Cubuk et al., 2020]. For the learnable affine transformations and color transformations, we apply Spatial Transformer Network [Jaderberg et al., 2015] and Color Network for fitting, respectively. Since both types (a) and (b) are fitted in the same way, we define a set of the manual data-augmentation mappings {f iA}N-Nnl i=1 that includes all single data augmentations with magnitude. For each matched pair fA and fE in {f iA}N-Nnl i=1 and {f iE }N-Nnl i=1 , we will optimize LMSE by nfitting iterations. The loss function in Stage I can be formulated as

where mr ∼ U(0, 1) refers to the magnitude. Lencoder will be optimized to a very small error bound after nencoder iterations. This guarantees that all meta-encoders are well-trained.

3.5 Network-Based Data Augmentation

We will describe the whole process of how x goes through fDE and finally becomes ˆx in this sub-section. We first describe how fDE calls {f iE }Ni=1 to accomplish the combination of various sub-generated samples, and then we present the details of Spatial Transformer Network [Jaderberg et al., 2015] and Color Network.

After normalizing {θim}N-Nnl i=1 and {θip }Ni=1 to [0, 1] by applying the sigmoid activation function, we employ the Relaxed Bernoulli Distribution to sample new magnitudes and probabilities for solving the non-differentiable problem [Lim et al., ; Li et al., 2020]. The process can be formulated as

where Logistic and τl stand for the logistic distribution and the temperature, respectively, and τl is set as 0.05. Then, we randomly select NA non-repeating numbers {Z i }NA i=1 from {i}Ni=1 . NA can be interpreted as the number of randomly sampled primitives, i.e., a larger NA means that the model is more difficult to identify the augmented samples. NA is set as 4 by default in our experiments. We obtain {xiE }NA i=1 from x through all meta-encoders and get the final ˆx by simple sum denoted as

where ⊙ denotes the element-wise product. For object detection tasks, the summation in Eq. 5 can easily lead to the undesired result that a single target object turns into multiple target objects. Therefore, we use a separate algorithm for this special task. which is explained in Appendix D.

Spatial Transformer Network fSTN and Color Network fCN are two different neural network-based meta-encoders. Each has parameters θE to store priori bias learned from Stage I. However, fSTN and fCN employ different ways to complete the calculation. As shown in the next Eq., when x and magnitude m are fed into fSTN, θE (can be considered as a vector) is first concatenated with m to form a new vector ˆ θE, and then passes through a fully connected layer FC := Rlen(θE)+1 → R6 to obtain the matrix A ∈ R2×3 , denoted as

For fCN, its forward propagation is composed of convolution and color transformation. So, θE not only has a vector θE,V but also a convolution weight θE,C to record priori bias. When x and m are fed into fCN, θE,V and m concatenate a newvector ˆ θE,V , and we let it through a fully connected layer FC := Rlen(θE,V )+1 → R2 to obtain the scale and shift parameters, i.e., θscale and θshift. After that, the output of fCN is denoted as

where C refers to the convolutional layer. In particular, in our experiments, we perform RBD on A, θshift and θscale additionally to guarantee the diversity of data augmentation to prevent

{θim}N-Nnl i=1 and {θip }Ni=1 fromconverging to a locally optimal solution.

4 Experiment

We conduct comparison experiments on three major tasks: image classification, object detection, and semantic segmentation. The image classification datasets include CIFAR100 [Krizhevsky and Hinton, 2009] and ImageNet-1k [Russakovsky et al., 2015]; the target detection dataset includes MS-COCO [Lin et al., 2014]; the semantic segmentation dataset includes Cityscapes [Cordts et al., 2016]. More details about these datasets can be found in Appendix A. Besides, all the experiment results on CIFAR-100 are the average over five trials, while the related experiment results on other datasets are the average over three trials. We apply batch size 128 and initial learning rate 0.1 on CIFAR-100. And we follow the settings in [Huang et al., 2022] for the ResNet34-ResNet18 pair and the ResNet50-MobileNet pair on ImageNet-1k. The settings of other classification, detection and segmentation tasks can be found in Appendix B.

4.1 Comparison with SOTAMethods

Classification on CIFAR-100. We compare many state-ofthe-art feature-based and logit-based distillation algorithms on nine student-teacher pairs. For these teacher-student pairs, the teacher and student of six pairs have the same structure, and the teacher and student of the other three pairs have different architecture. The experimental results are presented in Table 1. Obviously, we can find that TST, as the only data-based distillation approach, outperforms all other algorithms on eight student-teacher pairs except for ResNet32×4ShuffleNet-V1. Especially on three teacher-student pairs, including ResNet110-ResNet20, ResNet110-ResNet32 and VGG13-VGG8, our TST surpasses the latest state-of-the-art methods by almost more than one percent. Besides, in order to more fully demonstrate the excellent performance of TST, we conduct simulations of few-shot scenarios on CIFAR-100. Here, we follow the training settings in [Tian et al., 2020] and randomly discard 25%, 50%, and 75% samples for training. As the experimental results shown in Appendix D.6, TST also performs well in this few-shot scenario.

Classification on ImageNet-1k. To further demonstrate whether TST can work robustly on ImageNet-1k, we conduct experiments with two different architecture pairs, including Conv-Conv and ViT-ViT pairs. For Conv-Conv pair, we consider two teacher-student pairs: ResNet34-ResNet18 and ResNet50-MobileNet-V1 pairs, and apply the same hyperparameter settings to show the effectiveness of TST. The results are illustrated in Table 2. We can find that TST beats all state-of-the-art methods in ResNet34-ResNet18 pair but is slightly inferior to SRRL, ReviewKD and DIST in ResNet50MobileNet-V1 pair. The possible reason is that the teacher is stronger, which causes the teacher overconfident in discriminating on the original and generating augmented samples. In our discussion, we consider this phenomenon in isolation and give two solutions for mitigating poor student performance under TST training with the stronger teacher. In particular, this is not a defect of TST, but rather due to the fact that LKL is not adapted to the distillation process with the stronger teacher. In fact, there are many approaches, including DIST [Huang et al., 2022] and DKD [Zhao et al., 2022], that have been proposed to alleviate the gap between the teacher and student. For the ViT-ViT pair, we regard Swin Transformer [Liu et al., 2021], which is widely known and applied by researchers, as the model architecture in distillation. We treat Swin Transformer Tiny (Swin-Tiny) as the student and Swin-Transformer Large (Swin-Large) as the teacher. The experimental results are presented in Table 2, where TST surpasses all methods except DIST, showing that TST is applicable to ViT-based architectures.

Detection on MS-COCO. Comparison experiments are run on three kinds of different detectors, i.e., two-Stage detectors, one-stage detectors, anchor-free detectors. In particular, TST introduces additional losses on Stage II that drove the student box regression to be inaccurate and the teacher box regression to be accurate. As shown in Table 3, TST breaks the vanilla KD bottleneck by locating augmented samples that are conducive to distillation. Due to the additional loss on box regression in Stage II and the fact that the detection task depends more on the network's ability to produce good features, we believe that aligning the student and teacher feature maps will improve the performance of TST. Thus, we follow [Huang et al., 2022] by adding auxiliary loss mimic, i.e., translating the student feature map to the teacher feature map by a convolution layer and supervising them utilizing LMSE, to the detection distillation task. Ultimately, we can conclude from Table 3 that TST based on the vanilla KD and mimic achieves the best performance on Cascade RCNNX101-Cascade RCNN-R50 and RetinaNet-X101-RetinaNetR50 pairs.

Segmentation on Cityscapes. We conduct comparative experiments of semantic segmentation on PSPNet-R101PSPNet-R18 pair [Zhao et al., 2017]. As shown in Table 4, TST outperforms all the state-of-the-art methods and demonstrates that data-based distillation is effective in the field of semantic segmentation.

4.2 Ablation Study

We conduct ablation studies in three aspects: (a) the effect of Stage II on the student performance; (b) the effect of different iteration numbers in Stage II; (c) the impact of varying data encoders on TST.

As illustrated in Table 5, no matter what kind of teacherstudent pairs or whatever value of NA, the augmented sample search strategy of TST, i.e., Stage II, is always beneficial for distillation.

In addition, we suppose that TST may easily find augmented samples that the student is not good at, but it is difficult for the student to absorb the corresponding knowledge fully. Based on this conjecture, TST should perform best in the case that nencoder ≪ nstudent. The experimental results in Table 6 verify our assumption. Note that |X| B actually refers to the iteration number within an epoch.

At last, we show the impact of different types of data encoders on the performance of TST in Table 7 and analyze it. One of the data encoders, Attack, denotes the direct manipulation of samples in a form similar to PGD [Madry et al., 2018], which means that TST must let Stage II and Stage III iterate once each in turn and repeat the process. Based on the findings in Table 7, we can indicate that it is an extremely sensible choice to introduce the augmented priori bias into the data encoder and to freeze the parameters associated with the bias during distillation process.

5 Discussion

How to alleviate the gap between the teacher and student? To analyze this situation, we train two stronger teachers, including WRN-40-4 and WRN-28-10, achieve 80.7% and 82.0% Top-1 accuracy on the test set of CIFAR-100, respectively. Then, we employ these two teachers for a more in-depth exploration. As illustrated in Table 8, when wce, wkl, α and β take default values (i.e., 1, 1, 1 and 1), stronger teachers (i.e., WRN-40-4 and WRN-28-10) usually achieve worse performance compared to WRN-40-2. To analyze this phenomenon, we show in Fig. 3 that the teacher's response to the ground truth label, i.e., the probabilities of correctly discriminating samples. Specifically, in each epoch of Stage III, we get the teacher's responses to the correct category corresponding to all training samples, and plot the expectation of the responses. This indicates that the stronger the teacher is, the closer its response is to one-hot encoding and the less "dark knowledge" attached to the logit. Consequently, the performance degradation of students caused by stronger teachers can be mitigated by making the teacher logit not too close to one-hot coding. We propose two solutions: (a) decrease wce and increase wkl, simultaneously, to transfer more "dark knowledge" from the teacher to the student; (b) decrease α and increase β, simultaneously, to make the teacher not overconfident about the augmented samples searched by Stage II. As exhibited in Table 8, both methods assist in bridging the gap between the teacher and student to some extent.

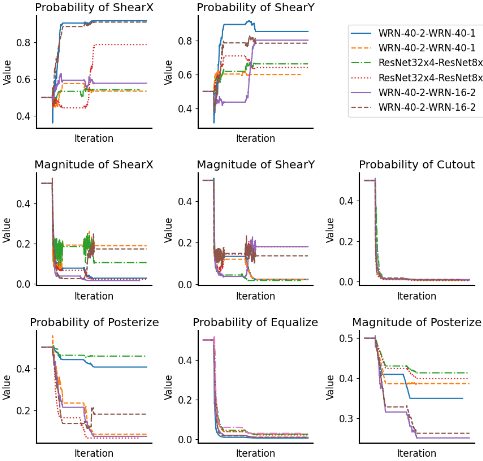

What are the strengths and probabilities of execution for augmentations that the teacher excels at, but the student does not? To answer this question, we choose 8 magnitudes and probabilities from {θim}N-Nnl i=1 and {θip }Ni=1 with distinct patterns and plot their variation with iteration in Fig. 2. The full TST visualization of search results is shown in Appendix D. Note that there are 3 teacherstudent pairs, i.e., WRN-40-2-WRN-16-2, WRN40-2-WRN40-1 and ResNet32×4-ResNet8×4 pairs in these figures, and each pair has two changing curves. Although the magnitudes and probabilities searched by the different models are various, they have macroscopic similarities. For instance, ShearX and ShearY converge to larger probabilities and smaller magnitudes; sub-policies without learnable magnitudes, such as Equalize and Cutout, converge to minimal probabilities. In fact, such a result is intuitive. For instance, the co-characteristics of the dataset let the magnitudes and probabilities searched by the data augmentation methods (e.g., PBA and AutoAugment) on one model can also be applied to another one. Besides, each curve in Fig. 2 differs at a microscopic level due to the difference between teacherstudent pairs and the stochastic nature of deep learning.

6 Conclusion

In this paper, inspired by realistic teaching scenarios, we design a data-based distillation algorithm called TST. To be specific, TST locates augmented samples that the teacher is good at while the student is not, and transfers the knowledge of these augmented samples from the teacher to the student with the expectation that an excellent student can be learned. Our experimental results, including both qualitative and quantitative ones, demonstrate the feasibility of the data-based distillation method and the validity of the "Teach what you Should Teach" strategy. In future research, the data-based distillation, which is as competitive as logit-based and feature-based distillation, may deserve more attention in the field of knowledge distillation. Meanwhile, combining data-based distillation with logit-based distillation and feature-based distillation may lead to greater performance breakthroughs in distillation.

Acknowledgments

This work was supported in part by the Nature Science Foundation of China (NSFC) under Grant No 62072041.
