Learning 3D Photography Videos via Self-supervised Diffusion on Single Images

1 Introduction

Recent advances in generation have delivered impressive photorealistic visual content, such as images [Rombach et al., 2022; Wu et al., 2022; Ramesh et al., 2022] and videos [Wu et al., 2021; Villegas et al., 2022; Singer et al., 2022]. 3D photography is a special case of video generation that converts a static image into a 3D video, with applications in virtual reality and animation, attracting wide attention [Shih et al., 2020; Wiles et al., 2020; Tucker and Snavely, 2020; Jampani et al., 2021]. It requires the model to generate a sequence of consistent and reasonable subsequent frames (novel views) from a starting image only by interactively changing the camera

Supplementary Material can be found in https: //wang-xiaodong1899.github.io/assets/IJCAI23 supple.pdf viewpoint, thus putting forward higher requirements to training data and model design.

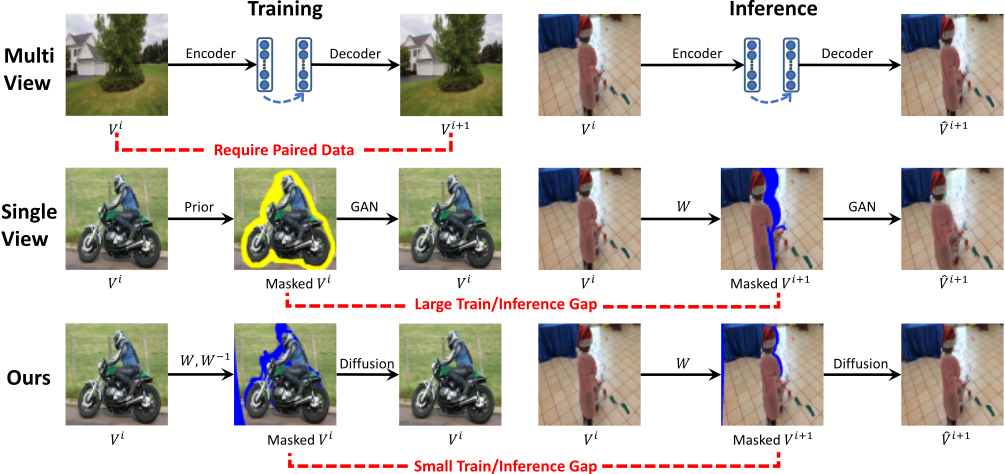

Existing 3D photography methods can be summarized into two categories: multi-view methods and single-view methods, as shown in the first two rows in Fig. 1, respectively. Multi-view methods [Hu et al., 2021; Lai et al., 2021; Rockwell et al., 2021; Li et al., 2021; Li and Kalantari, 2020] usually take frames from video, multi-view images, or fake multi-view images [Han et al., 2022] as input and produce 3D representations of scenes, such as point clouds [Wiles et al., 2020] and MPIs (MultiPlane Images) [Tucker and Snavely, 2020], and then train an encoder-decoder model projecting the source view V i to target view V i+1 . As shown in the first row in Fig. 1, such methods need image pairs in training, but there is a lack of large-scale multi-view datasets.

To alleviate the dependency on multi-view datasets, singleview methods [Jampani et al., 2021; Shih et al., 2020] try to train with only RGB image data, first estimate the monocular depth [Ranftl et al., 2022], and then use MPIs or LDIs (Layered Depth Images) representations to better inpaint the occluded regions of target frames. Early method [Shih et al., 2020] searches the occluded regions by hard layering the discontinuities of estimated depth and inpaints the depth and RGB images separately. Further, [Jampani et al., 2021] extends a soft depth layering to decompose an image into the foregrounds and backgrounds, and it prefers inpainting the backgrounds for preserving foreground details. These singleview methods convert the 3D photography into an inpainting task by predefining the masked regions on image data, and these predefined masks by priors are more suitable for generation than random masks, therefore, they can generate good 3D videos only trained on single images.

However, facing complex scenes in 3D photography, the predefined masks in single-view methods are not consistent with real occluded regions caused by 3D rendering. As shown in the second row in Fig. 1, single-view methods first predefine the masks according to edge or depth priors (the yellow masked regions surrounding the foregrounds as in [Jampani et al., 2021]), and then train GAN-based models to inpaint these regions towards original images. During inference, they first render the source frame V i into a masked V i+1 at the target viewpoint via the 3D renderer W, as the blue masked image shows in the second row in Fig. 1, and then use the trained model to inpaint those occluded regions to obtain the novel view ˆ V i+1 . Since the rendered masks are different from predefined masks, there is a large gap between training and inference, leading to obvious visual distortions.

To this end, we propose a novel self-supervised diffusion model, which only trains on single images but can generate high-quality 3D videos shown in Fig. 1. To align inpainting masks towards real occluded masks, we use the same 3D renderer W to compose a cycle rendering (W,W -1 ). In cycle rendering, we first use W to randomly render the image V i to a virtual image at a nearby viewpoint, and then we use W -1 to render the virtual image back to the viewpoint of V i . As a result, we obtain the masked V i with occluded regions. Further, we utilize a conditional diffusion model that denoises cycle-rendered masked images into original images. We regard the masked images as the conditions, and the original images as the ground-truth images of our diffusion model, respectively. During inference, we can inpaint the masked V i+1 via our trained diffusion model to generate the novel view ˆ V i+1 . This self-supervised way effectively reduces the gap between training and inference, guaranteeing the high quality of generated 3D videos. To fully leverage the semantic information of masked images, we present a Masked Enhanced Block (MEB) to better embed them into the denoising UNet. Specifically, the masked images and occluded masks are fed into the MEBs via two stacked spatially adaptive normalization layers [Park et al., 2019]. By leveraging the enhanced module to inpaint masked images, our model outputs higher fidelity results with fewer visual distortions. To further promote the visual quality and diversity of novel views, we can transfer the text-to-image knowledge into our self-supervised diffusion model, relieving the pressure of inpainting.

Towards the real application of animation, we further present a novel task: out-animation, which requires models to generate videos that extend the space and time dimensions of input objects (or selected parts of an image). We propose a two-stage pipeline: we first perform the image outpainting with the same denoising network to generate consistent and reasonable scenes for input objects according to their content and text prompts, and then sample the 3D videos via the trained self-supervised diffusion model. Experiments on novel view synthesis and image outpainting of real datasets validate the effectiveness of our method.

We summarize our contributions as follows:

• We propose a novel self-supervised diffusion model, which trains only on single images but can generate high-quality 3D photography videos.
• We propose MEB, a Masked Enhanced Block that leverages the unmasked image conditions for the denoising process of our diffusion model.
• We present a novel task: out-animation, and adapt the proposed diffusion models to the new task. Experiments on real datasets validate the effectiveness of our models.

2 RelatedWork

2.1 3D Photography

Multi-view methods. Many methods [Han et al., 2022; Hu et al., 2021; Lai et al., 2021; Rockwell et al., 2021; Li et al., 2021; Li and Kalantari, 2020; Wang et al., 2022a; Mildenhall et al., 2021] learn to predict the 3D representations (such as NeRf [Mildenhall et al., 2021], point clouds [Wiles et al., 2020], and MPIs [Tucker and Snavely, 2020] using multi-view supervision, so they assume many views such as related two views or multi-views can be used to train the models. [Tucker and Snavely, 2020] first applies the MPI representations from single image input and renders them to novel views, and then predicts the target views via multi-view supervision. SynSin [Wiles et al., 2020] proposes a novel point cloud renderer that transfers the latent 3D point cloud features into the target views, and rendered features are passed a refinement network to generate target predictions. To alleviate the lack of large-scale in-the-wild multiview datasets, AdaMPI [Han et al., 2022] trains an inpainting network via warp-back strategy to construct fake multi-view datasets and then trains an MPI-based model.

Single-view methods. Single-view methods [Tucker and Snavely, 2020; Shih et al., 2020; Jampani et al., 2021; Kopf et al., 2020; Niklaus et al., 2019] only require single view images with LDIs (Layered Depth Images) [Shih et al., 2020] representations. Most single-view methods estimate the dense monocular depths and fill in the predefined occluded regions. 3d photo [Shih et al., 2020] makes full use of the three inpainting modules that separately inpaint the edges, depth, and color images to predict the impressive novel views. SLIDE [Jampani et al., 2021] proposes a soft layering to separate an image into foregrounds and backgrounds, and then it prefers inpainting the color and depth of backgrounds, therefore, it better preserves the foreground details.

2.2 Image Synthesis

Text-conditional Image Synthesis

Text-to-image recently becomes popular due to the remarkable success of autoregressive models and diffusion models. Parti [Yu et al., 2022] and NUWA-Infinity [Wu et al., 2022] are two-stage approaches, which first compress an image into discretized latent space, and autoregressively predict discrete image tokens based on text tokens. Diffusion-based methods generate the images via a denoising network conditioned on text representations, such as DALL·E2 [Ramesh et al., 2022], Imagen [Saharia et al., 2022], and Stable-Diffusion [Rombach et al., 2022].

Semantic Image Synthesis

This task aims to create images from semantic segmentations, and the challenge is to generate better images in terms of visual fidelity and spatial alignment. SPADE [Park et al., 2019] is the most popular method to achieve promising images by easily introducing a spatially adaptive normalization layer. From this conditional normalization perspective, methods [Liu et al., 2019; Tan et al., 2021; Wang et al., 2021; Zhu et al., 2020] have designed more tailored ways to embed the semantic masks.

Recently, researchers also pay more attention to Image Inpainting and Image Outpainting. Inpainting aims to fill missing regions in images, while outpainting tries to extend the images. Some text-conditional image synthesis methods could directly adapt the outpainting or inpainting. StableDiffusion and DALL·E2 can be applied on both outpainting and inpainting tasks. The core of 3D photography is similar to image-inpainting, but inpaints the occluded regions for moved 3D target views. The MEB in our UNet is inspired by the various embedding ways of semantic masks, but we utilize the diffusion models rather than GAN-based models.

3 Methodology

In this paper, we propose a novel self-supervised diffusion model for learning 3D photography. We are the first to leverage the diffusion model for 3D photography, and the quality of novel views will benefit from the randomness continuously involved by noise at each step. We organize the rest of this section as follows: we first review the conditional diffusion models. Then, we present our self-supervised diffusion model. After that, we will present the out-animation task, and introduce our pipeline for achieving this task.

3.1 Preliminaries

We briefly review the theory of conditional diffusion models [Ho et al., 2020]. Conditional diffusion models are latent variable models that aim to learn the form of pθ(z0|c) while the conditional data follows q(z0|c), where c is the condition. The joint distribution pθ(z0:T |c) is called the reverse process, which is a Markov chain with learned Gaussian transitions starting at p(zT ) = N(zT ; 0, I), as shown below:

where t is an arbitrary timestep. The approximate posteriors q(z1:T |z0), called the forward process, is fixed as a Markov chain that gradually adds Gaussian noise to the data obeying a variance scheduler β1, . . . , βT :

We define αt := 1-βt and αt := ∏ts=1 αs. Then we sample zt at the timestep t in closed form as follows:

The conditional diffusion models are trained to minimize the variational lower bound (VLB), and the objective is equivalent to a denoising process as follows:

where Lt-1 is the loss function at the timestep t - 1, and ϵθ is the denoising network.

3.2 Self-supervised DiffusionModel

To address the lack of large-scale multi-view data and generate high-quality 3D videos, we present the self-supervised diffusion model. The two crucial parts of our model are the self-supervised strategy for denoising and the M-UNet (a modified UNet with several masked enhanced blocks).

Self-supervised strategy. Previous works [Li et al., 2022; Han et al., 2022] attempted to construct the training pairs from images, i.e., occluded images and ground-truth images, to get rid of the requirement for multi-view datasets. But they only trained the traditional inpainting models to inpaint the RGBD images, which are prone to predict inconsistent results in occluded regions. To this end, we take the best of the strong synthesis capability of the diffusion model to facilitate the high visual quality of these occluded regions.

Inspired by [Li et al., 2022], we use a cycle rendering way to achieve the self-supervised diffusion process in our model. The overall self-supervised denoising process is shown in Fig. 2 (a). The cycle rendering includes a forward rendering and a back rendering. Given an input image, we regard it as the i-th frame V i . In forward rendering, we first estimate the depth image Di by monocular depth estimation (such as [Ranftl et al., 2022]). Then, we randomly sample a nearby viewpoint, which is a virtual viewpoint with a relative camera pose T = [R|t], where R is the rotation matrix and t is the translation matrix. We render the frame V i to a pseudo next frame ˜ V i+1 at that virtual viewpoint as follows:

where W is the same 3D render process as [Liu et al., 2021]. In forward rendering, we can find some occluded regions deriving from the depth image ˜Di+1 , marked by ˜M i+1 , so we obtain the pair (˜ V i+1 , ˜M i+1 ) as shown in Fig. 2 (a). However, we do not have the ground truth of this frame. So, we render this occluded next frame back to the original viewpoint via a back rendering as follows:

where T -1 is the inverse camera pose, and mask ˜M i+1 is element-wise multiplied with the RGBD frame ( ˜ V i+1 , ˜Di+1 ), and then the render way is same as the forward rendering. After that, we can obtain a masked image with mask ( ˜˜ V i , ˜˜M i ) at the same viewpoint with original frame V i . These pairs {( ˜˜ V i , ˜˜M i ), V i } enable the diffusion model to inpaint the occluded regions only on single images by a selfsupervised way. We regard the masked images ˜˜ V i as image conditions, and the image V i is the ground truth of our diffusion model. We will encode the masked images to latent features, and input them into M-UNet with masks and text prompts as conditions. We encode the ground truth to latent features z0, and we add the noise to latent features as follows:

The noisy latent features zt are fed into M-UNet with the timestep t to predict the added noise ˆ ϵ. At every timestep, the denoising objective is the MSE loss between ˆ ϵ and ϵ.

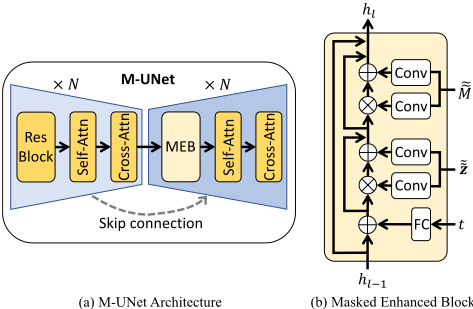

M-UNet. Based on UNet, we propose M-UNet with a set of Masked Enhanced Blocks (MEBs). Traditional inpainting networks struggle to predict consistency content for occluded regions, and one reason is that unmasked spatial information suffers loss in image-to-image networks, as well as the concatenation in diffusion models [Wang et al., 2022b]. The diffusion model is very flexible for receiving conditions, so we design a masked enhanced block to fully leverage the unmasked regions. As shown in Fig. 3 (a), we take the same architecture of UNet as in Stable-diffusion [Rombach et al., 2022], but we design several MEBs for the downblocks of the UNet, since image conditions would suffer less loss when embedded into downblocks [Wang et al., 2022b]. We utilize two stacked spatially normalization layers to embed the masked image features ˜˜zi and the mask ˜˜M i for enhancing the spatial information, and add the timestep t embedding as normal, as shown in Fig. 3 (b). We formulate the stacked spatially normalization layers as follows:

where the f i-1 and f i are the input and output features. γ(·) and β(·) are the convolution layers to map latent features or masks into high-level spatially-adaptive features and add them with input features. The enhancement denotes that the embedded mask further enhances the spatial information of unmasked regions. We add the skip-connection at the start of MEB, the start of the first embed layer, and the start of second embed layer, as shown in Fig. 3 (b), and hl-1 and hl are the input and output features of MEB. We insert the MEB into each downblock to fully leverage the image conditions. The stacked normalization layers are crucial parts of M-UNet, which performs better than other embedding ways.

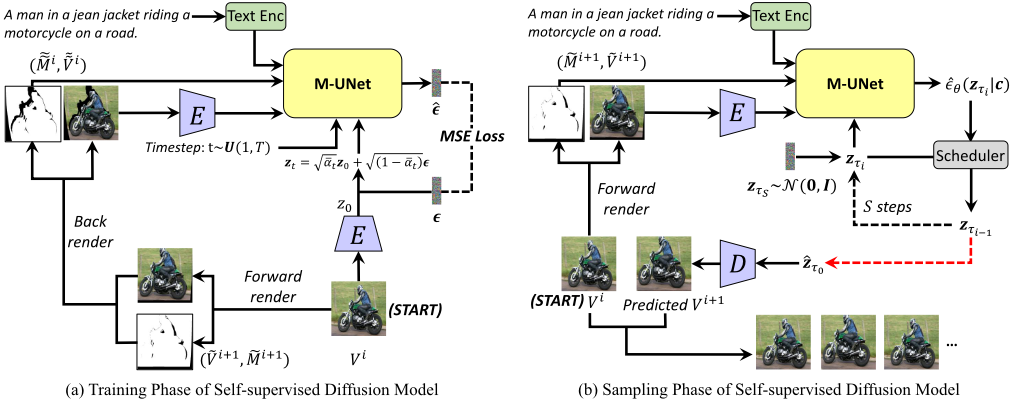

Training. The training process is shown in Fig. 2 (a). We denote the M-UNet as ϵθ, the noise added from Gaussian distribution as ϵ, the mask as ˜˜M i , and the occluded image features as ˜˜zi = E( ˜˜ V i ) encoded by KL-VAE encoder [Rombach et al., 2022]. The text prompt features are denoted as p encoded by CLIP text encoder [Radford et al., 2021]. We regard conditions of M-UNet as the set of c = { ˜˜M i , ˜˜zi , p}, and then we learn the conditional self-supervised diffusion model via:

with t uniformly sampled from {1, . . . , T}, ϵθ is optimized during training. To support the classifier-free guidance sampling, we randomly drop 10% text prompts during training.

Sampling. We use the classifier-free guidance for sampling videos with our diffusion model as shown in Fig. 2 (b). Given the ith frame V i , we first forward render it to obtain an occluded image and mask ( ˜ V i+1 , ˜M i+1 ). The occluded image is encoded to latent features ˜zi+1 . We use the blank text ∅ with the mask and occluded features as the extra conditions, and normal conditions c = { ˜M i+1 , ˜zi+1 , p} consists of the text prompt, the mask, and occluded image features. The guidance way in the sampling procedure can be formulated:

where s is the guidance scale. We sample the latent features on a subset {zτ0 , . . . , zτS }, where τ is an increasing sub-sequence of [0, . . . , T ] of length S + 1. We denoise each zτi to zτi-1 as follows:

This is known as the DDIM sampler. At the start of sampling, zτS is the pure Gaussian noise, after S steps, we obtain the predicted features ˆzτ0 as the red dotted arrow shows in Fig. 2 (b), and ˆzτ0 can be decoded to a predicted ˆ V i+1 frame with a single pass through KL-VAE decoder D. Then, we can randomly sample a 3D video iteratively.

3.3 Out-animation

Towards real-world animation, we propose a new task named Out-animation, which generates complete videos with reference to given input objects. The challenge is how to generate high-quality and diverse videos which contain the input objects and retain their inherent properties.

The definition of Out-animation is: Given input objects (or selected parts of an image), out-animation aims to extend input objects along both space and time dimensions and outputs an animated video.

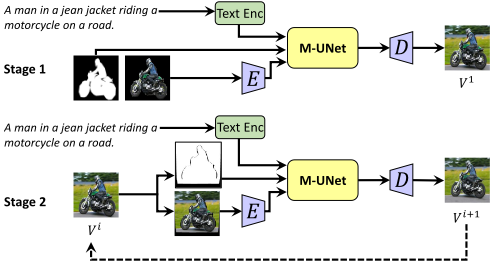

In this work, we present a simple two-stage pipeline. Our pipeline consists of two stages as shown in Fig. 4, and both only depend on the denoising M-UNet.

For stage-1, input objects may have arbitrary shapes. To generate desired complete images, we can train our diffusion model based on M-UNet to denoise input objects to the ground truth images. Training data can be collected from semantic segmentation datasets (such as COCO [Caesar et al., 2018]). Similar to our strategy for inpainting 3D photography, we regard source images as the ground truth and segmented objects and masks as image conditions. Also, text prompts are conditions for this diffusion model. For inference of a new scene, we input the masks, objects, and text prompts to the trained diffusion model. Then, after S steps denoising process, we can obtain the final latent features, and decode them to the first frame V 1 via KL-VAE decoder. The stage-2 pipeline regards results that came from stage-1 as the starting frame, and iteratively renders the current frame V i and then generates the next frame V i+1 as shown in Fig. 4.

Our method is different from the 3d photography methods [Shih et al., 2020; Jampani et al., 2021; Li et al., 2022] based on depth-inpainting, since we only utilize depth images in our rendering processes. We aim to leverage the diffusion model to predict better novel views, rather than training a complex model or extra model for depth-inpainting.

4 Experiments

For a fair comparison with state-of-the-art methods, we evaluate synthesis results on two datasets, RealEstate10k (RE10K) [Zhou et al., 2018] which provides about 10 million frames derived from about 80k video clips of static scenes, and MannequinChallenge (MC) [Li et al., 2019] with more than 170k frames derived from about 2k YouTube videos. To validate the effectiveness of our M-UNet, we also evaluate the image outpainting in COCO [Caesar et al., 2018].

Baselines and Metrics. For novel view synthesis, we quantitatively and qualitatively compared our method with recent state-of-the-art methods for which code is released: SynSin [Wiles et al., 2020], Single-image MPI (SMPI) [Tucker and Snavely, 2020], 3d-photo [Shih et al., 2020], and AdaMPI [Han et al., 2022]. In our experiments, we evaluate the released pretrained models. SynSin and SMPI models were trained on RealEstate10K. 3d-photo, AdaMPI, and ours were trained on COCO. For a fair comparison, 3d-photo, AdaMPI, and our method all use MiDaS [Ranftl et al., 2022] for depth estimation. SynSin and SMPI models are trained on RE10K, which randomly samples source and target frames from 57K training clips. Our model loaded the weights from Stable-diffusion, and only trained the 3D photography on COCO. We use the same intrinsic matrices, source camera poses and target camera poses for all methods. Following 3d-photo [Shih et al., 2020], we measure three metrics including LPIPS [Zhang et al., 2018], PSNR, and SSIM. For image outpainting, we quantitatively and qualitatively compared with the pretrained model SDM-v1.4 [Rombach et al., 2022] and the finetuned version on COCO by our implement. We measure the FID, IS, and CLIP-SIM of outpainted images with ground-truth images. Metric details can be found in the supplementary.

Quantitative Results on RealEstate10k. RealEstate10k (RE10K) [Zhou et al., 2018] is a video dataset consisting of 10K YouTube videos of static scenes. We randomly sample 1K video clips from test set for evaluation. We use the given camera intrinsics and extrinsics following RE10K. Specifically, we choose the first frame (t=1) from each test clip as the source view and consider the fifth (t=5) frame and tenth (t=10) frames as target views. We compute the evaluation metrics between predictions and ground-truth views. The results are shown in Tab. 1. We report our results of the trained model loaded from Stable-diffusion and the model only trained on COCO from scratch. 3d-photo and our method do not need video datasets and perform zero-shot on RE10K dataset because both are only trained on COCO. Compare with multi-view methods (SynSin and SMPI), our method outperforms SynSin on almost all results and shows better LPIPS than SMPI, indicating that we can achieve high realistic results than others. However, since we will generate new better content for occluded regions, the structural similarity with GT target views would slightly drop, but show better visual effects. Compared zero-shot performance with 3dphoto and AdaMPI, we perform better results than 3d-photo by a large margin and competitive results with AdaMPI.

Quantitative Results on MannequinChallenge (MC). MC is a video dataset of video clips of people freezing in diverse and natural poses, which is collected and processed similarly to RE10K. Similar to [Jampani et al., 2021], we randomly sample 200 video clips from the test set, and we choose the first frame (t=1) as the source view, and the third frame (t=3) and fifth frame (t=5) as target views. The results are shown in Tab. 2. Our method outperforms 3d-photo and SynSin on all results by a large margin. Our method achieved the best LPIPS and comparable results for PSNR and SSIM with SMPI and AdaMPI, indicating the best perceptual similarity and good structure similarity.

Quantitative Results on COCO. We filter COCO2017 [Caesar et al., 2018] to an outpainting dataset containing 117266 training images and 4952 test images, and details can be found in the supplementary. We evaluate the pretrained Stable-diffusion V1.4 (SDM), a finetuned model (SDM-FT) on COCO for the text-to-image task. And we finetune a model (w/ concat) via concatenation in the input layer. Evaluation results are shown in Tab. 3. SDM-FT achieves a better FID than SDM, but degrades on IS and CLIP-SIM. It is reasonable that the generated images from the finetuned model are closer to the original images, while the quality, diversity, and text relevance are slightly worse. Our model sig-

(a) Qualitative Results for 3D Photography on Benchmarks (RE10K, MC)

(b) Qualitative Results for Outpainting on COCO

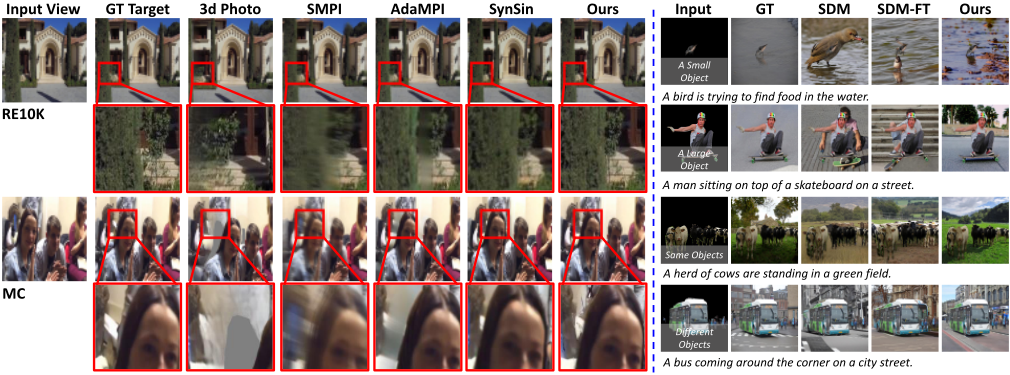

Figure 5: Qualitative results on benchmarks. (a) 3D Photography results, our method generates clear visual content and preserves details better than others. (b) Image Outpainting results, our method is able to handle various input objects and generate realistic images.

nificantly reduces the FID score to 10.65, and achieves better IS and CLIP-SIM than Stable-diffusion models. Without the pretrained weights, our model can still achieve better outpainting results than SDM on all metrics. We also compare with the cross fusion, introduced two learnable weights [Zhu et al., 2020] to embed masks, and a variant of our method without masks. Our embedding way shows better quality, diversity, and text relevance, and also shows the improvement by the enhancement of masks.

Qualitative Results. We qualitatively compare the novel view synthesis in RE10K and MC. In Fig. 5. (a), the goal is to generate a better target view given the input view when the camera moves. The first two rows show results on RE10K, and the second row shows the details in the same regions that need to be generated. Such as the right occlusion regions of trees, 3d-photo produces results with large visual distortions and other methods generate blurrier results, while our method generates the best realistic results and preserves the structures better. We show another sample in a more challenging benchmark MC in the last two rows. 3d-photo generates worse results with more artifacts and the wrong position, and other methods also generate blurrier results in occlusion regions, while our method generates clear content in these regions and preserves the clear details for other regions. We compare various outpainted sample results in COCO in Fig. 5. (b). We use the same captions to generate the scenes for all methods. Compared with SDM and SDM-FT, our method generates more consistent and high-fidelity results.

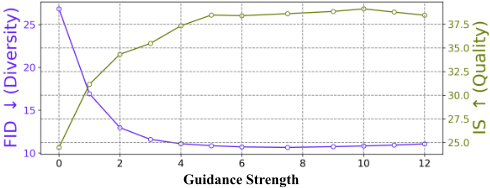

Model Analysis. We vary the guidance strength for outpainting task on COCO in Fig. 6. The experiment reveals that increasing guidance strength leads to improvements in both FID and IS. However, it also indicates that once guidance strength surpasses 7.5, the gains in both FID and IS become less significant. We compare the inference time for generating one frame in Table. 4. Our method shows significant improvement compared to 3d-photo and is comparable to other GAN-based methods. Tab. 4 illustrates a 20-step diffusion process. However, it is possible to improve the speed by sacrificing performance with fewer steps.

5 Conclusion

To reduce the train-inference gap in 3D photography training on single images, a novel self-supervised diffusion model is proposed that can generate high-quality 3D videos from single images. We first generate the masked regions that are closely aligned to real occluded regions in 3D rendering and then train a diffusion model with masked enhanced modules to inpaint these regions. Towards the real application of animation, we present the out-animation, which extends the space and time of input objects. Experimental results on real datasets validate the effectiveness of our method.
