Sequence Learning Using Equilibrium Propagation

1 Introduction

Equilibrium Propagation (EP) [Scellier and Bengio, 2017] is a biologically plausible learning algorithm to train artificial neural networks. It requires only one computational circuit and single type of network unit during the two phases of training, whereas backpropagation (BP) requires a specialised type of computation during the backward phase to explicitly propagate errors which is different from the computational circuitry needed during the forward phase, thus it is essentially considered to be biologically implausible [Crick, 1989]. In EP, errors are propagated implicitly in the energy based model through local perturbations being generated at the output layer, unlike in BP. Moreover, strong theoretical connections [Scellier and Bengio, 2019] between EP and recurrent BP [Almeida, 1990; Pineda, 1987] as well as the former's similarity regarding weight updates with spike-timing dependent plasticity (STDP) [Scellier and Bengio, 2017; Bi and Poo, 1998] (a feasible model to understand synaptic plasticity change in neurons) makes EP a solid foundation to further understand biological learning [Lillicrap et al., 2020]. Intrinsic properties of EP also provides the opportunity to design energy efficient implementations of the former on hardware unlike BP through time [Martin et al., 2021].

The idea that neurons collectively adjust themselves to configurations according to the sensory input being fed into a neural network system such that they can better predict the input data has been a popular hypothesis [Hinton, 2002; Berkes et al., 2011]. The collective neuron states can be interpreted as explanations of the input data. EP also consists of this central idea where the network, which is essentially a dynamical system following certain dynamics, converges to lower energy states which better explains the static input data.

In this paper, we have primarily discussed EP in a discrete time setting and used the scalar primitive function ϕ [Ernoult et al., 2019; Laborieux et al., 2021] to derive the transition dynamics instead of an energy function as used in the initial works [Scellier and Bengio, 2017]. Primarily, algorithms using EP have been designed for convergent RNNs [Laborieux et al., 2021] which are neural networks that take in a static input and through the recurrent dynamics (as governed by the transition function - scalar primitive function of the system in our case) converges to a steady state which denotes the prediction of the network for that input. Training using EP primarily comprises of two distinct phases. During the first phase i.e. the "free" phase, the network converges to a steady state following only the internal dynamics of the system. In contrast, in the second phase the output layer (which acts as the prediction after the "free" phase has converged) is "nudged" closer to the actual ground truth and the local perturbations resulting from that change propagates to the other layers of the convergent RNN, forming local error signals in time which matches the error propagation associated with BP through time [Ernoult et al., 2019]. The state updates and the consequent weight updates of the system can be done through local in space and time [Ernoult et al., 2019] computations, thus making learning algorithms using EP highly suitable for developing low-powered energy efficient neuromorphic implementations [Martin et al., 2021].

Hopfield networks were one of the earliest energy based models which were based on convergence to a steady state by minimizing an energy function which is an intrinsic attribute of the system. Hopfield networks were primarily used as associative memory, where we can store and retrieve patterns [Hopfield, 1982]. Classical hopfield networks were designed for storage and retrieval of binary patterns and the capacity of storage was limited since the energy function used was quadratic in nature. However, modern hopfield networks [Krotov and Hopfield, 2016; Krotov and Hopfield, 2018; Ramsauer et al., 2020] follow an exponential energy function for state transitions which allows storing exponential number of continuous patterns and allows for faster single step convergence [Demircigil et al., 2017] during retrieval. The modern hopfield layer has been used previously for sequenceattention in conventional deep learning models with BP as the learning framework [Widrich et al., 2020]. In this paper, we integrate the capability of modern hopfield networks as a transformer-like [Vaswani et al., 2017] attention mechanism inside a convergent RNN and consequently train the resulting model using the learning rules defined by EP.

2 Motivation and Primary Contributions

Until now, EP has been confined in the domain of image classification, the primary reason being the constraint associated with convergent RNNs which requires the input to be static. Developing an LSTM like network, which is fed with a timevarying sequence of data instead of static data, is not possible while maintaining the constraints of EP. Results obtained for tasks such as sentiment analysis or inference problems by feeding the entire input sequence as input also results in poor solutions since the dependencies between the different parts of the sequence cannot be captured in that technique. However, with recent developments in the domain of modern hopfield networks, we have the ability to extend the capability of algorithms using EP to perform efficient sequence classification.

Modern hopfield networks fit perfectly with convergent RNNs since both of them are energy-based models which are governed by their respective state transition dynamics. In a discrete time setting - which is primarily discussed in this paper - both of them follow a certain state transition rule at every time step which is governed by their defining energy function or a scalar primitive function in case of a convergent RNN. As we will see in later sections, the one step convergence guarantee of modern hopfield networks allows us to seamlessly interface them with a convergent RNN allowing both the networks to settle to their respective equilibrium states as the system converges as a whole.

Neuromorphic Motivation for EP: The bio-plausible local learning framework that EP provides can be best utilised in a neuromorphic system. Spiking implementation of the proposed method following the works of [Martin et al., 2021] allows for low-powered solution for real-time scenarios such as intrusion detection, real-time natural language processing (NLP), etc. Implementing EP in a neuromorphic system allows for orders of magnitude more energy savings than in GPUs and is more efficient because of its single computational circuit and STDP like weight updates.

Algorithmic and Theoretical contributions: The primary contributions of our paper are as follows -

• We explore for the first time how hopfield networks can operate with a convergent RNN model and how we can leverage the attention mechanism of the former to solve complex sequence classification problems using EP.
• We illustrate mathematically and empirically how to combine the state transition dynamics of both the hopfield network and underlying convergent RNN to converge to steady states during both phases of EP thus maintaining the latter's theoretical equivalence with recurrent BP w.r.t. gradient estimation.
• We report for the first time the performance of EP as a learning framework on widely known NLP tasks such as sentiment analysis (IMDB dataset) and natural language inference (NLI) problems (SNLI dataset) and compare the results with state-of-the-art architectures for which neuromorphic implementations can be developed.

3 Methods

In this section, we will formulate the workings of EP and its theoretical connections with backpropagation through time (BPTT). We will then delve into the details of the modern hopfield layer and demonstrate its attention mechanism. We will elaborate on the scalar primitive function defined for state transition and further investigate the metastable states that arises in modern hopfield networks and will discuss how we can leverage them to form efficient encoding of the input sequences for our sequence classification problems.

3.1 EquilibriumPropagation

EP applies to convergent RNNs whose input at each time step is static. The state of the network eventually settles to a steady-state following a state update rule that is derived from the scalar primitive function ϕ. Moreover, the weights defined between two layers are symmetric in nature i.e. if the weight between layers si and si+1 is wi, then the weight of the connection between si+1 and si is wT i . The state transition is defined as,

where, st = (s1t , s2t , . . . , snt ) is the collective state of the convergent RNN with n layers at time t, x is the input to the convergent RNN and θ represent the network parameters i.e. it comprises of the weights of each of the connections between layers. We do not consider any skip connection or selfconnection in the convergent RNNs discussed but there has been some work done in that area [Gammell et al., 2021].

The state transitions result in a final convergence to a steady state s∗ after time T , such that st = s∗ ∀t ≥ T and it satisfies the following condition,

Training of convergent RNNs using EP comprises mainly of two different phases. During the first phase or the "free" phase, the RNN follows the transition function as shown in Eq. (1) and eventually reaches the steady state defined as the free fixed point s∗ after T time steps. We use the output layer of the steady state s∗ i.e. sn∗ to make the prediction for the current input x. In the second phase or the "nudge" phase, an additional term-β ∂L ∂s is added to the state dynamics which immediately results in the state of the output layer being slightly nudged in the direction to minimize the loss function L (as defined between the target y and the output of the last layer of the convergent RNN). Though the internal states of the hidden layers are initially at the free fixed point state, they are eventually nudged to a different fixed point - weakly clamped fixed point sβ∗ - because of the perturbations initially originated at the output layer. β is a small scaling factor defined as the "influence parameter" or "clamping factor" i.e. it controls the influence of the loss on the actual primitive scalar function during the second phase.

Thus the initial state of the second phase is sβ0 = s∗ and the transition function is defined as,

Following Eq. (3), the convergent RNN settles to the steady state sβ∗ after K timesteps. After the two phases are done, the learning rule to update the model parameters in order to minimize the loss L∗ = L(s∗, y) is defined as, ∆θ = η∇EP θ (β), [Scellier and Bengio, 2017] where η is the learning rate and ∇EP θ (β) can be defined as,

The defined convergent RNN can also be trained by BPTT [Laborieux et al., 2021]. According to the property of Gradient-Descent Updates (GDU) [Ernoult et al., 2019], the gradient updates computed by the EP algorithm is approximately equal to the gradient computed by BPTT (∇BPTT (t)), according to relative mean squared error metric (RMSE), provided the convergent RNN has reached its steady state in T -K steps during the first phase and β → 0. Thus for initial K steps of the "nudge" phase we can state , ∀t = 1, 2, ..., K

In the traditional implementations of EP, two phases are involved, one with β = 0 i.e. the "free" phase and the other with β > 0 i.e. the "nudge" phase. In order to circumnavigate the first order bias that is induced into the system by assuming

β > 0, a new implementation of EP was proposed [Laborieux et al., 2021] which comprises of a second "nudge" phase with -β as the influence factor. Thus the algorithm comprises of three phases. The symmetric EP gradient estimates are thus free from first order bias and are more close to the values

computed using BPTT and is defined as,

3.2 Hopfield Network as AttentionMechanism

The recent developments in modern hopfield networks [Ramsauer et al., 2020] offers exponential storage capacity and one step retrieval of stored continuous patterns. The increased storage capacity and the attention-like state update rule of modern hopfield layers can be leveraged to retrieve complex representation of the stored patterns which consists of richer embedding similar to that of attention mechanism in transformers. In order to allow for continuous states, the energy function of the modern hopfield network is modified accordingly [Widrich et al., 2020], and it can be represented as,

where, X = (x1, x2, ...xN ) are N continuous stored patterns, ξ is the state pattern, M is the largest norm of all the stored patterns and β > 0. In general, the energy function of modern hopfield networks can be defined as, E = - ∑Ni=1 F(xTi ξ) [Krotov and Hopfield, 2016]. For example, if we use the function F(x) = x2 , we describe the classical hopfield network which had limitations in storage capacity and also supported only binary patterns. However, with the introduction of an exponential interaction function like log-sum-exponential (lse) function, the storage capacity can be increased exponentially while enabling continuous patterns to be stored. Using Concave-Convex-Procedure (CCCP) [Yuille and Rangarajan, 2001; Yuille and Rangarajan, 2003], the state update rule for the modern hopfield network [Ramsauer et al., 2020] can be defined as,

where, ξnew is the retrieved pattern from the hopfield network.

We can define Query (Q = RWQ) as ξT and Key (K = Y WK) as XT . Thus the new form can be represented as,

where, dk is the encoding dimension of Key (K). The above representation [Ramsauer et al., 2020] is to show the similarity of the update rule of modern hopfield networks and the attention mechanism in transformers involving Query-Key pairs. Q represents the state pattern whereas Qnew represents the state pattern retrieved after the transition. The projection matrices are defined as, WQ ∈ Rdr×dk and WK ∈ Rdy×dk .

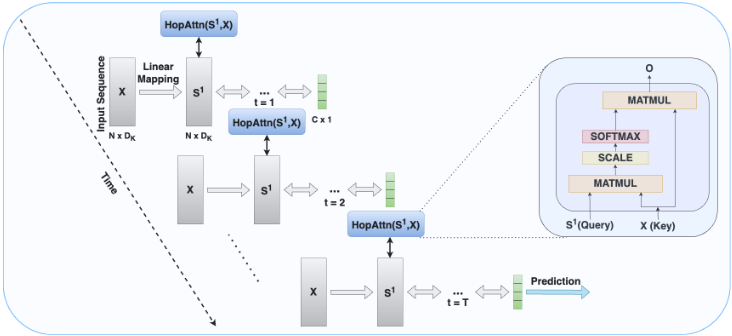

Following the state transition as defined in Eq. (10), the Hopfield Attention module can be defined as HopAttn(Q,K), which has two critical inputs, viz. the Query (Q) which can be interpreted as the state pattern and the Key (K) which can be considered as the stored pattern. The dimension of the hopfield space is dk. The underlying operations are illustrated in details in Fig. 1. The output of the HopAttn function is defined as,

HopAttn module plays a critical role in our network by providing an attention based embedding of the input sequence resulting from their convergence to metastable states at every time step. In order to form the Query (Q) for the HopAttn module, we define the layers connected to the input as projection layers (as demonstrated in Fig. 1) whose weight is analogous to WQ. At every timestep t during the state transitions in the convergent RNN, the recurrent dynamics of the convergent RNN computes the Query (Q) to be fed to the HopAttn module as illustrated in Eq. (14). The stored sequence of patterns K is fed directly into the HopAttn module.

There is a theoretical guarantee that the modern hopfield network converges to a steady state (with exponentially small separation) after a single update step [Ramsauer et al., 2020] and therefore we successfully navigate to a fixed point at every time step in EP. We project the HopAttn output through WV ∈ Rdk×dv , analogous to the weight of the output connection, to generate the final output. The HopAttn module thus provides a rich representation of the stored patterns which helps in efficient sequence classification.

3.3 Proposed Scalar Primitive function ϕ

The input to our model is the sequence of patterns, x ∈ RN×DK , where N is length of the sequence and DK is the encoding dimension of the pattern. The state of the system at time t is st = (s0t , s1t , s2t , . . . , snt ), where n is the number of layers in the convergent RNN. θ comprises the list of parameters of the network. The scalar primitive function (ϕ), which defines the state transition rules of the convergent RNN is,

where · represents Euclidean scalar product of two tensors with same dimensions, (x · w1) represents the linear projection of x through w1 ∈ RDK×DK and wi+1 is the weight of the connection between si and si+1 . The flattened output of the first projection layer (F(s1 ), where F is the flattening operation from (A,B) to (1,AB)), is then fed into the next of the n - 1 fully connected layers. In this section, we have primarily discussed ϕ for cases where we have only one input sequence like the sentiment analysis task. For multi-sequence tasks like NLI, we have described ϕ in the technical appendix.

3.4 Transition Dynamics and Convergence

Our methodology seamlessly interfaces modern hopfield networks with convergent RNNs, thus allowing sequence classification using EP. The state transition dynamics of the layers in the convergent RNN (except the last layer), where HopAttn is not applied, is given by the following,

where, σ is an activation function that restricts the range of the state variables to [0, 1]. However, for the layers where we apply the hopfield attention mechanism, the state transition function is updated as follows,

where, sjt+1 is the final state of the j th layer (with HopAttn applied) at time t+1 and K is the sequence of stored patterns in the hopfield network which is usually the input x to the network.

Thus for the layers where we apply attention, we first follow the transition function of the underlying convergent RNN as defined by ∂ϕ ∂sj (x, st, θ) and then we follow the update rule as derived from the modern dense hopfield network. Since convergence to a steady state is guaranteed after a single update step, there is no additional overhead for the hopfield network to converge and thus its state transition rule is only applied once.

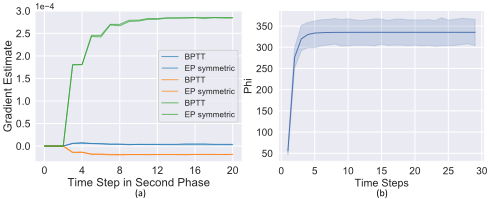

The metastable states, that the HopAttn module converges to after each timestep t, approach steady state w.r.t the convergent RNN during both the phases of training of EP. The claim for such concurrent convergence can be further substantiated empirically by analysing the convergence of the dynamics of the model, governed by the scalar primitive ϕ with time. It is evident from Fig. 2b that even after we apply the HopAttn module (like in Fig. 1), the model still converges to a steady state eventually. Moreover, even after the integration of HopAttn modules, the GDU property of the convergent RNN still holds, thus maintaining the equivalence w.r.t gradient estimation of EP and BPTT (Fig. 2a).

For the final layer, whose output is compared with the target label to calculate the loss function, the state update rule is defined as,

where, y is the target label and snt is the output of the final layer at time t. β = 0 during the "free phase" and the loss function L used in this case is mean squared error.

3.5 Metastable States as Attention Embeddings

The factor β, as defined in Eq. (9), plays an important role in establishing the fixed points in the modern hopfield network [Ramsauer et al., 2020]. The retrieved state pattern (or Qnew as defined above) settles to the defined fixed points following the state transition rule (Eq. (10)). However, if β is very high and/or the stored patterns are well separated, then we can easily retrieve the actual pattern stored in the hopfield networks. On the other hand, if β is low and the stored patterns are not all well separated but form cluster like structures in the encoding dimension of the patterns, then the hopfield network generates metastable states. Thus, when we try to retrieve using a particular state pattern i.e a Query, we might converge to a metastable point comprising of a richer representation combining a number of patterns in that region. For incorporating such attention like behavior, we need to keep β small and usually β = 1/√dk, where dk is the encoding dimension of the stored patterns.

3.6 Local State &Parameter Updates

The state update rule, as defined earlier, is essentially local in space since ∂ϕ ∂si (x, st, θ) ∀i = 2, ..., n - 1 can be written as,

and for the final layer the same can be shown as,

where all the associated parameters for the computation are locally connected in space and time. The computation required w.r.t the HopAttn module can also be done locally in space and time. For the first layer (projection layer), the local state and weight update property is still preserved: ∂ϕ ∂s1 (x, st, θ) = (x · w1) + F -1 (wT 2 · s2t ).

The STDP like parameter update rule of the network, as stated in the earlier section, is also local in space, i.e. we can compute the updated weights directly using the state of the connecting layers. In this paper, we have used three phase EP, thus we derive the weight update rule following Eq. (7),

where, si,β ∗ is the state of layer i after the first "nudge" phase with influence parameter β and si,-β ∗ is the state of layer i after the second "nudge" phase with influence parameter -β.

The detailed final algorithm and calculations are added in the technical appendix. It is further validated through the experiments reported in the next section that as we continue updating the states st (following the update rules governed by the primitive function (ϕ) and the energy function for the modern hopfield network), we reach steady states during both the "free" and "nudge" phases of EP. Thus, following the weight update procedure of EP, we can update the weights through local-in-space update rules. This enables us to develop state-of-the-art architectures for sentiment analysis and inference problems - potentially implementable in energy efficient neuromorphic systems.

3.7 Neuromorphic Viewpoint

Implementating EP in a neuromorphic setting reduces the energy consumption by two orders of magnitude during training and three orders during inference compared to GPUs [Martin et al., 2021]. Moreover, EP does not suffer from the non-differentiability of the spiking nonlinearity that BPTT algorithms encounter since we do not explicitly compute the error-gradient. In EP, because of the local operations and the error-propagation being spread across time, the memory overhead is also much lower compared to BPTT methods where we need to store the computational graph.

4 Experiments

Since EP is still in a nascent stage, this is the first work to report the performance of convergent RNNs that are trained using EP on the specified datasets for the task of sequence classification. In the experiments reported in this section, we focus on benchmarking with models that are trained using BP such as LSTMs, GRUs, etc. that can be potentially implemented in a neuromorphic setting. Unlike the used baselines, since existing attention models (transformers) trained using BP are not directly applicable in a neuromorphic setting; we have not compared our model with them. In the following sub-sections, we define specific architectures for different subtasks in NLP. For testing our proposed work on sentiment analysis problems, we chose the IMDB Dataset and for NLI problems, we chose the Stanford Natural Language Inference (SNLI) dataset. Though we have not tested our method on all the tasks in GLUE [Wang et al., 2018], the proposed method can perform classification after applying simple task-specific adjustments to the model. Details regarding coding platform and hardware used for training have been added to the technical appendix.

4.1 Sentiment Analysis

We have used IMDB dataset [Maas et al., 2011] to demonstrate the application of our model on sentiment analysis tasks. IMDB dataset comprises of 50K reviews, 25K for training and 25K for testing. Each of the reviews are either classified as positive or negative.

Architecture

300D word2vec embeddings [Mikolov et al., 2013] are used for generating the word embeddings that are then fed into the convergent RNN and the maximum sequence length is restricted to 600. The convergent RNN used for this experiment comprises of two fully connected hidden layers on top of the first projection layer. We have a single attention module applied to the first layer similar to Fig. 1.

Results

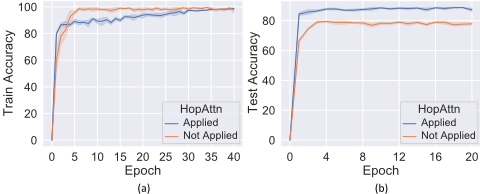

The results (Table 1) from our model are the first to report performance on any sentiment analysis task using EP. The experimental details are shown in Table 2.

In order to study the advantage of using hopfield networks as an attention mechanism, we compare the accuracy achieved using our model against a vanilla implementation of EP on a convergent RNN with same depth but without any HopAttn modules and we see that our proposed model outperforms with a big margin ( > 9%). The computational cost increases by only 17% when we use the HopAttn module. The case where hopfield attention modules were not used seems to converge early during training, thereby resulting in over-fitting. However, as is evident from Fig. 3, usage of modern hopfield networks results in better generalization.

4.2 Natural Language Inference (NLI) Problems

We have used SNLI [Bowman et al., 2015] dataset to evaluate our model on NLI tasks. NLI generally deals with the classification of a pair of sentences namely, a premise and a hypothesis. A model, given both the sentences, is able to predict whether the relationship between the two sentences signify an entailment, contradiction or if they are neutral. SNLI dataset comprises of 570K pairs of premises and hypotheses.

Architecture

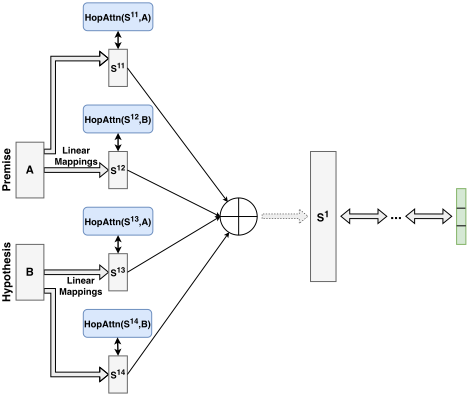

The premise and the hypothesis are encoded as a sequence of 300D word2vec word embeddings [Mikolov et al., 2013] with max sequence length of 25. The hopfield attention modules are used as specified in Fig. 4. The architecture defined for this problem is inspired from the decomposable attention model [Parikh et al., 2016]. We denote the premise as A = (a1, a2, ..., am) and hypothesis as B = (b1, b2, ..., bn), where ai, bj ∈ Rd , d is the dimensionality of the word vector and m and n are the length of the sequences of the premise and hypothesis. We compute the new vectors A′ = HopAttn(s11 ,A) and B′ = HopAttn(s14 ,B), where s11 and s14 are values of the layers as shown in Fig. 4. These two vectors represent self-attention within A and B respectively. We compute two other vectors, α = HopAttn(s13 , A) which encode the soft alignment of premise with the hypothesis B and β = HopAttn(s12 ,B) which represents the soft alignment of hypothesis with the premise A, where s13 and s12 are values of the layers (see Fig. 4). We then concatenate all the sequences and feed them to the next layer (see Fig. 4).

Results

The results obtained by our model (Table 1) are compared with other models trained using BP reported in literature that can be potentially implemented in a neuromorphic setting. The results from our model are the first to report performance on any NLI task using EP as a learning framework. The experimental details are shown in Table 3.

5 Conclusion

The ability to think of neural networks as a dynamical system helps to further deepen our understanding regarding learning frameworks and intrigues us to delve deeper into the learning processes inside the brain. In this paper, we explore the application of EP as a learning framework in convergent RNNs integrated with modern hopfield networks to solve sequence classification problems. We report for the first time the performance of EP on datasets such as IMDB and SNLI. The constraint of EP requiring static input to the convergent RNNs makes it really difficult to train on datasets with sequence of data, thus an attention-like-mechanism provided by modern hopfield networks is ideal to encode the long-term dependencies in the sequence. The spatially (and potentially temporal) local weight update feature of EP still holds even after introducing the modern hopfield networks and therefore it can be easily converted into a neuromorphic implementation following the works of [Martin et al., 2021].

Certain unexplored areas in the paper can be investigated in the future. Firstly, due to limitations of EP, we employed fixed word-embeddings instead of learnableembeddings used in sophisticated language models. Thus circumnavigating that challenge to achieve even better accuracy can be an interesting problem. Secondly, another intrinsic restriction of the convergent RNN model used in the experiments is that the weights of the connections needs to be symmetric. In order to make the model more bio-plausible with asymmetric connections, the Vector Field [Scellier et al., 2018] can be further explored. Finally, although storing small sequence lengths like that of SNLI is not a big concern, the memory overhead increases with increased sequence sizes like that of IMDB dataset. Thus a future endeavor can be made to modify EP such that it supports time-varying inputs.

Acknowledgments

This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Advanced Scientific Computing Research, under Award Number #DE-SC0021562 and the National Science Foundation grant CCF #1955815.
