A Logic-Based Approach to Causal Discovery: Signal Temporal Logic Perspective

1 Introduction

In the realm of causal inference, learning the true underlying causal diagram using observational data is referred to as causal discovery. Information-theoretic causal discovery infers causal relations using entropy-based measures. Information theory provides measures such as entropy [Duan et al., 2015; Yang et al., 2024], mutual information [Hao et al., 2015], and conditional mutual information [Runge, 2018], which can be employed to infer causal relationships. It applies to both static and time-series datasets. For example, [Shimizu et al., 2006] proposes a causal discovery approach that relies on independent component analysis and does not require any pre-specified time-ordering of the variables.

The current causal discovery approaches mostly ignore the temporal aspect of the causal knowledge. For example, in certain time-series datasets, there might be some dominant cause-and-effect relationships among the variables where the effectiveness of the casual relationship depends on the duration of the cause. Consider, for instance, the scenario where the drug for four consecutive days. Such temporal patterns can be expressed through signal temporal logic (STL) formulas, a variant of temporal logic designed for real-valued variables. STL formulas strike a balance by being both humaninterpretable and adhering to the precision of formal logics [Baharisangari et al., 2022]. This enriches causal understanding when time critically shapes cause-effect dynamics.

Contribution: In this work, we present a framework for learning signal-temporal-logic-based causal diagrams (Signal Temporal Logic-based Causal Diagram (STL-CD)) from observational time-series datasets. (1) We define signaltemporal-logic-based causality in which we introduce STLCDs and temporal precedence for STL formulas. (2) We present a novel algorithm for extracting time intervals with statistically meaningful trends in the given time-series dataset. (3) We present an algorithm for inferring STL formulas in the extracted time intervals such that they are sufficiently satisfied and violated by the trajectories in a given dataset. In this way, we can use information-theory-based methods such as transfer entropy to determine causal relationships among the STL formulas. (4) Finally, we introduce an algorithm for constructing STL-CDs using the inferred formulas. We apply the proposed framework on a car transmitter case study and a drug administration case study and compare the results with three baselines. To the best of our knowledge, this is the first work proposing a framework for signaltemporal-logic-based causal discovery.

1.1 RelatedWork

Causal discovery on time-series datasets has been extensively studied using constraint-based, score-based, and informationtheoretic approaches. We focus on the latter in this work. Duan et al. [Duan et al., 2015] introduced transfer 0entropy (T0E) for causality analysis based on 0-entropy and 0-information, explicitly considering temporal aspects. Zhou et al. [Zhou et al., 2022] proposed matrix-based conditional and high-order transfer entropy (CTEM, HTEM) for timeseries causal discovery. Assad et al. [Assaad et al., 2022] developed a framework for learning causal graphs from data with varying sampling rates. Su et al.

This work addresses a key gap in existing methods: the disregard of duration and logical relationships among variables. We introduce the first data-driven framework for learning Signal Temporal Logic-based Causal Diagrams (STL-CDs)

from time-series data. While prior studies, e.g., [Kleinberg and Mishra, 2009; Kleinberg, 2011], explored integrating temporal logic and causality, they do not construct temporallogic-based diagrams from data. Sun et al. [Sun et al., 2015] proposed a model-free causation entropy method to overcome the pairwise limitations of transfer entropy. While we employ transfer entropy to highlight STL-CD's capabilities, our framework is flexible and can integrate alternative metrics such as causation entropy.

2 Preliminaries

2.1 (F,G)-Fragment Signal Temporal Logic

In this section, we briefly review (F, G)-fragment signal temporal logic ((F,G)-STL). First, we define trajectory.

Definition 1. Given an D-dimensional domain Y ⊂ RD and the finite discrete time domain I = {0, 1, . . . , T - 1}, we define a finite trajectory as a function ξ : I → Y. We denote the length of the trajectory ξ by T. For a given labelled set of trajectories D = {ξi, gi}Ni=1 , we use ξi,d to denote the d-th dimension of the i-th trajectory. Here, gi = +1 represents the desired behavior and gi = -1 represents the undesired behavior of the underlying system.

(F,G)-STL is a form of signal temporal logic that only incorporates the temporal operators F and G. The syntax of (F,G)-STL is defined recursively as follows.

where ⊤ stands for the Boolean constant True, π is an atomic predicate in the form of an inequality f(ξ) > 0 with f being some real-valued function and π ∈ P with P = {π1, π2, ..., πn} is a finite set of atomic predicates with n ∈ N = {1, 2, ...}. ¬ (negation), ∧ (conjunction), ∨ (disjunction) are standard Boolean connectives, "F" and "G" represent "eventually" and "always" temporal operators, respectively. In time interval [a, b], we have a ≤ b, and they are non-integers. We also define L(ϕ) ∈ B = {0, 1} as a Boolean random variable for the truth value of the formula ϕ. The randomness of L(ϕ) stems from the fact we can use any random trajectory to evaluate the truth value of ϕ.

Definition 2. The Boolean semantics of an (F,G)-STL formula ϕ, for a trajectory ξ with the time length of T at timestep t is defined recursively as follows.

Robust semantics quantifies the margin at which a certain trajectory satisfies or violates an STL formula ϕ at time-step t. The robustness margin of a trajectory ξ with respect to an STL formula ϕ at time-step t is given by r(ξ, ϕ, t), where r(ξ, ϕ, t) can be calculated recursively via the robust semantics [Fainekos and Pappas, 2009]. For simplicity, we use STL to refer to (F,G)-STL hereafter.

2.2 Information-Theory-Based Causal Discovery

In this section, we review the basics of information theory and its based method. Consider various events each with a probability of occurring denoted by p1, p2, . . . , pn, the entropy aiming to measure the uncertainty of information is defined as H = - ∑1≤i≤n pi log pi. When targeting two variables, the joint entropy is given.

Except for joint entropy facing the bi-variate situation, the Transfer Entropy (TE), first proposed by Schreiber [Schreiber, 2000], measures directed information flows between variables with the minimum knowledge of system's dynamic [Mao and Shang, 2017]. We define TE from Y to X as follows.

where δ denotes the time delay, aiming to eliminate uncertainty decreased by the past of X.

3 Signal-Temporal-Logic-Based Causality

In this section, we introduce signal-temporal-logic-based causality (STL-CD) for STL formulas. We define STL-CD as follows.

Definition 3. For a given set of predicates P, STL-CD is a directed acyclic graph G where (1) each node represents an STL formula over P, and (2) each edge ( ) represents a causal link between two nodes.

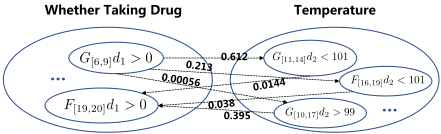

Figure 1 represents two examples of STL-CDs with STL formulas as nodes. In STL-CDs in Figure 1, each pair of STL formulas is connectedwith a causal link ϕi ϕj, where ϕi is the cause and ϕj is the effect. STL-CD is an extension of the temporal-logic-based causal diagram (TL-CD) introduced in [Paliwal et al., 2023] 1 where the differences are as follows. (1) TL-CD uses linear temporal logic formulas as nodes in the DAG while STL-CD uses STL formulas. (2) STL-CD is non-deterministic while TL-CD is deterministic.

For a given STL-CD, if we evaluate the truth values of the STL formulas on the nodes of the STL-CD using a given trajectory ξ and replace the STL formulas with their corresponding truth values, then STL-CD is reduced to the standard causal diagram defined in Pearl causality [Pearl, 2009].

1 [Paliwal et al., 2023] is related to reinforcement learning, and it is assumed that the causal diagram is given while we discover it in our work.

For a STL-CD to be casually sound, we impose that the occurrence of the cause ϕi must precede that of the effect ϕj . In order to formalize this requirement, we first define worst-case satisfaction time ws(ϕ), the worst-case violation time wv(ϕ), the best-case satisfaction time bs(ϕ) and the best-case violation time bv(ϕ) of an STL formula.

Definition 4. The worst-case satisfaction time ws(ϕ) (resp. worst-case violation wv(ϕ)) is the maximum timesteps required to satisfy (resp. violate) the STL formulas ϕ using a trajectory ρ. The best-case satisfaction time bs(ϕ) (resp. best-case violation bv(ϕ)) is the minimum timesteps required to satisfy (resp. violate) the STL formulas ϕ. The formulas to inductively calculate these parameters are shown in Table 1.

Now, we formalize the precedence between the cause formula ϕi and the effect formula ϕj as follows.

Definition 5. (Temporal Precedence of STL Formulas) We define that the STL formula ϕi precedes the STL formula ϕj if max{wv(ϕi), ws(ϕi)} < min{bv(ϕj ), bs(ϕj )}.

Example 1. Suppose we have a drug that is administered to a patient, and we are interested in monitoring the effect of the drug on the patient's temperature. We can express this scenario using STL formulas. Our observations show that the patients who took the drug for four consecutive days eventually experienced temperature drops in the next two days. This observation can be expressed as G[0,3](taking the drug) F[4,5](patient's fever stops) as shown in Fig. 1 (Left).

4 Signal-Temporal-Logic-Based Causal Discovery

In this section, we explain signal-temporal-logic-based causal discovery for a given time-series dataset D. When dealing with a time-series dataset, the degree of causal influence among the attributes of the given dataset might vary at different time windows due to different factors. Hence, it is important to find the time intervals that might give us statistically meaningful information [Bryhn and Dimberg, 2011].

In this section, we first extract a set of time intervals T exhibiting statistically meaningful trends (Alg.1). For each dimension in D, we then infer STL formulas over all intervals in T (Alg.2) and construct the STL-CD using these formulas (Alg. 3).

We use a time-series dataset D with T time steps, consisting of disjoint sets of positive trajectories Dpos (N pos samples) and negative trajectories Dneg (N neg samples). Positive trajectories exhibit desired system behavior, while negative trajectories represent undesired behaviors.

We infer STL formulas to classify positive and negative trajectories. The resulting STL-CD encodes one possible set of structural temporal causal relationships. By focusing on formulas that characterize desired behaviors, we obtain insights into the system dynamics. Further, instead of building the STL-CD directly from logical implications, we infer candidate formulas and identify causal relationships among them using transfer entropy. This guarantees that the final STL-CD represents only the strongest causal influences.

Example 2. In the drug-administration example, the desired behavior represented by positive trajectories in Dpos can be when the patient's fever eventually stops. The undesired behavior which is represented by negative trajectories in Dneg can be when the patient has a fever at all times.

The proposed framework does not use typical assumptions in causal discovery such as linearity, conditional independence, causal sufficiency, causal faithfulness, and nonGaussianity since transfer entropy does not consider these assumptions [Lizier et al., 2020; Vicente et al., 2011; Barnett and Barrett, 2019]. Also, the proposed framework first converts the original time-series dataset into the Boolean dataset by evaluating the truth values of STL formulas to calculate the necessary probability density functions for entropy calculation.

4.1 Extracting Time Intervals with Statistically Meaningful Trends

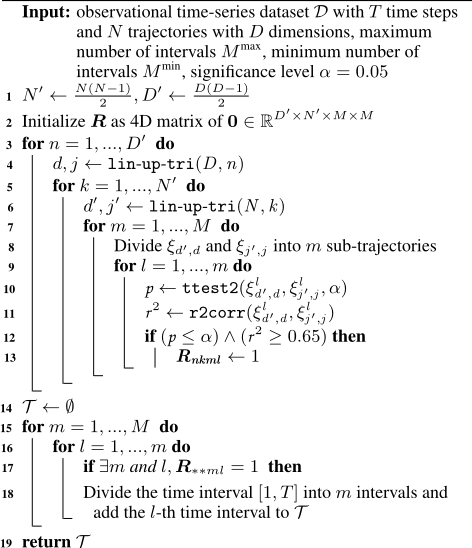

Alg. 1 illustrates the steps we take to extract time intervals with statistically meaningful trends. We first take the following two steps to define statistically meaningful trends. (1) Given two trajectories ξ1 with a 1D state x and ξ2 with a 1D state y both with the length of T, we divide ξ1 and ξ2 into M sub-trajectories. (2) For each pair of sub-trajectories, we calculate the correlation value r 2 (Eq. (3)) and p-value between the values of x and y where the p-value is obtained by the two-sample Student's t statistic. In Eq. (3), T ′ is the length of an arbitrary sub-trajectory. Then, we define statistically meaningful trend between ξ1 and ξ2 as follows. "If one or several pairs of sub-trajectories yield r 2 ≥ 0.65 and p-value ≤ 0.05, then a linear regression between trajectories ξ1 and ξ2 is deemed statistically meaningful".

In Alg. 1, we apply this definition to extract the time intervals in which there are statistically meaningful trends between every two dimensions of a given dataset For a given dataset D with D dimensions (attributes) and N trajectories, we check for the existence of a statistically meaningful trend for every two different dimensions in all the trajectories (Lines 3-13). In doing so, we use the linear index of an upper triangular matrix to loop over the elements of the upper triangular matrix. We use this indexing to loop over all the unique pairs dimensions d, j ∈ {1, ..,D} (where d ̸= j ) for all the trajectories in D. For a square matrix with D rows, the number of upper triangular elements is equal to D′ = D(D-1) 2 . For an arbitrary linear index n ∈ {1, ...D′ }, we find the corresponding row index d ∈ {1, ...,D} and column index j ∈ {1, ...,D}.

In Alg. 1, D′ and N ′ are the numbers of elements of upper triangular matrices with D rows (number of dimensions in D) and N rows (number of trajectories in D) , respectively

Table 1: The equations for calculating the worst satisfaction time ws(ϕ), worst violation time wv(ϕ), best satisfaction time bs(ϕ). and best violation time bv(ϕ) of an STL formula ϕ (Definition 4).

(Line 1). In Line 2, we initialize a 4D matrix of zeros denoted by R ∈ RD′×N ′×M×M where M = M max -M min +1 and M max and M min are the given minimum and maximum number of intervals that we use to divide the trajectories into m ∈ {M min , ...,M max} sub-trajectories. We use R to track the time intervals in which an arbitrary pair of dimensions meet the requirements of statistically meaningful trends. For a given number of intervals m and ξd′ ,d, we denote the m-th sub-trajectory at dimension d by ξm d′ ,d . Alg. 1 loops over the unique pairs of dimensions d and j with d ̸= j (Lines 3-13) to extract the desired time intervals with statistically meaningful trends. In Lines 4 and 6, function lin-up-itri() calculates the corresponding row and column indices for upper triangular matrices with D′ and N ′ elements, respectively.

In Lines 7-13, Alg. 1 divides a given pair of trajectories ξd′ ,d and ξj ′ ,j into m ∈ {M min , ...,M max} sub-trajectories (Line 8), respectively. Then, Alg. 1 calculates the p-value p (Line 10) and correlation value r using Eq. (3) (Line 11) between ξm d′ ,d and ξm j ′ ,j and sets the element with the indices n,m, k, and l of R to 1 if the requirements of the statistically meaningful trends are met (Line 13). l ≤ m is the index we use to loop over the sub-trajectories created by dividing ξd′ ,d into m sub-trajectories. In Lines 15-18, Alg. 1 extracts all the unique time intervals in which there is a statistically meaningful trend. In Line 17 of Alg. 1, R∗∗ml refers to the indices m and l of all the rows and columns in R. In Line 17, Alg. 1 extracts the time intervals with statistically meaningful trends after dividing the time interval [1, T] into m sub-intervals ∀m ∈ {M min , ...,M max}. Alg. 1 is designed for trajectories with two or more dimensions, but it can be simplified to work for 1D trajectories as well.

4.2 Signal Temporal Logic Inference

In this paper, we modify the STL inference method proposed in [Kong et al., 2014] to infer STL formulas for a given dimension and time interval such that they are sufficiently satisfied and violated by trajectories in D. Here, an optimizationbased algorithm is used for inferring an STL formula ϕ from dataset D for a given dimension and time interval such that the inferred formula discriminates between the desired behavior and the undesired behavior of an underlying system at the given dimension and time interval. This optimization-based algorithm infers (1) the structure of ϕ including the temporal operators and Boolean connectives, and (2) the predicates such that he following objective function is minimized.

where ϕstr is a candidate inferred STL structure, v is a candidate set of values to be used in the predicates in ϕstr, r is the robustness degree, ϕv,τ is the resulting STL formula after substituting the predicates in v and the time interval τ into ϕstr, λ is a weighting parameter, ∥ϕv∥ is the number of predicates in ϕv, and Loss is a loss function.

Example 3. In the drug administration example, for dimension d2 ∈ {d1, d2} where d1 represents taking the drug and d2 represents the temperature of the patient, ϕstr := F[?1 ,?2 ](ξ∗,1 >?3 ), v = {100}, and τ = [4, 5], ϕv,τ can be written as ϕv := F[4,5](ξ∗,2 < 100) where ξ∗,2 denotes an arbitrary trajectory at dimension d2. Here, we use "?" to denote an arbitrary unknown parameter including the value in a predicate or a bound in a time interval.

Alg. 2 illustrates the steps we take to infer STL formulas for all the time intervals in T for each dimension d in D. In Line 4, Alg. 2 randomly chooses N1 ≤ N pos trajectories from Dpos to form D1 and randomly chooses N2 ≤ N neg trajectories fromDneg to formD2. In Line 5, we cut the time interval τ out of the trajectories in D1 and D2 and form new trajectories with the length of |τ| and form Dred 1 and Dred 2 , respectively. At Line 6, we infer an STL formula ϕ′ using Dred 1 and Dred 2 at time interval [0, |τ|] such that the objective function (4) is minimized at time step t = 0. Then, at Line 7, we map the time interval [0, |τ |] to the original time interval τ and form ϕ. The purpose of Lines 4-7 is to infer STL formulas that are sufficiently satisfied and violated by the trajectories in D. Alg. 2 returns the sets Φ1, ...,ΦD each containing |T | STL formulas where |T | is the number of time intervals in |T |.

Example 4. Given τ = [2, 4], a positive 1D trajectory ξ1 := 1, 1, 2, 2, 2, a negative 1D trajectory ξ2 := -1,-1,-2,-2,-2. In Line 5 of Alg. 2, the function traj-reduced(ξ1 , ξ2 , τ ) return ξ red 1 := 2, 2, 2 and ξ red 2 := -2,-2,-2. In Line 6, Infer-Formula(ξ red 1 , ξ red 2 , [0, 2], 1) returns ϕ′ := G[0,2](d1 > 0) and map-time(ϕ′ , τ) in Line 7 returns ϕ := G[2,4](d1 > 0).

4.3 Constructing STL-CD

In this subsection, we introduce the algorithm we use to construct STL-CD using the STL formulas inferred in Subsection 4.2. Alg. 3 illustrates the steps we take to construct an STLCD G for given sets of STL formulas Φ1, ...,ΦD. At Line 1, we initialize a D × D matrix denoted by Dir to track the values that determine causal directions among STL formulas that are used on the nodes of the obtained STL-CD. We utilize RatioTE to evaluate the causal effect from ϕ and θ defined as RatioTEϕ,θ = TEϕ,θ H(L(θ),L(ϕ)) where TEϕ,θ is the transfer entropy between two random variables L(θ) and L(ϕ) (Eq. (2)) and H(L(θ),L(ϕ)) is the joint entropy between these two random variables (Eq. (1)). The reason we add Ratio but not simply TE is that the entropy of different STL formulas inferred is different. For calculating RatioTE for two different STL formulas ϕ and θ denoted by RatioTEϕ,θ, we generate the Boolean datasets Dbool ϕ and Dbool θ by evaluating the truth values of ϕ and θ using D and calculate RatioTEϕ,θ using these Boolean datasets. For each two dimensions d, j ∈ {1, ...,D} and d ̸= j, we initialize a |T |×|T | matrix denoted by RatioTEMat (Line 4) to store the RatioTEϕ,θ values between each two formulas ϕ ∈ Φd and θ ∈ Φj (Line 16). We only calculate the RatioTE between each two ϕ and θ that satisfy the temporal precedence constraint (Line 12).

To fill the elements in RatioTEMat, we calculate RatioTEϕ,θ using each trajectory ξ ∈ D and then choose the maximum value (Line 16). In Lines 14-15, we calculate RatioTEϕ,θ using ξ bool,ϕ i and ξ bool,θ i forall i ∈ {1, ...,N} where ξ bool,ϕ i is the Boolean 1D trajectory with T time-steps obtained by evaluating the truth values of ϕ using ξi at timesteps t ∈ {0, ..., T - 1}. At Line 17, Alg. 3 fills the Dirdj with the summation of all the RatioTE values in RatioTEMat as the determinant of the causal direction between dimension d and j. In this way, we consider the cumulative RatioTE values of all |T | formulas that we have inferred for each dimension d. At Lines 18 and 19, we extract the best pair of formulas for dimensions d and j with the corresponding RatioTE value. In Line 20, we calculate the causal effect difference between dimension d and j and store it in IndiMat. Finally, in Lines 21-28, we add a causal link from dimension d to j if IndiaMatdj > 0, else we add a causal link from dimension j to d.

For a given pair of dimensions j and d, Alg. 3 returns the pair of formulas ϕd and θj that has the highest RatioTEϕ,θ along with the causal direction. If we have ϕd θj, then it is possible that the time interval of ϕd does not start from 0. The reason is that many of the statistically meaningful time intervals that Alg. 1 returns do not start from 0. For having pairs of formulas that are meaningful when converted to natural language, Alg. 3 maps the time intervals of ϕd and θj such that the time interval of ϕd starts from 0 (Lines 24 and 27). When the formulas are fixed, the direction obtained by transfer entropy converges to the ground truth causal direction as the amount of data increases.

Example 5. Assume for the Ex. 1, Alg. 3 returns G[4,7](taking the drug) F[8,9](patient's fever stops) for a set of trajectories with length T = 20. We map the time intervals in these formulas such that G[4,7] starts from zero and we obtain G[0,3](taking the drug) F[4,5](patient's fever stops) which yields a meaningful natural language translation.

5 Evaluation

We have applied the framework to both the synthesis and realworld vehicular sensory data sets. The former is constructed through simulation equations, while the latter is collected through vehicle onboard vehicular sensors on Controller Area Network (CAN) by reversing engineering the specification of the CAN protocol [Ruan et al., 2025]. We also performed comparisons with the main causal discovery algorithms as follows:

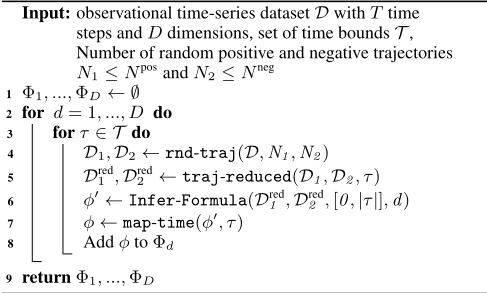

Algorithm 2: Inferring (F,G)-STL formulas

• Temporal Causal Discovery Framework (TCDF) [Nauta et al., 2019] targets discovering non-linear causal relations between time series using deep learning networks with an attention mechanism within a dilated depthwise convolutional network.
• Multivariate Granger Causality (MVGC) [Barnett and Seth, 2014] is the representative methods for discovering Granger Causality using the vector autoregressive model.
• Symbolic Transfer Entropy [Staniek and Lehnertz, 2008] utilizes technique of symbolization to calculate transfer entropy getting rid of difficulties within probability estimation on non-stationary time-series.

In the results, the red arrow represents the wrong causal direction and the black arrow represents the correct one.

5.1 Drug-Administration Case Study

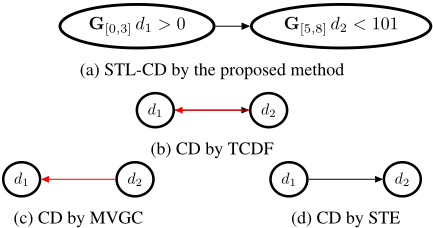

In this subsection, we apply the proposed method to a drug-administration case study where we use synthetic data where the ground truth of the desired behavior is "taking the fever-reducer drug for four consecutive days causes the fever to eventually stop in the next days once the four consecutive days are finished". This statement can be as G[0,3] TakingDrug F[4,?] FeverStop where ? indicates an unknown time upper bound. The undesired behavior which is represented by negative trajectories is when the patient has a fever. For this case study, we generated the dataset D with 16 positive trajectories and 2 negative trajectories all with the length of T = 25 and two dimensions. The first dimension d1 indicates whether the patient has taken the drug, i.e., d1 = -1

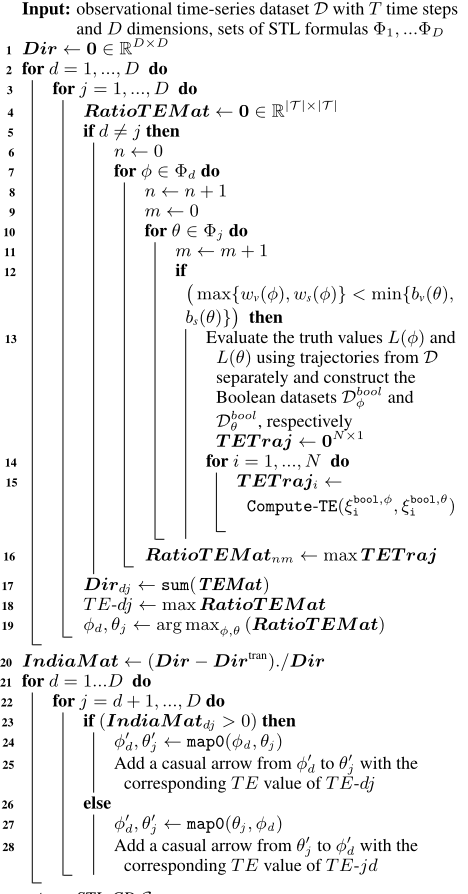

Algorithm 3: STL-based causal discovery

29 return STL-CD G

indicates the drug has not been taken and d1 = -1 indicates that the drug has been taken. The second dimension d2 is the temperature value of the patient. d1 < 100F ◦ indicates the fever has stopped and d1 > 100F ◦ indicates that the fever has not been stopped. We also set M min = 1 and M max = 20. We have inferred 25 STL formulas for each dimension and then calculated the TE among pairs according to temporal precedence constraints. We partially display the result in Fig 2. Finally, the obtained STL-CD (with mapped formulas) is shown in Fig. 3a, unveiling the truth that taking the drug is the cause of falling temperature. The unmapped formulas are G[6,9] for cause and G[11,15] for effect where the duration of taking drug is four consecutive days as described by pairs of STL formulas with the maximum RatioTE value. The satisfaction of the effect (mapped) formula G[5, 8]d2 < 101 implies the satisfaction of the effect formula in the ground truth. This means that the temporal behavior specified by G[5, 8]d2 < 101 encompasses the temporal behavior specified by F[4,?]FeverStop. As for the predicate d2 < 101, the value d2 = 101 indicates having a fever, and the value d2 = 99 indicates not having a fever in the trajectories and the predicate d2 < 101 captures "not having a fever" correctly. We also apply three other baseline methods on Drug synthesis dataset and their results are shown in Fig. 3b, Fig. 3c, Fig. 3d. As seen, only STE generated the correct CD. However, only the proposed method extracted the ground truth duration of taking drug that causes the fever to drop. We quantify structural accuracy by the percentage of correctly identified edges. In the drug case study, our method achieved 100% accuracy, outperforming TCDF (0%) and MVGC (0%).

5.2 On-Board Vehicular Sensory Data

In this case study, we collect on-board vehicular sensory data from CAN bus when the vehicle is under normal operation. The dataset D has 9 normalized trajectories with the length of T = 3000 and each trajectory has four dimensions. d1 is the "vehicle speed", d2 is the "engine speed", d3 is the "accelerator paddle position", and d4 is the "throttle position". The underlying causal diagram originates from common Electronic Control Units (ECUs) within the vehicle including the Throttle Control Unit [Loh et al., 2013], Transmission Control Unit [Tamada et al., 2020], etc. According to the design of the control logic inside ECUs, we could figure out the ground truth for these four attributes (without any STL formulas).

D has nine positive trajectories and three negative trajectories where positive trajectories represent the situation where the vehicle is under operation (the vehicle is moving) and the negative trajectories represent the situation where the vehicle is not under operation (where the vehicle is static). Fig. 4a shows the obtained results for Vehicle dataset with M min = 90 and M max = 100. As seen, the proposed method discovered five edges correctly out of six possible edges among the four attributes. In Fig. 4a, it can be seen that three different formulas are inferred for d1, three different formulas for d3, two different formulas for d2, and two different formulas for d4 wherein each pair of formulas, the temporal precedence constraint is met and the causal link has a correct direction. For example, G[0,29](d4 > 0.5936) F[537,565](d1 > 0.797) means "the normalized throttle position being greater than 0.5936 for 30 consecutive time units causes the normalized vehicle speed to eventually be greater than 0.797 in the time window of [537, 565]". Moreover, several such STL formulas in different time intervals with statically meaningful trends can be used in the abstraction of the temporal properties in the context of causality and the abstraction of systems dynamics. The formulas we get could be used as forming blocks for vehicle dynamics STL specifications benchmarks such as in [Hoxha et al., 2014]. For discovering the ground truth STL formulas of this case study, we need to use more data and perform more extensive experiments.

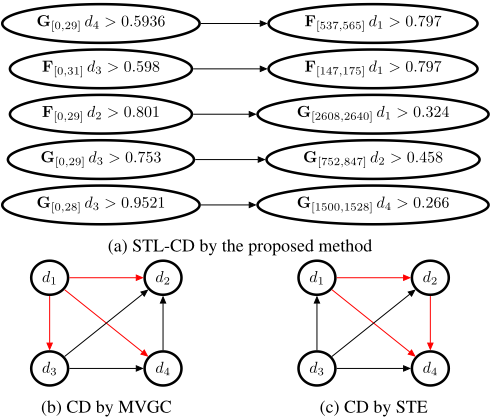

Fig. 4b shows the obtained CD by MVGC where the correct discovered edges are d3 d4, d3 d2, and d4 d2.

Fig. 4c shows the obtained CD by STE where the correct discovered edges are d3 d1, d3 d2 and d3 d4. TCDF did not return any causal link. The method we proposed not only discovers the closest causal diagram but also reveals a potential temporal logic within the controller. In the vehicular case, our method achieved 83% accuracy, also surpassing MVGC (50%) and STE (50%).

6 Conclusion

In this paper, we introduced signal-temporal-logic-based causal discovery to explicitly capture the temporal aspects of causal relationships, enabling agents to reason about causality over time while considering the order and duration of events. This approach has the potential to improve decision-making in complex, dynamic environments. As future work, we aim to optimize the extraction of statistically meaningful time intervals to maximize their utility based on dataset size. Additionally, we plan to extend the method to construct a complete DAG rather than focusing on pairwise nodes.

Acknowledgments

This work was supported in part by the National Science Foundation (NSF) under Grants CNS 2339774, CNS 2304863, and IIS 2332476. Yucheng Ruan and Chengcheng Zhao want to acknowledge the National Natural Science Foundation of China under Grant 62273305 and the Natural Science Foundation of Zhejiang Province under Grant LR25F030002.
