Federated Multi-view Graph Clustering with Incomplete Attribute Imputation

1 Introduction

Multi-view data refers to data derived from different perspectives or sources to describe the same object. Each view provides a distinct aspect of information. Multi-view data have become ubiquitous across various real-world applications [Liang et al., 2025; Yang et al., 2022], such as remote sensing and social networking. In practice, it is expensive to obtain reliable labels for massive and complex multi-view data, which makes multi-view clustering (MVC) receive considerable attention from researchers in recent years as an unsupervised method [Huang et al., 2023; Zhao et al., 2025]. By exploiting consistent and complementary information from various views, MVC generally exhibits superior performance to single-view approaches.

∗Corresponding Author

There are numerous MVC methods developed. For instance, Xiao et al. [2023] employ graph neural networks (GNNs) as a feature fusion module to better integrate multiview features, and Teng et al. [2024] use transformers to extract consensus features for MVC, both achieved good performance. However, in reality, multi-view data collected from different sources is often held by separate organizations, with each organization owning only one view of the data. This situation introduces two challenges: (1) Due to privacy concerns, data sharing between views is not permitted, and (2) the independence of data collection leads to instability in data quality, specifically with some views of certain samples being incomplete or missing. Traditional MVC methods, which rely on the assumption of centralized data distribution, are unable to effectively address these two real-world challenges [Chen et al., 2023b].

To overcome these challenges, recent studies introduced federated learning into MVC and developed several Federated Multi-view Clustering (FedMVC) approaches. Huang et al. [2022] proposed an efficient FedMVC method based on matrix factorization and developed a federated optimization framework. Effective as it is, this method cannot obtain the deep features as a shallow model, resulting in suboptimal clustering performance. Therefore, Chen et al. [2023b] proposed a deep FedMVC method that employs deep learning to extract high-level features and introduced a missing data completion strategy based on prototypes, effectively improving the clustering performance. However, it requires each client to upload local embedded features to the server and may be vulnerable to model inversion attacks [Sun et al., 2025] and might produce high communication overhead. To alleviate the privacy issues, Sun et al. [2025] proposed a structured graph learning framework for FedMVC, which avoided uploading embedding features and reduced privacy risks. However, the method does not consider the possible incomplete view problem and requires passing a N × N graph between the client and the server, resulting in a high communication overhead on large-scale datasets.

Therefore, we propose a novel deep FedMVC method based on graph convolutional network (GCN), i.e.,, Federated Multi-view Graph Clustering with Incomplete Attribute Imputation (FMVC-IAI). First, it utilizes the global structural information to impute incomplete attributes based on GNN, thus mitigating the view incompleteness issue. Then, it uses Graph Autoencoder (GAE) for feature extraction to extract high-order features. To defend against model inversion attacks, inspired by [Zhang et al., 2022], we extract view-specific anchor graphs instead of embedded features as knowledge carriers to support collaborative training. This method not only reduces privacy leakage risks but also significantly lowers communication overhead from O(N 2 ) to O(Nr), where r is the anchor number smaller than N. The main contributions of the work can be summarized as follows:

• We propose a novel FedMVC method that employs graph structures from other clients to impute the local missing attributes, which addresses the viewincompleteness problems under federated settings.
• We leverage the anchor graph for cross-client knowledge sharing, which helps to reduce the communication overhead and improve model performance.
• Our method effectively addresses data missing scenarios in federated environments, particularly under complex conditions with high missing rates. Extensive comparative experiments demonstrate its superiority.

2 RelatedWorks

2.1 Multi-viewClustering

Multi-view clustering (MVC) is a method that utilizes multiple views of data to uncover consistent clustering structures. Its main challenge lies in extracting consistent information from multi-view features. Existing multi-view clustering methods can be broadly categorized into heuristic methods and deep learning-based methods [Chen et al., 2023a]. Heuristic approaches include matrix factorizationbased [Zhao et al., 2017; Li et al., 2023a], graph-based [Liang et al., 2022; Zhao et al., 2024], and kernel-based methods [Wang et al., 2023; Wu et al., 2024]. However, these methods typically extract shallow features and are not suitable for complex data.

Therefore, deep learning is introduced to MVC owing to its impressive deep feature extraction capacities. [Ren et al., 2024b; Chen et al., 2025a; Chen et al., 2025b]. For example, Xu et al. [2021] proposed a deep MVC method based on a deep autoencoder, which leverages a feature fusion mechanism to extract consistent information across views. [Lin et al., 2024] utilized a deep graph autoencoder to extract both structural and attribute features, enabling effective multi-view clustering for graph data. Some works take into account the incomplete multi-view clustering problem [Liu et al., 2023], Pu et al. [2024] proposed an adaptive completion method. It first uses a deep autoencoder to extract embedding features, then estimates the embedding features of the missing data by leveraging cross-view soft clustering assignments and global cluster centroids, thereby achieving data completion. Although these methods have achieved excellent MVC performance, they are all based on the assumption of centralized data distribution. They do not consider the practical requirement where view data is distributed across different holders and cannot be accessed mutually.

2.2 FederatedMulti-viewClustering

To address the above real-world challenges, Federated MultiView Clustering methods [Huang et al., 2022; Li et al., 2023b; Qiao et al., 2024] have been proposed. Inspired by vertical federated learning[Liu et al., 2024], these methods aim to extract consensus information from distributed data while ensuring data privacy is preserved throughout the process. Huang et al. [2022] first combines multi-view learning with federated learning, proposing a federated multiview clustering (FedMVC) model called FedMVL. To address challenges such as stragglers and fault tolerance in federated learning, it derives an iterative joint optimization algorithm that enables each node to flexibly handle subproblems. Chen et al. [2023b] addressed the issues of data heterogeneity and missing data in federated scenarios by proposing a federated multi-view clustering method called FedDMVC, which uploads autoencoder embedding features to the server to achieve feature completion. Building upon this, Ren et al. [2024a] further addressed the issue of sample misalignment in federated learning. While existing research has made significant progress, directly uploading embedding features poses a risk, as it is susceptible to model inversion attacks [Sun et al., 2021] that could lead to privacy leakage.

3 ProposedMethod

3.1 Problem Statement

A typical FedMVC under vertical settings can be defined as follows. Suppose there are M clients, with the m-th client identified by Cm holding the m-th view data X(m) . Most existing FedMVC methods assume that multi-view data X held by different entities are complete, i.e., for a certain sample, all the clients hold its data with the corresponding views. However, it is almost impossible that all the samples have complete views, since the data are collected by different entities for different purposes. We introduce an mask vector b(m) ∈ RN×1 for Cm, where b(m) i = 1 indicates that Cm holds the data of the i-th sample. Besides, there exists a server S responsible for coordinating the collaborative training among various clients. Our design goal is to enable the clients to collaboratively train a FedMVC model that partitions data into K groups with the assistance of the server S, ensuring low privacy risk and reasonable communication cost.

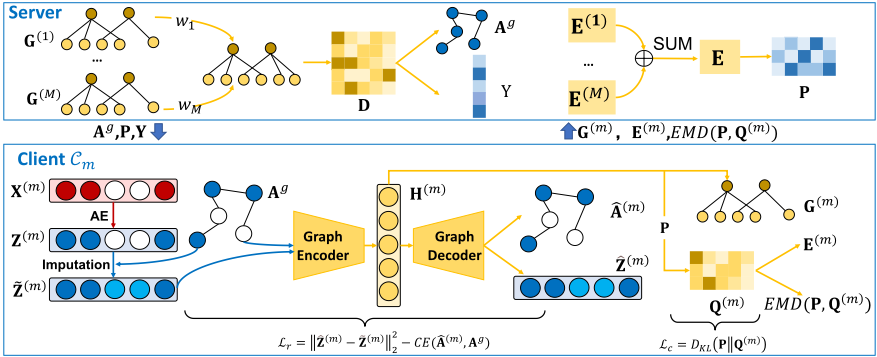

Overview: Each client preprocesses local data via a certain model according to the data characteristics (like Autoencoder, Convolutional Autoencoder, etc). Taking the autoencoder (AE) as an example, each client employs AE to process local data with a simple reconstruction loss for noise elimination and dimension reduction. The subsequent federated model training requires several rounds of interactions. In each round, it imputes the missing attributes via a simple feature diffusion process with a global adjacency graph. Subsequently, each client further extracts high-level embeddings with an Graph Autoencoder (GAE) network, and performs local clustering with the global supervision produced by S and produces local structural information and clustering information, which are sent to S to generate global adjacency graph and global supervision. The general framework of FMVCIAI is illustrated in Figure 1.

3.2 Client-side Design

Each client maintains a local model composed of four parts: incomplete-view imputation, GAE-based embedding, local clustering module with global supervision, and interaction with the server. whose details are as follows.

Incomplete-view Imputation

The missing views of some samples in different clients hinder the clustering. Chen et al. [2023b] addresses this issue by introducing global supervision modules and imputing the missing views. However, this method requires uploading the local data features, which may introduce privacy risks. Inspired by [Rossi et al., 2022], we build a simple feature completion method for missing features based on GNN with globally fused graph Ag generated by S. Cm leverages AE to map the raw data X(m) into a latent feature space to obtain its low-level feature Z(m) via a reconstruction loss before imputation. Then, the missing sample features in Z(m) are filled with zero vectors, making the size of Z(m) equal to N × dz. Finally, each client Cm leverages the global graph and local attributes for missing attribute completion. The process of feature completion is analogous to a multi-source heat diffusion process, where each existing sample acts as an independent heat source, diffusing its features along the edges of the global graph to complete all the missing data. First, we calculate the diffusion matrix ˜A from Ag by:

where D is the degree matrix of Ag . Suppose B(m) = diag(b(m) ), where I is an identity matrix. To impute the missing samples, we adopt the method in [Rossi et al., 2022] to produce the missing attributes by minimizing the Dirichlet energy. By initializing the imputed feature matrix ˜Z(m) 0 = Z(m) , the iterative imputation process can be formalized as a feature propagation process below:

where ˜Z(m) is the imputed feature matrix. Note that a highquality global graph structure plays a crucial role. Therefore, we update the graph structure Ag after each communication round to achieve better feature completion, which is illustrated in details in the subsequent part. At the beginning, Ag can be initialized by Ag = ∑Mm=1 A(m) , where A(m) is the local adjacency graph constructed from Z(m) .

GAE-based Embedding

This module incorporates GAE to further extract high-level embeddings from the imputed attributes and global structures. First, the graph attention network (GAT) is introduced to process ˆZ(m) as follows:

where H(m) ∈ RN×dh represents the high-level features extracted by the GAE. Then, we utilize MLP as decoder to reconstruct the attributes and structure as follows:

where σ(·) is the sigmoid activation function. Finally, we use the MSE loss as the feature reconstruction loss term and the binary cross-entropy loss as the structural reconstruction loss. The full reconstruction loss is defined as:

Local Clustering with Global Supervision

Cm leverages a clustering layer with learnable parameters U(m) ∈ RK×dh to obtain the local clustering assignment matrix Q(m) ∈ RN×K .

where he element q(m) ij corresponds to the entry located at the i-th row and j-th column of the matrix Q(m) . Similarly, h(m) i and u(m) j denote the row vectors of matrices H(m) and U(m) , respectively.

Then, each client Cm leverages the global cluster assignment matrix P sent by the server to compute the KL divergence between Q(m) and P as the clustering loss, enabling global information to guide the local model training:

Thus, the overall loss function on the client side is defined by Eq. (8).

where α is a hyperparameter that balances the contribution of the clustering loss and the reconstruction loss.

3.3 Client-Server Interaction

To assist S to construct the global adjacency graph and supervision information, Cm is required to transfer local adjacency graph and clustering assignment to S. However, directly transmitting the local graph constructed fromH(m) results in limited information sharing, while transmitting the distance matrix incurs an expensive communication overhead of O(N 2 ), which is not suitable for communication sensitive scenarios and large-scale data. To mitigate this problem and inspired by [Zhang et al., 2022], we propose to construct the adjacency graph from anchor graphs and share the anchor graph instead of a full adjacency graph. To be specific, we adopt the method described in [Li et al., 2020] to extract the anchor graph G(m) ∈ RN×r fromH(m) and transmit it to S, reducing communication cost to O(Nr) from O(N 2 ).

In addition, to enable S to generate the global clustering assignment P, Cm further computes the local prototype F(m) ∈ RK×dh based on the pseudo-labels Y from the server and calculates matrix E(m) ∈ RN×K between local samples to the prototypes as in Eq. (9):

where S(m) k = {h(m) i , yi|yi = k}Ni=1 is the set of samples with pseudo-label k on the m-th client Cm, e(m) ij is the element in the i-th row and j-th column of the matrix E(m) .

3.4 Server-side Clustering

Construction of Global Adjacency Graphs.

After receiving the anchor graphs G(m) uploaded by the clients, S performs a weighted fusion as illustrated below:

where w(m) is the weight of Cm, which measures the contribution of G(m) . We believe that Q(m) closer to the global assignment P include more consistent information and should be assigned a larger weight. Therefore, we adopt Earth Mover's Distance (EMD) to measure the distance between the previous P and Q(m) of Cm as the evidence to determine w(m) :

The global adjacency graph Ag by performing KNN on the distance matrix D ∈ RN×N computed from the aggregated anchor graph G by Dij = ∥Gi - Gj∥22 . In practice, EMD(P,Q(m) ) can be computed locally by Cm and then transmitted to S for lower communication cost.

Global Clustering

S is also responsible for generating the global clustering assignment and pseudo labels. S first aggregates all E(m) from Sm into E = ∑Mm=1 E(m) . We measure the similarity between global embedded features and global prototypes by converting their Euclidean distances into conditional probabilities using the Student's t-distribution:

where eij represents the element in the i-th row and j-th column of the matrix E. Then, the global clustering assignment matrix P can be obtained by Eq. (13):

Finally, S performs spectral clustering on D to obtain pseudo label matrix Y, and sends Ag , P and Y to all the clients. It should be noted that Ag is a sparse (N, N) matrix, which can be compressed into a dense (N, k) matrix, so the data size to be transmitted for Ag is (N, k), where k is the number of neighbors in KNN. We summarize the workflow of our method in Algorithm 1.

3.5 Communication Overhead Analysis

We analyze the communication overhead of our method from two aspects. First, during the data upload phase from the client to the server, the data to be uploaded includes E(m) ,G(m) and EMD(P,Q(m) ), which respectively incurs

Algorithm 1 FMVC-IAI

Input: The incomplete multiview data {X(m) }Mm=1 distributed in M clients, the number of clustering clusters K, the number of communication rounds R.

Output: Clustering result Y

• 1: Each client Cm initializes KNN graph.
• 2: S initializes P, Y, Ag
• 3: for Not reaching R rounds do
• 4: ▷ Local Training on Cm
• 5: for Each client Cm in parallel do
• 6: Generate Z(m) fromX(m) with AE
• 7: Impute features with global graph Ag .
• 8: Local training with loss in Eq. (8) to obtain H(m) .
• 9: Extract the anchor graph G(m) fromH(m) .
• 10: Update E(m) using Y and H(m) .
• 11: Upload E(m) and G(m) to S.
• 12: end for
• 13: ▷ Global Fusion on S
• 14: S update P by Eq. (13).
• 15: S update Y
• 16: S update Ag using the KNN and G(m) .
• 17: S distribute P, Ag and Y to each client Cm.
• 18: end for

the communication cost of O(rN), O(NK), and O(1), resulting a total cost of O(NK +Nr). During the data transmission from the server to the clients, the data to be downloaded includes P,Y and Ag , which respectively produce a cost of O(NK), O(N), and O(Nk), leading to a total cost of O(NK +Nk +N). Therefore, the overall communication complexity is O(Nr+2NK+Nk+N), which is much smaller than O(N 2 ).

4 Experiments

4.1 Experimental Settings

Datasets and Metrics

We conducted experiments on three multi-view datasets:

• HW [Winn and Jojic, 2005] comprises multi-feature data for digits 0 through 9, with 200 samples for each class. For each binarized handwritten digit image, six different view features were extracted: 1. mfeat-fou, 2. mfeat-fac, 3. mfeat-kar, 4. mfeat-pix, 5. mfeat-zer, and 6. mfeat-mor.
• OutdoorScene [Monadjemi et al., 2002] contains 15 scene categories with both indoor and outdoor environments, 4485 images in total. Following [Jiang et al., 2024], we select 8 outdoor categories with total 2,688 images with four views.
• NoisyMNIST [Wang et al., 2015] View 1 consists of the original MNIST images, whereas view 2 is comprised of intra-class images that have been sampled and embedded with Gaussian white noise. Following [Chao et al., 2024], we utilize a subset that includes 10,000 samples.

Data Setting: Each view in the dataset is distributed across different clients, and clients cannot access each other's data.

Additionally, following [Feng et al., 2024], we set the missing rate of η, randomly select ηN missing samples, and delete half of the view data to simulate missing data with different missing rates in various federated scenarios.

Metrics: We use three widely used clustering metrics for evaluation, i.e., Accuracy (ACC), Normalized Mutual Information(NMI), and Adjusted Rand Index(ARI).

Comparison Methods

To validate the effectiveness and superiority of our method, we conducted comparisons with seven state-of-the-art IMVC methods, which include five centralized incomplete multiview clustering methods: PIC [Wang et al., 2019], DAIMC [Hu and Chen, 2018], COMPLETER [Lin et al., 2021], DSIMVC [Tang and Liu, 2022], and CPSPAN [Jin et al., 2023]; and two recent FedMVC methods: MGCD [Sun et al., 2025] and FCUIF [Ren et al., 2024a], under missing rate settings of η at [0.1, 0.3, 0.5, 0.7, 0.9].

4.2 Experimental Results

Tables ?? to ?? provide detailed clustering performance comparisons of our method and the benchmark methods across different missing rates and datasets. To eliminate random variations, we conducted five repeated experiments for all methods and reported the average values. The results are presented with the mean value first, followed by the MAD (Mean Absolute Deviation). Additionally, the best results are highlighted in bold, and the second-best results are underlined.

The experimental results demonstrate that, compared to the two most recent federated IMVC methods, our approach achieves the best performance in most cases. In contrast to MGCD, which does not account for missing data, our method outperforms it in all missing rate scenarios. This indicates that missing data can severely impact the clustering performance of federated IMVC.

Compared to FCUIF, our method outperforms it on most datasets and missing rates. Particularly on the HW dataset, while our method shows no significant advantage at low missing rates, at high missing rates, FCUIF experiences a considerable performance drop, whereas the performance decline of our method is smaller than that of FCUIF. This demonstrates that our feature completion approach is effective. Moreover, our method avoids uploading feature embeddings, reducing the risk of privacy leakage compared to existing deep IMVC methods.

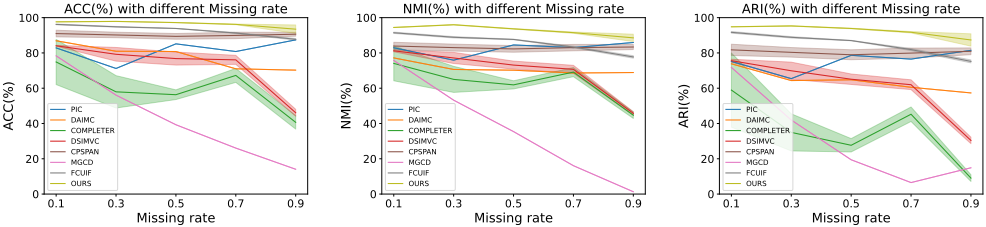

To visually observe the impact of missing rate changes on clustering performance, we present the error band diagram of all clustering metrics and comparison methods on the HW dataset in Figure 2. As can be seen from the figure, under different missing rate settings, our method consistently maintains high clustering performance. Particularly in high missing rate scenarios (η = 0.9), our method even outperforms all benchmark methods, including centralized methods, proving the robustness of our feature completion approach.

4.3 Ablation Study

We validate the effectiveness of each module in the proposed method through ablation experiments. The experimental results are shown in Table ??. The four modules considered are: M1 represents the GCN-based feature completion module, M2 represents the weighted fusion module, and M3 and M4 represent the feature reconstruction loss and the structural reconstruction loss in GAE, respectively. The ablation experiment results show that, regardless of whether the missing rate is high or low, M4 has a significant impact on the clustering results. At high missing rates, all modules are indispensable for clustering performance. This demonstrates the effectiveness of each module in our proposed method.

4.4 Parameter Analysis

We conducted experiments to perform parameter analysis on several key parameters involved in the proposed method. The experimental results are shown in Figure 3 and Figure 4. Specifically, we tested the clustering performance on the HW dataset under a missing rate setting of η = 0.9, varying the following parameters: The number of neighbors k used for KNN graph construction, ranging from 5 to 45 with an interval of 5. The maximum number of communication rounds R, ranging from 1 to 15 with an interval of 1. The clustering loss balance coefficient α ∈ [10-4 , 10-3 , 10-2 , 10-1 , 1, 10, 100] The number of selected anchors r, ranging from 10 to 1000.

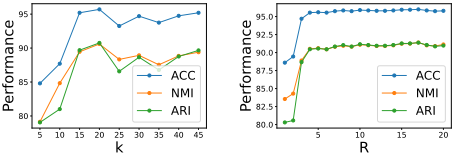

From Figure 3, it can be observed that the clustering performance is optimal when k is around 20. As R increases, the clustering performance initially improves and then stabilizes at a maximum value. From Figure 4, it is evident that α maintains stable clustering performance within the range of 0.1 to 10, and a small number of anchor points (more than 120 on HW) in each cluster is sufficient to achieve stable performance for our method.

k

R

r

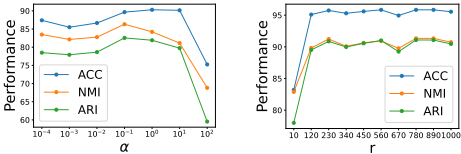

Figure 4: Clustering performance with different α and r

5 Conclusion

In this paper, we propose a federated multi-view clustering method with incomplete attribute imputation. First, a global consensus graph is constructed from the existing data, and clients use the global graph structure information to perform local feature completion. Besides, to reduce privacy leakage risks and communication overhead, we extract an anchor graph from the autoencoder embeddings to replace the direct uploading of embedding features or graphs. Finally, weighted fusion of the anchor graphs is performed on the server to obtain the global clustering assignment, which guides the client model training for self-supervised learning. Experimental results demonstrate the superiority of our method, particularly the robustness in high missing rate scenarios.
