A Primal-dual Perspective for Distributed TD-learning

1 Introduction

Temporal-difference (TD) learning [Sutton, 1988] aims to solve the policy evaluation problem in Markov decision processes (MDPs), serving as the foundational pillar for many reinforcement learning (RL) algorithms [Mnih et al., 2015]. [Wang

et al., 2022], theoretical exploration of TD-learning has become an active area of research. For instance, [Tsitsiklis and Van Roy, 1996] studied the asymptotic convergence of TD-learning, while non-asymptotic analysis has been examined in [Bhandari et al., 2018; Srikant and Ying, 2019; Lee and Kim, 2022].

In contrast to the single-agent case, the theoretical understanding for TD-learning for networked multi-agent Markov decision processes (MAMDPs) has not been fully explored so far. In the networked MAMDPs, each agent follows its own policy and receives different local rewards while sharing their local learning parameters through communication networks. Under this scenario, several distributed TD-learning algorithms [Wang et al., 2020; Doan et al., 2019; Doan et al., 2021; Sun et al., 2020; Zeng et al., 2022] have been developed based on distributed optimization frameworks [Nedic and Ozdaglar, 2009; Pu and Nedi´c, 2021].

The main goal of this paper is to provide finite-time analysis of a distributed TD-learning algorithm for networked MAMDPs from the perspectives of the primal-dual algorithms [Wang and Elia, 2011]. The proposed algorithms are inspired by the control system model for distributed optimization problems [Wang and Elia, 2011; Lee, 2023], and it can also be interpreted as the primal-dual gradient dynamics in [Qu and Li, 2018]. In this respect, we first study finite-time analysis of continuous-time primal-dual gradient dynamics in [Qu and Li, 2018] with special nullity structures on the system matrix. Based on the analysis of primal-dual gradient dynamics, we further provide a finite-time analysis of the proposed distributed TD-learning under both i.i.d. observation and Markov observation models. The main contributions are summarized as follows:

1. An improved or comparable to the state of art convergence rate for continuous-time primal-dual gradient dynamics [Qu and Li, 2018] with null-space constraints under specific conditions: the results can be applied to general classes of distributed optimization problems that can be reformulated as saddle-point problems [Wang and Elia, 2011];
2. Development of new distributed TD-learning algorithm inspired by [Wang and Elia, 2011; Lee, 2023], which does not require a double stochastic matrix. This offers a significant advantage in specific scenarios, such as wireless ad hoc networks or broadcast-based communication, where node degrees (number of neighbours) are often unknown due to factors like message loss during transmission [Hendrickx and Tsitsiklis, 2015]. This uncertainty makes it challenging to construct a doubly stochastic matrix, as most existing methods rely on precise knowledge of node degrees. In contrast, our algorithm does not require such additional information and thus remains effective in these environments;
3. New mean-squared error bounds of the distributed TDlearning under our consideration for both i.i.d. and Markovian observation models and under various conditions of the step-sizes: the distributed TD-learning is based on the control system model in [Wang and Elia, 2011; Lee, 2023] which does not require doubly stochastic matrix corresponding to its associated network graph. Note that the doubly stochastic assumption is required

in other distributed TD-learning algorithms based on the classical distributed optimization algorithms [Nedic and Ozdaglar, 2009; Pu and Nedi´c, 2021];

1. Empirical demonstrations of both the convergence and the rate of convergence of the algorithm are provided.

RelatedWorks. Distributed optimization has been an active research field. In this context, [Nedic and Ozdaglar, 2009] investigated a distributed optimization algorithm over a communication network whose structure graph is represented by a doubly stochastic matrix. In this approach, each agent exchanges information with its neighbors, with the exchange being weighted by the corresponding element in the doubly stochastic matrix. Meanwhile, [Wang and Elia, 2011; Notarnicola et al., 2023] provided control system approach to study distributed optimization problem.

The asymptotic convergence of distributed TD-learning has been studied in [Mathkar and Borkar, 2016; Stankovi´c et al., 2023]. [Doan et al., 2019] provided finite-time analysis of distributed TD-learning based on the distributed optimization algorithm [Nedic and Ozdaglar, 2009] with i.i.d. observation model. Their analysis was extended to the Markovian observation model [Doan et al., 2021]. [Sun et al., 2020] studied distributed TD-learning based on [Nedic and Ozdaglar, 2009] with the Markovian observation model using multistep Lyapunov function [Wang et al., 2019]. [Wang et al., 2020] studied distributed TD-learning motivated by the gradient tracking method [Pu and Nedi´c, 2021]. [Zeng et al., 2022] studied finite-time behavior of distributed stochastic approximation algorithms [Robbins and Monro, 1951] with general mapping including TD-learning and Q-learning, using Lyapunov-Razumikhin function [Zhou and Luo, 2018].

In the context of policy evaluation, [Macua et al., 2014; Lee et al., 2018; Wai et al., 2018; Cassano et al., 2020] studied distributed versions of gradient-TD [Sutton et al., 2009]. The Gradient-TD method is reformulated as saddle-point problem [Macua et al., 2014; Lee et al., 2022], and the aforementioned works can be understood as distributed optimization over a saddle-point problem [Boyd and Vandenberghe, 2004].

2 Preliminaries

2.1 Markov Decision Process

Markov decision process (MDP) consists of five tuples (S, A, γ, P, r), where S := {1, 2, . . . , |S|} is the collection of states, A is the collection of actions, γ ∈ (0, 1) is the discount factor, P : S ×A× S → [0, 1] is the transition kernel, and r : S ×A×S → R is the reward function. If action a ∈ A is chosen at state s ∈ S, the transition to state s′ ∈ S occurs with probability P(s, a, s′ ), and incurs reward r(s, a, s′ ). Given a stochastic policy π : S ×A → [0, 1], the quantity π(a | s) denotes the probability of taking action a ∈ A at state s ∈ S. We will denote P π (s, s′ ) := ∑a∈A P(s, a, s′ )π(a | s), and Rπ (s) := ∑a∈A ∑s′∈S P(s, a, s′ )π(a | s)r(s, a, s′ ), which is the transition probability from state s ∈ S to s′ ∈ S under policy π, and expected reward at state s ∈ S, respectively. d : S → [0, 1] denotes the stationary distribution of the state s ∈ S under policy π. The policy evaluation problem aims to estimate the expected sum of discounted rewards following policy π, the so-called the value function, vπ (s) = E [∑∞k=0 γ k r(sk, ak, sk+1)∣∣s0 = s, π] for s ∈ S.

Given a feature function ϕ : S → Rq , our aim is to estimate the value function through learnable parameter θ, i.e., vπ (s) ≈ ϕ(s)⊤θ, for s ∈ S, which can be achieved through solving the optimization problem, minθ∈Rq 12 ∥Rπ + γP πΦθ -Φθ∥2Dπ , where Dπ is a diagonal matrix whose elements are d(1), d(2), . . . , d(|S|), P π ∈ R|S|×|S| whose elements are [P π ]ij := P π (i, j) for i, j ∈ S, Rπ ∈ R|S| , [Rπ ]i := E [r(s, a, s′ )|s = i] for i ∈ S, and Φ := [ϕ(1) ϕ(2) · · · ϕ(|S|)]⊤ ∈ R|S|×q . The solution of the optimization problem satisfies the so-called projected Bellman equation [Sutton et al., 2009]:

Throughout the paper, we adopt the common assumption on the feature matrix, which is widely used in the literature [Bhandari et al., 2018; Wang et al., 2020].

Assumption 1. ∥ϕ(s)∥2 ≤ 1 for all s ∈ S and Φ is fullcolumn rank matrix.

2.2 Multi-Agent MDP

Multi-agent Markov decision process (MAMDP) considers a set of agents cooperatively computing the value function for a shared environment. Considering N agents, each agent can be denoted by i ∈ V := {1, 2, . . . ,N}, and the agents communicate over networks that can be described by a connected and undirected simple graph G := (V, E), where E ⊂ V × V is the set of edges. Ni ⊂ V denotes the neighbour of agent i ∈ V, i.e., j ∈ Ni if and only if (i, j) ∈ E for i, j ∈ V. Each agent i ∈ V has its local policy πi : S ×Ai → [0, 1], where Ai is the action space of agent i, and receives reward following its local reward function ri : S × A × S → R where A := ΠNi=1Ai. MAMDP consists of five tuples (S,A, γ, P, {ri }Ni=1 ), where P : S ×A× S → [0, 1] is the Markov transition kernel. The agents share the same state s ∈ S, and when action a := (a1, a2, . . . , aN) ∈ A is taken, the state transits to s′ ∈ S with probability P(s, a, s′ ), and for i ∈ V, agent i receives ri (s, a, s′ ). The aim of the policy evaluation under MAMDP is to estimate the expected sum of discounted rewards averaged over N agents, i.e., vπ (s) = E [∑∞k=0 γ k 1N ∑Ni=1 ri (sk, a, sk+1)], for s ∈ S. While learning, each agent i ∈ V can share its learning parameter over the communication network with its neighboring agents j ∈ Ni. Following the spirit of single-agent MDP, the aim of each agent is now to compute the solution of the following equation:

where Rπ i ∈ R|S| for i ∈ V, whose elements are [Rπ i ]j = E [ri (s, a, s′ ) | s = j ] for j ∈ S. The equation (1) admits a unique solution θc ∈ Rq , given by

Note that the solution corresponds to the value function associated with the global reward ∑∞k=0 γ k 1N ∑Ni=1 ri (sk, ak, sk+1). Moreover, we will denote, for 1 ≤ i ≤ N,

and w := λmin(Φ⊤DπΦ). The bound on the reward will be denoted by a positive constant Rmax ∈ R, i.e., |ri (s, a, s′ )| ≤ Rmax, 1 ≤ i ≤ N, ∀s, a, s′ ∈ S ×A×S.

3 Analysis of Primal-Dual Gradient Dynamics

The so-called primal-dual gradient dynamics [Arrow et al., 1958] will be the key tool for the analysis of the proposed distributed TD-learning. The analysis provided in this section will serve as the foundation for the subsequent analysis in Section 4. This section establishes exponential convergent behavior of the primal-dual gradient dynamics in terms of the Lyapunov method. To this end, let us consider the following constrained optimization problem:

where θ ∈ Rn , M ∈ Rn×n and f : Rn → R is a differentiable, smooth, and strongly convex function [Boyd and Vandenberghe, 2004]. One of the popular approaches for solving (4) is to formulate it into the saddle-point problem [Boyd and Vandenberghe, 2004], L(θ, w) = minθ∈Rn maxw∈Rn (f (θ) + w⊤Mθ), whose solution, θ∗ ,w∗ ∈ Rn , exists and is unique when M has fullcolumn rank [Qu and Li, 2018]. IfM is rank-deficient, i.e., it is not full-column rank, there exists multiple w∗ solving the saddle-point problem. It is known that its solution θ∗ ,w∗ can be obtained by investigating the solution θt, wt ∈ Rn of the so-called primal-dual gradient dynamics [Qu and Li, 2018], with initial points θ0, w0 ∈ Rn ,

[Qu and Li, 2018] studied exponential stability of the primaldual gradient dynamics whenM is full column-rank, using the classical Lyapunov approach [Sontag, 2013]. However, the proof relies on the invertibility of M, and cannot be extended to the case whenM is rank-deficient. As for such case, [Ozaslan and Jovanovi´c, 2023; Cisneros-Velarde et al., 2020; Gokhale et al., 2023] proved exponential convergence to a particular solution θ∗ ,w∗ using the tools based on singular value decomposition [Horn and Johnson, 2012]. In this paper, we will consider the following particular scenarios:

1. ∇f(θt) = Uθt, where U ∈ Rn×n , which is positive definite matrix, i.e., U + U ⊤ ≻ 0;
2. M is symmetric and rank-deficient. Distributed algorithms are typical examples satisfying such condition and will be elaborated in subsequent sections.

We note that previous works considered general matrix M, not necessarily a symmetric matrix. Moreover, note that the primal-dual gradient dynamics under such scenarios will appear in Section 4 as an ODE model of the proposed distributed TD-learning. The corresponding system can be rewritten as

To study its exponential stability, let us introduce the Lyapunov

function candidate V (θ, w) = [ θ MM †w ]⊤ S [ θ MM †w ], where S ∈ R2n×2n is some symmetric positive definite matrix, and θ, w ∈ Rn . The candidate Lyapunov function considers projection of the iterate wt to the range space of M. As in previous works, the difficulty coming from singularity of M can be avoided by considering the range space and null space conditions ofM. In particular, [Ozaslan and Jovanovi´c, 2023] employed a Lyapunov function that involves the gradient of the Lagrangian function, and considered the projected iterate MM †wt, where MM † is the projection matrix onto range space of M. [Cisneros-Velarde et al., 2020] exploited a quadratic Lyapunov function in [Qu and Li, 2018] for the iterate θt and V wt, where M := TΣV ⊤, which is the singular value decomposition of M. [Gokhale et al., 2023] considered a positive semi-definite matrix S and used semi-contraction theory [De Pasquale et al., 2023] to prove exponential convergence of the primal-dual gradient dynamics.

We will adopt the quadratic Lyapunov function in [Qu and Li, 2018] with the projected iterateMM †wt, and leverage the symmetric property of M to show improved or comparable to the state of art convergence rate under the particular conditions newly imposed in this paper. When M is symmetric, the fact that the projection onto the column space of M and row space of M being identical simplifies the overall bounds. We first present the following Lyapunov inequality.

The proof is given in 1 Appendix Section C.1. Using the above Lemma 2, we can now prove the exponential stability of the ODE dynamics in (5).

1 The Appendix can be found in https://arxiv.org/pdf/2310.00638

For θ0, w0 ∈ Rn and t ∈ R+, we have

The proof is given in Appendix Section C.2. We show that the above bound enjoys sharper or comparable to the state of the art convergence rate under particular conditions. With slight modifications, the Lyapunov function becomes identical to that of [Gokhale et al., 2023]. However, we directly rely on classical Lyapunov theory [Khalil, 2015] rather than the result from semi-contraction theory [De Pasquale et al., 2023] used in [Gokhale et al., 2023]. The classical Lyapunov approach simplifies the proof steps compared to that of semicontraction theory. The detailed comparative analysis is in Appendix Section D. The fact that M is symmetric and considering the projected iterateMM †wt, provides improved and comparable bound. Furthermore, as will be clear in Section 4, this enables us to extend the analysis to stochastic algorithms (TD-learning) without introducing involved analysis including (semi)-contraction theory or intricate Lyapunov function.

4 Distributed TD-Learning

In this section, we propose a new distributed TD-learning algorithm to solve (1) based on the result in [Wang and Elia, 2011]. In this scenario, each agent keeps its own parameter estimate θi ∈ Rq , 1 ≤ i ≤ N, and the goal of each agent is to estimate the value function vπ (s) ≈ ϕ(s)⊤θc satisfying (1) (the value function associated with the global reward ∑∞k=0 γ k 1N ∑Ni=1 ri ) under the assumption that each agent has access only to its local reward ri . The parameter of each agent can be shared over the communication network whose structure is represented by the graph G, i.e., agents can share their parameters only with their neighbors over the network to solve the global problem. The connections among the agents can be represented by graph Laplacian matrix [Anderson Jr and Morley, 1985], L ∈ R|S|×|S| , which characterizes the graph G, i.e., [L]ij = -1 if (i, j) ∈ E and [L]ij = 0 if (i, j) /∈ E, and [L]ii = |Ni| for i ∈ V. Note that L is symmetric positive semi-definite matrix and L1|S| = 0. To proceed, let us first introduce a set of matrix notations:

where ⊗ denotes Kronecker product, and ¯w is another collection of learnable parameters {wi ∈ Rq }Ni=1 , where wi assigned to each agent i and bi is defined in (3).

Meanwhile, [Wang and Elia, 2011] studied distributed optimization algorithms [Tsitsiklis, 1984] from the control system perspectives in continuous-time domain, which can be

Algorithm 1 Distributed TD-learning

represented as an Lagrangian problem [Hestenes, 1969]. Compared to other distributed optimization algorithms [Nedic and Ozdaglar, 2009; Pu and Nedi´c, 2021], the method in [Wang and Elia, 2011] does not require any specific initialization, diminishing step-sizes, and doubly stochastic matrix that corresponds to the underlying communication graph. Due to these advantages, this framework has been further studied in [Hatanaka et al., 2018; Bin et al., 2022]. Inspired by [Wang and Elia, 2011], [Lee, 2023] developed a continuous-time distributed TD-learning algorithm. The analysis relies on Barbalat's lemma [Khalil, 2015], which makes extension to the non-asymptotic finite-time analysis difficult for its discretetime counterpart. Moreover, they focus on the deterministic continuous-time algorithms. The corresponding discrete-time distributed TD-learning is summarized in Algorithm 1, where each agent updates its local parameter using the local TD-error in (6). The updates in (7) and (8) in Algorithm 1 can be obtained by discretizing the continuous-time ODE introduced in [Wang and Elia, 2011] with stochastic samples.

Using the stacked vector representation, the updates in (7) and (8) in Algorithm 1 can be rewritten in compact form:

where, ok := {oik }Ni=1 , and for 1 ≤ i ≤ N,

where we denoted ϵik := ϵi (oik ; θik ). Note that the superscript of ϵik corresponds to the i-th agent. Compared to the continuous-time algorithm in [Lee, 2023], we introduce an additional positive variable η > 0 multiplied with the graph Laplacian matrix, which results in the factor η multiplied with the mixing part in Algorithm 1 in order to control the variance of the update. We note that when the the number of neighbors of an agent i ∈ V is large, then so is the variance of the corresponding updates of the agent. In this case, the variance can be controlled by adjusting η to be small.

The behavior of stochastic algorithm is known to be closely related to its continuous-time O.D.E. counterpart [Borkar and Meyn, 2000; Srikant and Ying, 2019]. In this respect, the corresponding O.D.E. model of (9) is given by

for ¯ θ0, ¯w0 ∈ RNq , and t ∈ R+. The above linear system is closely related to the primal-dual gradient dynamics in (5) in Section 3. Compared to (5), the difference lies in the fact that the above system corresponds to the the dynamics of the distributed TD-learning represented by matrix ¯A instead of the gradient of a particular objective function. It is straightforward to check that the equilibrium point of the above system is 1N ⊗θc and 1 η ¯w∞ such that ¯L ¯w∞ = ¯A(1N ⊗θc) + ¯b.

In what follows, we will analyze finite-time behavior of (9) based on the Lyapunov equation in Lemma 4. For the analysis, we will follow the spirit of [Srikant and Ying, 2019], which studied the standard single-agent TD-learning based on the Lyapunov method [Sontag, 2013]. To proceed further, let us consider the coordinate change of ˜ θk := ¯ θk - 1N ⊗ θc and ˜wk := ¯wk - 1 η ¯w∞, with which we can rewrite (9) by

We will now derive a Lyapunov inequality for the above system based on the results in Lemma 4, To this end, we will rely on the analysis in [Qu and Li, 2018], which proved exponential convergence of the continuous-time primal-dual gradient dynamics based on the Lyapunov method. However, the newly introduced singularity of ¯L imposes difficulty in directly applying the results from [Qu and Li, 2018] which does not allow the singularity. To overcome this difficulty, we will multiply ¯L¯L† to the dual update ˜wk+1 in (12), which is the projection to the range space of ¯L. The symmetric assumption of ¯L helps to construct an explicit solution of the Lyapunov inequality in Lemma 4. Multiplying ¯L¯L† to ˜wk+1 in (12) yields

which can be proved using Lemma 2 in the Appendix C. For this system, we now derive the following Lyapunov inequality. Lemma 4. There exists a positive symmetric definite matrix G ∈ R2Nq×2Nq such that 8+η+4η2 λmax(¯L)2 2η(1-γ)w I2Nq ≺ G ≺ 2 8+η+4η2 λmax( ¯L)2 η(1-γ)w I2Nq, and for ˜ θ, ˜w ∈ RNq ,

The proof is given in Appendix Section D.1. The proof can be done by noting that ¯A- η ¯L is negative semi-definite and ¯L is rank-deficient, and applying Lemma 2.

4.1 I.I.D. Observation Case

We are now in position to provide the first main result, a finite-time analysis of Algorithm 1 under the i.i.d. observation model, which is a common assumption in the literature, and provides simple and clean theoretical insights.

Theorem 5. 1. Suppose we use constant step-size α0 = α1 = · · · = αk for k ∈ N0, and α0 ≤ ¯α for some positive constant ¯α ∈ (0, 1). Then, we have

1. Suppose we have αk = h1 k+h2 . There exist ¯h1 and ¯h2 such that letting h1 = Θ(¯h1) and h2 = Θ(¯h2) yields

The proof and the exact constants can be found in Appendix Section E.1. Using constant step-size, we can guarantee exponential convergence rate with small bias term O (α0 R2max λmax( ¯L) w3 (1-γ)3 ) when η ≈ √2 λmax(¯L) and λ+min ( ¯L)2 ≥ √2λmax( ¯L). Appropriate choice of η allows wider range of step-size, and this will be clear in the experimental results in Section 5. Furthermore, the algorithm's performance is closely tied to the properties of the graph structure. λ+min ( ¯L), the smallest non-zero eigenvalue of graph Laplacian, characterizes the connectivity of the graph [Chung, 1997], and a graph with lower connectivity will yield slower convergence rate and larger bias. λmax( ¯L) is the largest eigenvalue of the graph Laplacian, and it can be upper bounded by twice the maximum degree of the graph [Anderson Jr and Morley, 1985]. That is, a graph with higher maximum degree could incur slower convergence rate and larger bias. However, compared to λ+min (M), we experimentally verify in Section 5 that λmax( ¯L) does not appear to be an important factor under particular cases, and there could exist a tighter bound without λmax( ¯L). As for diminishing step-size, we achieve O ( 1k ) convergence rate from the second item in Theorem 5, and similar observations hold as in the constant step-size, i.e., the convergence rate depends on the smallest non-zero and maximum eigenvalue of graph Laplacian. Lastly, as in [Wang et al., 2020], our bound does not explicitly depend on the number of agents, N, compared to the bound in [Doan et al., 2019] and [Sun et al., 2020], where the bound scales at the order of N.

Furthermore, the known constant error bound for (singleagent) TD-learning, which is Theorem 2 of [Bhandari et al., 2018] is O ( 1 (1-γ)4w2 ). Meanwhile our bound in Theorem 4.2 is O ( 1 (1-γ)3w3 ) for the constant step-size case. The difference only comes from the choice on the bound in θc, the solution of the Bellman equation. We use the bound ∥θc∥2 ≤ O ( 1 (1-γ)w ) in Lemma 6 in Appendix C, whereas the bound O ( 1 (1-γ) 3 2 w 12 ) is used in [Bhandari et al., 2018].

4.2 Markovian Observation Case

In this section, we consider the Markovian observation model, where the sequence of observations {sk}∞k=1 follows a Markov chain. Compared to the i.i.d. observation model, the correlation between the observation and the updated iterates imposes difficulty in the analysis. To overcome this issue, an assumption on the Markov chain that ensures a geometric mixing property is helpful. In particular, the socalled ergodic Markov chain can be characterized by the metric called total variation distance [Levin and Peres, 2017], dTV(P,Q) = 1 2 ∑x∈S |P(x) - Q(x)|, where P and Q is probability measure on S. A Markov chain is said to be ergodic if it is irreducible and aperiodic [Levin and Peres, 2017]. An ergodic Markov chain is known to converge to its unique stationary exponentially fast, i.e., for k ∈ N0, sup1≤i≤|S| dTV(e⊤i (P π )k , µ∞) ≤ mρk , where ei ∈ R|S| for 1 ≤ i ≤ N is the |S|-dimensional vector whose i-th element is one and others are zero, µ∞ ∈ R|S| is the stationary distribution of the Markov chain induced by transition matrix P π , m ∈ R is a positive constant, and ρ ∈ (0, 1). The assumption on the geometric mixing property of the Markov chain is common in the literature [Srikant and Ying, 2019; Wang et al., 2020]. The mixing time of Markov chain is an important quantity of a Markov chain, defined as

For simplicity, we will use τ := τ(αT ), where T ∈ N0 denotes the total number of iterations, and αk, is the step-size at k-th iteration. If we use the step-size αk = 1 1+k , the mixing time τ only contributes to the logarithmic factor, logT in the finite-time bound [Bhandari et al., 2018]. As in the proof of i.i.d. case, using the Lypaunov argument in Lemma 4, we can prove the finite-time bound on the mean-squared error, following the spirit of [Srikant and Ying, 2019]. To simplify the proof, we will investigate the case η = 1.

Theorem 6. 1. Suppose we use constant step-size α0 = α1 = · · · = αT such that α0 ≤ ¯α for some positive constant ¯α ∈ (0, 1). Then, we have, for τ ≤ k ≤ T ,

1. Considering diminishing step-size, with αk = h1 k+h2 for k ∈ N0, there exits ¯h1 and ¯h2 such that for h1 = Θ(¯h1) and h2 = Θ(¯h2), we have for τ ≤ k ≤ T ,

The proof and the exact values can be found in Appendix F.1. For the constant step-size, we can see that the bounds have additional mixing time factors compared to the i.i.d. case. Considering diminishing step-size, the convergence rate of O ( τk ) can be verified, incorporating a multiplication by the mixing time τ .

As summarized in Table 1, the proposed distributed TDlearning does not require doubly stochastic matrix or any specific initializations. The algorithms requiring the doubly stochastic matrix, whose definition is given in Appendix B, face challenges when extending to directed graph and timevarying graph scenarios. However, our algorithm does not require major modifications. Meanwhile, push-sum [Nedi´c and Olshevsky, 2014] or push-pull [Pu et al., 2020] algorithms have been developed to cope with the assumption of doubly stochastic matrix in directed graph scenario. Nonetheless, both methods require knowledge of out-degree, which are often difficult to know in presence including broadcast communications [Hendrickx and Tsitsiklis, 2015]. Moreover, the performance of the algorithm is sensitive to the choice of doubly stochastic matrix as can be seen in Appendix G.

5 Experiments

2 This section provides the experimental results of Algorithm 1. two. An agent can transit to every state with uniform prob-

First, we give an explanation of the MAMDP setup, where the number of states is three and the dimension of the feature is ability. The feature matrix is set as Φ⊤ = [1 0 1 0 1 0 ]. The rewards are generated uniformly random between the interval

(0, 10). The discount factor is set as 0.8.

For each experiment with N ∈ {23 , 25 } number of agents, we construct a cycle, a graph G consisting of V := {1, 2, . . . , N} and E := {(i, i+1)}N-1 i=1 ∪{(N, 1)}. The smallest non-zero eigenvalue of graph Laplacian corresponding to a cycle with even number of vertices decreases as the number of vertices increases, while maximum eigenvalue remains same. The smallest non-zero eigenvalue is 2 - 2 cos ( 2π N ), and the largest eigenvalue is four [Mohar, 1997]. As N gets larger, the smallest non-zero eigenvalue gets smaller, which becomes 0.59 and 0.04 for N = 23 , 25 , respectively. Therefore, as number of agents increases, the convergence rate will be slower as expected in Theorem 5, and this can be verified in Figure (1a) and Figure (3) in the Appendix. The plots show the result for constant step-size α0 ∈ {2-3 , 2-4 , 2-5 , 2-6 }. Moreover, the convergence under a diminishing step-size can

2 The code is provided in this link.

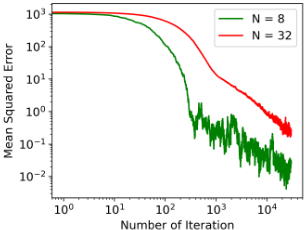

• (b) The result shows mean-squared error for the step-size, αk = N 2 N3+k on cycle graph.
• (e) Mean squared error of Algorithm 1 on star graph after 10,000 iterations. We set η = 1 with step-size 1/25 .
• (f) Mean squared error of Algorithm 1 on star graph after 10,000 iterations. We set η = 1 with step-size 1/25 .

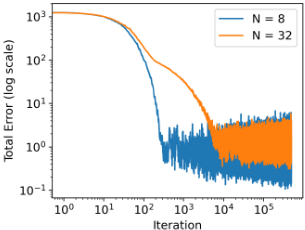

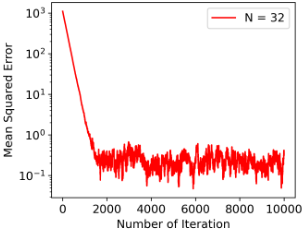

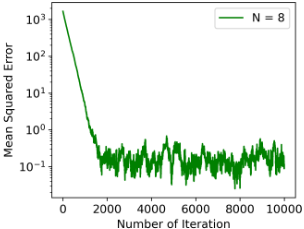

Figure 1: Experiment results of Algorithm 1. The experiments were averaged over 50 runs.

be seen in Figure (1b). To investigate the effect of λmax( ¯L), we construct a star graph, where one vertex has degree N - 1 and the others have degree one. The maximum eigenvalue of star graph is N and the smallest non-zero eigenvalue is one [Nica, 2016]. Even though N gets larger, we could see in Figure (1e) and (1f) that the convergence rate or bias term does not vary. Therefore, we can expect that there could be a tighter bound without λmax( ¯L) under particular cases.

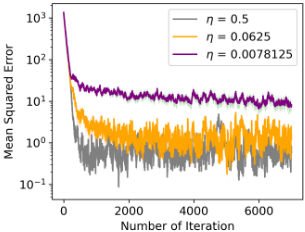

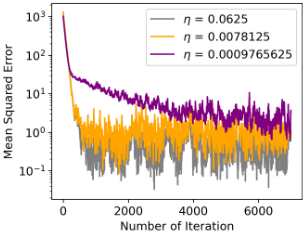

To verify the effect of η, we use a random graph model [Erd˝os et al., 1960], where among possible N(N-1)/2 edges, (N - 3)(N - 4)/2 edges are randomly selected. Figure (1c) shows the evolution of the mean squared error for N = 32, and step-size 0.1 with different η values. When η = 0.5 or η = 1, the algorithm diverges. Moreover, the bias gets smaller around √2 λmax(L) ≈ 0.046. This implies that appropriate choice of η can control the variance when the number of neighbors is large but if η is too small or large, Algorithm 1

may cause divergence or large bias. This matches the result of the bound in Theorem 5. Similar arguments hold when N = 8, and the result is given in Figure (1d).

Lastly, the comparison with other algorithms are given in Appendix G. In summary, while no single algorithm consistently outperforms the others, the performance of methods that rely on the doubly stochastic matrix is highly sensitive to the choice of this matrix.

6 Conclusion

In this study, we have studied primal-dual gradient dynamics subject to some null-space constraints and its application to a distributed TD-learning. We have derived finite-time bounds for both the gradient dynamics and the distributed TDlearning. The results have been experimentally demonstrated. Future studies include extending the analysis to distributed TD-learning with nonlinear function approximation.

Acknowledgements

The work was supported by the Institute of Information Communications Technology Planning Evaluation (IITP) funded by the Korea government under Grant 2022-0-00469.
