RotateKV: Accurate and Robust 2-Bit KV Cache Quantization for LLMs via Outlier-Aware Adaptive Rotations

1 Introduction

Large language models (LLMs) have attracted considerable attention due to their remarkable capabilities in next-tokenprediction generation tasks [Zhao et al., 2023]. A critical

∗ *Corresponding author: Kehong Yuan

-15

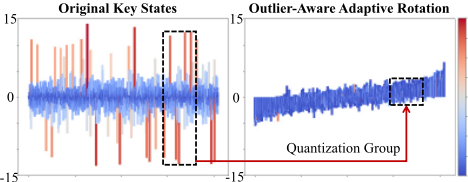

Figure 1: The distribution of Keys in Layer 10 of LLaMA-2-7B. The proposed outlier-aware adaptive rotation demonstrates outstanding capability in reducing outliers.

technique of LLMs is the Key-Value (KV) cache, which avoids recomputation by caching the KVs generated by the attention layer in each Transformer block [Vaswani, 2017]. However, as the batch size and context length increase, the growing size of KV caches not only leads to significant memory consumption, but also renders LLM inference memorybound, limiting system throughput [Liu et al., 2024d; Kang et al., 2024]. Low-bit quantization is widely used to compress LLMs for enhanced memory and time efficiency, covering various aspects, including weight-only quantization [Frantar et al., 2022; Lin et al., 2024b], weight-activation quantization [Xiao et al., 2023a; Ashkboos et al., 2024; Liu et al., 2024c; Saxena et al., 2024], and KV cache quantization. Existing studies on KV cache quantization often employ techniques like fine-grained per-channel quantization [Liu et al., 2024d; Kang et al., 2024] or mixed-precision quantization [He et al., 2024; Yang et al., 2024; Duanmu et al., 2024; Hooper et al., 2024], which retain a significant portion of high bit-widths caches. As a result, these methods compromise compression efficiency and fail to maintain robustness under high compression ratio or extremely low average bit-widths.

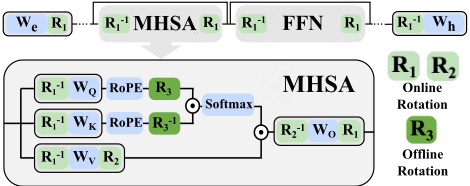

Recently, Hadamard-transform-based rotation technique has demonstrated significant effectiveness in mitigating outliers in 4-bit LLM quantization, with studies such as [Ashkboos et al., 2024; Liu et al., 2024c; Saxena et al., 2024] leveraging rotation technique to achieve 4-bit quantization of weights, activations and KV caches. However, the potential of rotation methods for extremely low-bit KV cache quantization has yet to be fully explored. In this study, we thoroughly analyze the limitations of existing KV rotation settings and

(b) Layer 10 Head 2

(c) Layer 10 Head 30

(d) Layer 10 Head 31

Figure 2: Magnitude of of LLaMA-2-7B Keys. A small number of channels exhibit disproportionately large magnitudes, and these outlier channels vary across different attention heads.

propose RotateKV, a tuning-free method that ensures superior outlier management through the following innovations (see Figure 1 for an illustrative example):

Outlier-Aware Rotation. Recent research [Liu et al., 2024d; Hooper et al., 2024] on outlier behavior in KV cache highlight the Keys contain a small number of channels with disproportionately large magnitudes, while these outlier channels vary across different attention heads, as shown in Figure 2. However, existing Key rotation rely on the fast Walsh-Hadamard transform (FWHT), where the same Hadamard matrix is applied to each head across all layers. Although the FWHT reduces the overhead of online computation, its rotation fails to adapt to the varying distributions of channel-wise outliers. Through a comprehensive comparative analysis of various outlier-aware strategies, we propose outlier-aware rotation, which effectively enhances the adaptability of rotation to diverse outlier distributions while maintaining the computational efficiency of FWHT.

Pre-RoPE Grouped-Head Rotation. Existing rotations of Keys are performed by applying the rotation to each head of the Query and Key after rotary position embedding (RoPE) [Su et al., 2024], which presents two significant limitations that reduce the effectiveness of outlier-aware rotation in mitigating outliers. First, RoPE disrupts the channel magnitude consistency of the Key tensors. Second, applying the rotation through the attention calculation of each head confines outlier reduction to individual heads. To address these issues, we propose a novel pre-RoPE rotation pipeline, which reduces the impact of RoPE on rotation and enables grouped-head rotation to smooth outliers across multiple heads.

Attention-Sink-Aware Quantization. Retaining attention sinks [Xiao et al., 2023b] is crucial for maintaining model performance during compression [Duanmu et al., 2024; Hooper et al., 2024; Liu et al., 2024b]. Existing methods primarily focus on retaining sink tokens at the beginning of sequences, overlooking those in other positions [Yu et al., 2024; Sun et al., 2024]. Inspired by recent studies on the interpretability of attention sinks [Sun et al., 2024; Guo et al., 2024], we propose attention-sink-aware quantization, which leverages the correlation between massive activations [Sun et al., 2024] and attention sinks to precisely identify and retain additional salient sink tokens.

With these innovations, RotateKV fully exploits the potential of rotation for extremely low-bit quantization, addressing the limitations of current KV quantization methods and delivering both accurate and robust 2-bit quantization. Our contributions are summarized as follows:

• We identify the limitation of existing Key rotation that applies the same rotation to all attention heads. We propose outlier-aware rotation, which improves adaptability to diverse outlier distributions, while maintaining the computational efficiency of FWHT.
• Building on our analysis of the impact and limitations of existing post-RoPE rotations, we propose pre-RoPE rotation that effectively mitigates RoPE's influence on rotations while unlocking the potential for grouped-head rotation.
• We propose attention-sink-aware quantization, an innovative approach that provides new insights into identifying attention sinks and extends the current practice of retaining only the sink tokens at the beginning of the sequence.
• To the best of our knowledge, RotateKV is the first method to fully explore and harness the potential of rotation in extremely low-bit KV quantization. Extensive experiments demonstrate that RotateKV outperforms state-of-theart methods while achieving higher compression ratio. RotateKV achieves less than 0.3 perplexity (PPL) degradation with 2-bit on WikiText-2 [Merity et al., 2016] using LLaMA2-13B [Touvron et al., 2023]. Evaluations on the GSM8K [Cobbe et al., 2021] demonstrates that RotateKV maintains strong chain-of-thought (CoT) reasoning capability, with less than 1.7% performance degradation compared to FP16 baseline. RotateKV also exhibits negligible performance degradation in the 40K context-length Needle-in-a-Haystack (NIAH) [Fu et al., 2025] test, as well as in eight challenging longcontext and multi-modal tasks chosen from LongBench [Bai et al., 2023b] and MileBench [Song et al., 2024]. With the current implementation, RotateKV can reduce peak memory usage by 3.97×, supports 5.75× larger batch sizes, and achieves a 2.32× decoding speedup.

2 RelatedWork

2.1 KVCache Quantization

Quantization reduces the bit-widths of numerical representation to compress the KV cache, effectively decreasing memory usage and alleviating the memory-bound challenge. Generally, existing KV cache quantization methods can be categorized into two types based on the quantization dimension of Keys: per-channel and per-token. Due to significant outliers along the channel dimension in Keys, methods such as KIVI [Liu et al., 2024d], Gear [Kang et al., 2024], and KVQuant [Hooper et al., 2024] adopt per-channel quantization to mitigate quantization errors. However, these approaches often require fine-grained quantization or the retention of a certain proportion of outliers unquantized to preserve model performance, both of which compromise the compression ratio. On the other hand, due to the autoregressive nature of LLMs, where tokens are predicted sequentially, pertoken quantization is commonly used in methods such as ZipCache [He et al., 2024], MiKV [Yang et al., 2024], SKVQ [Duanmu et al., 2024], and other less aggressive KV quantization methods [Ashkboos et al., 2024; Liu et al., 2024c; Shah et al., 2024]. These approaches typically focus on the saliency differences between tokens, allocating relatively higher bit-widths to store a significant proportion of salient tokens. However, this also results in a compromised compression ratio. Unlike these methods, RotateKV employs pertoken quantization but eliminates the need to store large proportions of high-bit caches. Besides, experiments show that RotateKV offers superior outlier management compared to per-channel approaches, ensuring robust performance even at higher compression ratio.

3 Preliminary

3.1 Quantization

The n-bit asymmetric integer quantization and dequantization processes can be expressed as:

where ⌊·⌉ indicates round operation. Q(X) and X′ denote the quantized and dequantized values of X. The clamp operation constrains the values within a specified range. clipped max(X) and clipped min(X) denote the operations that truncate the maximum and minimum values of X.

3.2 HadamardMatrix

Hadamard Matrix R is a specific type of orthogonal matrix characterized by entries proportional to {+1,-1}. The Hadamard matrix also satisfies the definition of a rotation matrix, as it is an orthogonal matrix with det(R) = 1. QuIP [Chee et al., 2024] demonstrates that multiplying an rotation matrix leads to a reduction in the maximum entry relative to its norm, effectively mitigating outliers and enhancing quantizability. Walsh-Hadamard Matrix is a particular instance of Hadamard matrix generated recursively as follows, the subscript denoting the dimension of matrix, where k ∈ Z+:

The scaling factor 1 √2 ensures normalization. The recursive structure of the Walsh-Hadamard matrix enables efficient computation via the FWHT algorithm [Hedayat and Wallis, 1978], reducing computational complexity of matrix-vector multiplication to O(n logn), where n represents the dimension of the matrix.

4 Methodology

Section 4.1 outlines the limitations of existing outlierunaware Key rotation and proposes outlier-aware rotation. In Section 4.2, we analyze the impact of RoPE on rotation, then propose pre-RoPE grouped-head rotation. Section 4.3 further introduces attention-sink-aware quantization. Section 4.4 provides a comprehensive summary of RotateKV. The overview of RotateKV is illustrated in Figure 3.

4.1 Outlier-Aware Rotation

Existing Outlier-Unaware Key Rotation

When applying quantization, outliers pose a persistent challenge as they expand the quantization range, reducing the effective bits available for most values. Recently, LLM quantization research [Chee et al., 2024; Ashkboos et al., 2024; Liu et al., 2024c; Saxena et al., 2024; Lin et al., 2024a; Shah et al., 2024] has focused on Hadamard-transform-based rotation technique, which involves multiplying a Hadamard matrix to reduce outliers and improve quantizability. As shown in Figure 4, existing rotations within the attention layer can be classified into two categories: offline rotations (e.g., R1 and R2), which can be fused into the weights prior to inference to eliminate the overhead of online computations, and online rotations (e.g., R3), which are performed dynamically using the FWHT. This differentiation exists because the Query and Key computation relies on RoPE, rendering it incompatible with offline rotations. To reduce the computational overhead during inference, Key rotations typically utilize the efficient FWHT algorithm. For example, QuaRot [Ashkboos et al., 2024] leverages offline random Hadamard matrices and online FWHT to achieve outlier-free 4-bit LLM inference. SpinQuant [Liu et al., 2024c] employs Cayley optimization to enhance offline rotation but continues to utilize the FWHT for online rotations. Due to the structure of the Walsh-Hadamard matrix, as shown in Equation 5, the rotations for each attention head with the same dimension rely on the same Walsh-Hadamard matrix. This constraint limits adaptability to varying channel-wise outlier distributions.

Outlier-Aware Rotation

While adjusting rotation for pre-rotation distributions seems straightforward, it is impractical. Modifying the Hadamard matrices invalidates the FWHT algorithm, increases computational overhead, and necessitates storing multiple matrices, thereby further reducing compression ratio. To adapt rotations to varying channel-wise outlier distributions without compromising the efficiency of FWHT, we introduce the outlier-aware rotation, which preserves the FWHT while enhancing it with outlier-aware operation derived from lightweight calibration. We conduct experiments using various enhancement strategies, including smoothing and reordering. Smoothing [Xiao et al., 2023a; Lin et al., 2024c]

① Outlier-Aware Pre-RoPE Grouped-Head Rotation

② Attention-Sink-Aware Quantization

scales down the Keys by per-channel factors λ and correspondingly scaling up the associated channels in the Query:

Reordering arranges channels across all heads to reduce outliers within each quantization group. As shown in Table 1, experiments on different outlier-aware strategies demonstrate that smoothing fails to maintain performance at 2-bit quantization. For reordering, we find that relying on clustering or other complex permutation methods is unnecessary. Instead, reordering the channels of each token using the indices sorted by the values after rotation can effectively reduce quantization errors (Table 2) and improve PPL. Notably, the channel reordering indices are derived through fast calibration and remain consistent across all tokens throughout inference. The calibration procedure is detailed in Algorithm 1.

Algorithm 1: Calibration for Reordering Indices

Input: Key states after rotation: K ∈ Rb×h×s×d Parameter: Number of layers: L, batch size: b, number of attention heads: h, sequence length: s, dimensionality of each head: d.

Output: Reordering indices Pl for each layer l ∈ {1, 2, . . . , L}

1: for l = 1 to L do

• 2: Reshape K ∈ Rbs×hd .
• 3: Compute channel suml = ∑bs i=1 K[i, :].
• 4: Sort indices: Pl = argsort(channel suml ).
• 5: end for
• 6: return Pl for each l ∈ {1, 2, . . . ,L}.

4.2 Pre-RoPEGrouped-Head Rotation

Existing Post-RoPE Key Rotation

Recent LLMs, including LLaMA [Touvron et al., 2023], Mistral [Jiang et al., 2023] and Qwen [Bai et al., 2023a] use RoPE [Su et al., 2024] to encode token positions. The positional encoding introduced by RoPE is applied to pairs of channels, resulting in a reduction of magnitude consistency within individual channel, as shown in Figure 6. Previous work [Hooper et al., 2024] also highlights that RoPE affects per-channel quantization performance. In this study, we observe that the inconsistency in the magnitudes of channelwise outliers significantly undermines the effectiveness of outlier-aware rotation. As demonstrated in Table 2, the quantization error increases by 145% after applying RoPE.

• (a) Outputs of Decoder Block 10.
• (b) In this example, attention sinks are observed at tokens 0 and 110.
• (a) Key states before RoPE.
• (b) Key states after RoPE.
• (c) Distribution of Channel 51 before and after RoPE.

Figure 6: Figures 6a and 6b illustrate the Key of LLaMA-2-7B, Layer 10, Head 31, before and after RoPE respectively. Figure 6c presents the distribution of the outlier channel.

Pre-RoPE Grouped-Head Rotation

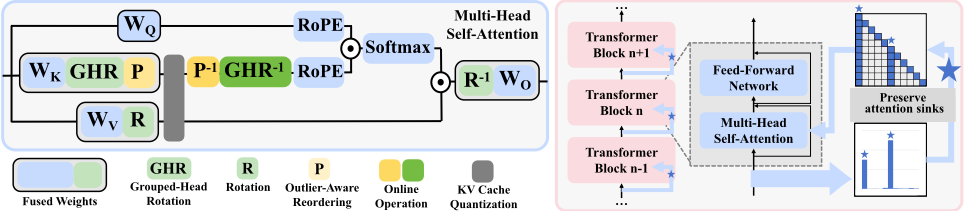

To address the issues associated with post-RoPE rotation, we introduce a novel pipeline that applies the outlier-aware rotation before RoPE. As illustrated in Figure 3, this design not only eliminates RoPE's negative impact on rotation but also facilitates the incorporation of rotation and reordering operations into the weights, thus requiring only the inverse operation during inference. The proposed pre-RoPE rotation also enables grouped-head combined rotation, allowing for more effective outlier reduction across heads. Although increasing the head numbers improves PPL, it also incurs higher computational costs. Therefore, it is crucial to balance computational overhead and performance gains when determining the group size. Typically, as shown in Table 3, a group size of 4 heads is considered a reasonable choice.

4.3 Attention-Sink-Aware Quantization

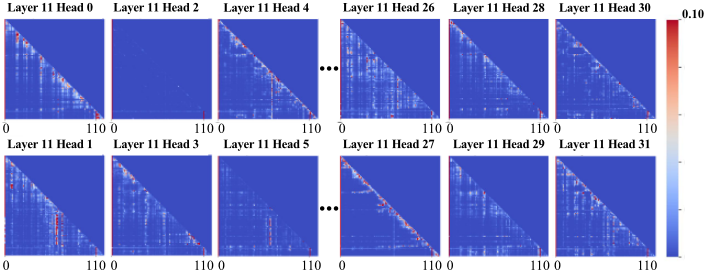

The research [Xiao et al., 2023b] indicates that LLMs tend to treat the initial token as a 'sink', assigning it disproportionately high attention scores. Moreover, [Hooper et al., 2024; Duanmu et al., 2024; Liu et al., 2024b] highlight that the KVs associated with sink tokens are sensitive to quantization, and retaining only the initial token in FP16 can effectively enhance quantization. However, more recent studies [Yu et al., 2024; Sun et al., 2024] suggest that these few-innumber attention sinks can emerge not only at the initial token but also at various other positions, whereas existing practices fail to retain them precisely. One key reason is that efficient attention computation relies on kernels such as FlashAttention [Shah et al., 2024], which directly output the attention results without exposing the intermediate attention scores. This prevents the dynamic identification of additional attention sinks beyond those fixed at the initial token. Inspired by recent studies on the interpretability of attention sinks [Sun et al., 2024; Guo et al., 2024], we propose attention-sinkaware quantization, which leverages massive activations to identify additional sink tokens without relying on attention scores, thereby precisely retaining them during the quantization process. Research on massive activations [Sun et al., 2024]-those activations in the residual sums of Transformer block outputs with significantly larger magnitudes than others-suggests that attention is concentrated on these activations. Specifically, when massive activations occur, the corresponding tokens attract concentrated attention, forming attention sinks. Figure 5 provides a real example from LLaMA2-7B [Touvron et al., 2023]. Therefore, by identifying the massive activations, additional sink tokens can be pinpointed. The process of attention-sink-aware quantization is outlined in Figure 3.

4.4 Summary of RotateKV

In summary, RotateKV first performs fast calibration to obtain reordering indices, then integrates grouped-head rotation and channel reordering into the Key weights. These operations result in outlier-aware rotation of the Keys, making them more suitable for quantization. After updating the KV cache, inverse online reordering and rotation are applied. For the Value, we adopt a simple offline rotation as shown in Figure 3, since Values do not contain outliers like Keys.

5 Experiments

5.1 Experiment Settings

Models and Tasks

To validate the robustness of our method, we evaluate RotateKV on a variety of challenging tasks using both LLMs and visual-language models (VLMs), including LLaMA-27B/13B [Touvron et al., 2023], LLaVA-v1.5-7B/13B [Liu et al., 2024a], Mistral-7B [Jiang et al., 2023], LLaVA-v1.6Mistral-7B [Liu et al., 2023], LLaMA-3-8B [Dubey et al., 2024], and LLaMA-2-7B-80K [Fu et al., 2024]. We begin by evaluating the PPL on the WikiText-2 dataset [Merity et al., 2016]. Then, evaluation on the GSM8k dataset with CoT prompting is conducted to assess RotateKV's capability in handling complex CoT reasoning task. We further test longcontext and multi-modal tasks accuracy across eight tasks from the LongBench [Bai et al., 2023b] and MileBench [Song et al., 2024].

Quantization Settings

We employ per-token asymmetric integer quantization for both Keys and Values, setting the quantization group size of RotateKV to 128 across all evaluations to demonstrate the accuracy and robustness of our method at relatively coarse quantization granularity. The group size for grouped-head rotation is consistently set to 4 across all the models and tasks we tested. We employ FP8 to store the scale parameters and INT8 for the zero-points, since this approach does not affect the results but improves the overall compression rate. The calibration process is highly efficient, taking less than five minutes on a single RTX 4090 GPU for the LLaMA2-7B model using the WikiText-2 dataset. Additionally, the evaluation results demonstrate that calibration performed on WikiText-2 generalizes effectively to other datasets.

5.2 Main Results and Analysis

Perplexity Evaluation

We use the original KV rotation and quantization scheme from QuaRot [Ashkboos et al., 2024] as one of the baselines to highlight the improvements of our proposed adaptive rotations. Additionally, we include KVQuant [Hooper et al., 2024] for PPL comparison, which leverages several techniques such as non-uniform quantization and per-vector dense-and-sparse quantization, demonstrating state-of-the-art PPL result. To ensure a fair comparison, for QuaRot we only quantize the KV cache, and for KVQuant, we adopt the scheme that preserves 0.5% FP16 outliers, which aligns the average bit-widths of our approach. As shown in Table 4, compared with the FP16 baseline, RotateKV shows a PPL degradation of 0.01 at 4-bit quantization, less than 0.1 at 3bit, and less than 0.3 at 2-bit on LLaMA-2-13B. Compared to QuaRot, which exhibits significant PPL degradation at 2-bit quantization, our method remains effective even at extremely low bit widths. Compared to KVQuant, RotateKV consistently demonstrates a PPL improvement of around 0.1 at 2-bit quantization across all LLMs we tested. Notably, RotateKV uses the simpler integer quantization.

GSM8K Evaluation

The GSM8K dataset [Cobbe et al., 2021] is widely used to evaluate the arithmetic reasoning capabilities of LLMs. This task presents significant challenges and evaluations on it can effectively show the impact of compression methods on model performance. As shown in the Table 5, RotateKV maintains strong CoT reasoning capabilities, with less than 1.7% performance degradation compared FP16 baseline. It outperforms existing methods even at lower average bitwidths, demonstrating the robustness of our approach. Notably, lower average bit-widths lead to higher compression ratio, enabling support for longer context lengths and larger batch sizes on the same GPU setup.

LongBench and MileBench Evaluations

To further demonstrate the robustness of RotateKV, we conduct experiments on eight long-context and multi-modal tasks selected from LongBench [Bai et al., 2023b] and MileBench [Song et al., 2024]. For comparison, we include KIVI [Liu et al., 2024d], which uses per-channel Key quantization and shows negligible performance degradation with a group size of 32. As shown in Table 6, compared to the FP16 baseline, KIVI with a 128 quantization group size [Liu et al., 2024d] exhibits significant performance degradation of 46.5% on the LLaMA-2-7B and LLaVA-v1.5-7B models. In contrast, our method demonstrates negligible average accuracy loss at the same quantization group size, with less than 1.4% performance loss on Mistral-7B and LLaVA-v1.6-Mistral-7B.

5.3 Ablation Study

Ablation Study of the Proposed Innovations

Starting with the original rotation method from QuaRot [Ashkboos et al., 2024], we progressively incorporate the proposed innovations to evaluate their individual contributions. As shown in Table 7, the innovations introduced by RotateKV effectively mitigate PPL degradation.

Ablation Study on Quantization Granularity

To assess the impact of finer quantization granularity, we perform PPL evaluations with group sizes of 64 and 32. The results in Table 8 demonstrate that RotateKV continues to achieve better model performance preservation at smaller quantization group sizes. For instance, the PPL only drops by 0.18 on the LLaMA-2-13B model at 2-bit with a group size of 32.

5.4 Efficiency Analysis

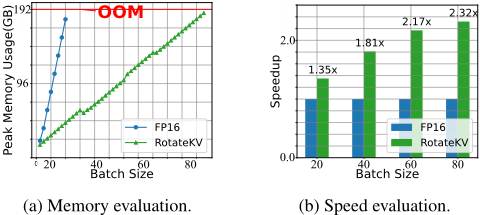

In this section, we evaluate the efficiency of the current implementation. We use Triton [Tillet et al., 2019] for the quantization and dequantization kernels, along with an optimized CUDA kernel for FWHT, following [Dao, 2024]. Evaluations are conducted on LLaMA-2-7B [Liu et al., 2024a] with a 8-NVIDIA 4090D (24GB) setup, FlashAttention [Shah et al., 2024] enabled. The batch size is progressively increased with an input length of 500 tokens until an out-of-memory (OOM) error occurs. As shown in Figure 7a, RotateKV reduces peak memory usage by 3.97× compared to the FP16 baseline and supports 5.75× larger batch sizes. In terms of speed, RotateKV achieves a 2.32× speedup during the decoding phase, as shown in Figure 7b. Notably, the efficiency can be further improved through techniques like kernel fusion.

6 Conclusion

In this paper, we explore the potential of rotation technique for 2-bit KV quantization. With the proposed innovations, RotateKV adaptively rotates the KV cache in an outlier-aware manner, demonstrating outstanding outliers control. Comprehensive evaluations show that RotateKV effectively preserves model performance even at high compression ratio, addressing the limitations of existing KV quantization methods and demonstrating state-of-the-art performance in both compression efficiency and accuracy. Future work will focus on optimize RotateKV's implementation to further reduce the overhead associated with online operation during LLM inference.
