IterMeme: Expert-Guided Multimodal LLM for Interactive Meme Creation with Layout-Aware Generation

1 Introduction

Memes, as visual symbols that convey emotions through images, have become an increasingly important communication medium on social media. Consequently, automating meme creation to align with user intentions has emerged as a key research focus.

High-quality memes typically not only present engaging visual content, but also incorporate humorous text components to express users' emotions. However, existing meme generation models lack mechanisms for producing fully integrated components, posing challenges in generating highquality memes. The incomplete components include autotext-less, denoting the inability to autonomously generate humorous visual captions for memes as shown in fig. 1 (c), and personalization-less, highlighting the absence of support for personalized meme generation as shown in fig. 1 (d).

∗Corresponding author.

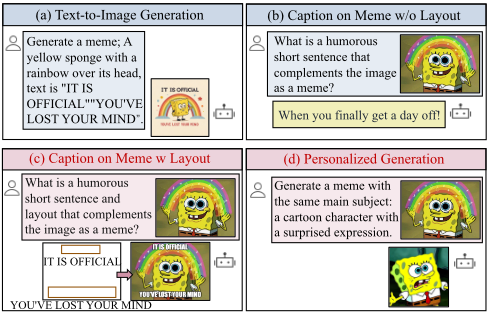

Specifically, some advanced text-to-image (T2I) generation models [Labs, 2024] and tools [ByteDance, 2024; Ideogram, 2024; Recraft, 2024] are capable of incorporating simple text into images based on user input as shown in fig. 1 (a). However, these models require users to explicitly define the text to be generated and often struggle with precise text rendering. Meanwhile, studies [Zhong et al., 2024; Chen et al., 2024] leveraging the powerful understanding capabilities of MLLMs have demonstrated the ability to creatively generate humorous captions with emotional enhancements for memes as shown in fig. 1 (b). Nevertheless, these approaches lack essential layout control for captions, a critical component for effective meme creation. Furthermore, Most Existing approaches [Ye et al., 2023; Wang et al., 2024b] for meme personalization primarily focus on injecting additional image features into diffusion models, overlooking the interactive collaboration in meme creation. While Kosmos-G [Pan et al., 2023] and CAFE [Zhou et al., 2024b] have introduced interactive personalized generation methods within MLLMs, the challenge of integrating multi-task capabilities into a unified architecture remains to be explored.

To address these limitations, we innovatively propose IterMeme, an end-to-end interactive meme creation framework, which leverages a unified MLLM to enable collaborative task execution and resource sharing across multiple meme creation components, creating high-quality memes through user interaction. On the one hand, to address the issue of auto-text-less, we empower MLLM to directly perform joint generation of captions and layouts by effectively capturing the emotional semantics embedded in memes. Additionally, We develop an automated parsing pipeline that extracts memes into structured <image, caption, layout>triples, addressing the scarcity of datasets with content-aware layouts. Using this pipeline, we construct MemeCap, the first largescale dataset that considers the correlation between captions and meme layouts. On the other hand, to tackle the issue of personalization-less, we innovatively propose enhancing MLLM with integrated personalization capabilities. Specifically, we implement a parameter-shared dual-LLM architecture that separately processes reference images and textual descriptions. This architecture not only efficiently decouples the complex representations within the LLM but also further captures detailed information from reference images through reconstruction. To incorporate target IP features, we introduce M 3 OE, an expert-guided module specialized in personalized generation. This module comprises a meticulously designed feature extraction module and a feature fusion module. The feature extraction module captures fine-grained IP visual representations from reference images, while the feature fusion module aligns and integrates these features with textual semantics to produce unified multimodal representations. Additionally, we introduce the feature extraction and fusion modules into every layer of the LLM, enabling dynamic adjustments to the visual and semantic information across different layers. Comprehensive evaluations demonstrate IterMeme's effectiveness in automated caption generation, precise layout control, and high-quality personalized meme creation, marking a major breakthrough in the field.

In summary, our contributions are as follows:

• We propose IterMeme, the first end-to-end interactive meme creation framework leveraging unified MLLM. The expert-guided module M 3 OE effectively addresses the challenge of interactive meme personalization.
• We introduce MemeCap, the first large-scale dataset for meme creation, constructed via an automated parsing pipeline to address the scarcity of training data in this domain.
• Experiments demonstrate that our approach achieves competitive performance, paving the way for new possibilities in meme creation.

2 RelatedWork

Unified multimodal model. Multimodal models designed to unify visual tasks have recently gained significant attention within the research community. These models exploit the synergy between understanding and generation tasks, enabling mutual enhancement and overall performance improvements. For instance, studies such as Chameleon [Team, 2024] and Unified-io 2 [Lu et al., 2024] tokenize multimodal data into a shared semantic space, facilitating seamless integration of visual and textual modalities. DreamLLM [Dong et al., 2023] incorporates an external diffusion decoder, allowing direct sampling from the multimodal space to enable interleaved content generation. Transfusion [Zhou et al., 2024a] and Show-o [Xie et al., 2024] unify autoregressive text modeling with discrete diffusion modeling, utilizing a single Transformer architecture.

Meme caption generation. Meme captioning represents a practical application of humor generation [Amin and Burghardt, 2020]. Recent advancements in this field include CLoT [Zhong et al., 2024], which explores creative captioning capabilities, and XMeCap [Chen et al., 2024], which leverages multi-granularity similarities between images and captions to enhance multi-image meme captioning performance in LLMs through reinforcement learning. State-ofthe-art MLLMs [Wang et al., 2024a; Liu et al., 2024] have also demonstrated effectiveness in addressing meme captioning tasks. However, they lack the ability to control layout, a critical aspect of meme creation.

Personalized image generation. Diffusion models [Ho et al., 2020; Rombach et al., 2022; Zhang et al., 2024a; Zhang et al., 2024b] have made significant advancements in personalized generation. For instance, DreamBooth [Ruiz et al., 2023] binds special tokens to specific concepts, while Textual Inversion [Gal et al., 2022] captures new concepts by learning new embeddings in the input space. However, both methods require retraining whenever a new concept is introduced, which limits their scalability. Approaches such as IPAdapter [Ye et al., 2023], InstantID [Wang et al., 2024b], and ConsistentID [Huang et al., 2024] address this limitation by training additional image encoders, enabling inference with just a single image. Despite these improvements, these methods fall short in enabling personalized interactions. CAFE [Zhou et al., 2024b] takes a step further by leveraging LLMs to process diverse or even ambiguous user inputs; however, integrating multitasking, including interactive personalization, into a unified MLLM remains challenging.

3 Methods

3.1 Problem Setup

The goal of meme creation is to generate a meme that combines visual elements, such as images and text, based on a user-provided textual description of attributes, expressions, actions, and other relevant details, along with an optional reference image. The input consists of a textual description of the meme, denoted as T, and an optional reference image. The generated meme, should include N captions {Ci}N-1 i=0 and corresponding layouts {Bi}N-1 i=0 . If a reference image Iref is provided, the generated meme must preserve the IP of the reference to ensure content consistency.

3.2 The Framework of IterMeme

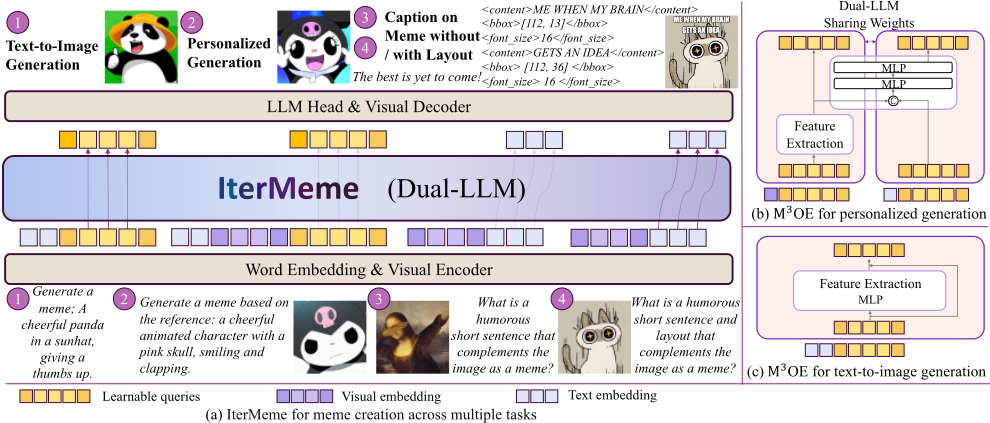

In this section, we present a detailed overview of the proposed interactive meme creation framework, IterMeme, as shown in fig. 2. Through user interaction, the framework captures users' intentions and supports the entire workflow, spanning from meme content understanding to creative generation, while also addressing the auto-text-less and personalizationless challenges mentioned in section 1 by exploring innovative solutions.

To achieve this, we propose leveraging a unified MLLM, which introduces a special token to automatically determine when to generate an image. When the t -th token is predicted as the special token, a series of learnable queries q are used to query the LLM Fθ based on the preceding input sequence x<t+1 . This process is expressed as p := Fθ(q, x<t+1, V ) , where V represents the set of visual embeddings from the images in the previous sequence. The result p serves as the conditional input for Stable Diffusion (SD) to generate images 1 .

Layout representation. To enable the MLLM to directly generate layouts, an appropriate layout representation is required. Many studies [Hsu et al., 2023; Yang et al., 2024] represent layouts as bounding boxes defined by the top-left and bottom-right coordinates [xmin, ymin, xmax, ymax]. However, even slight numerical perturbations can affect character spacing and font appearance. Considering that text on memes is typically arranged horizontally with uniform letter spacing and a single font color, and to enhance the robustness of the model, we represent layouts as tuples based on the midpoint coordinates and font size: B = ([xcenter, ycenter], fontsize) , where xcenter = xmin+xmax 2 , ycenter = ymin+ymax 2 , and fontsize =

1 For simplicity, we omit the projection layer between the LLM and SD.

ymax-ymin. It is worth noting that, given a fixed letter spacing, these two representations are reversible.

Dual-LLM architecture. For personalized generation, the user provides inputs in the form of a reference image and a textual description < Iref, T >. The LLM produces an embedding p := Fθ(q, xT , Vref) , which serves as the input to SD ϵθ. This embedding effectively integrates semantic information from both the reference image and the text description but cannot fully capture the fine-grained visual features of the reference image. Therefore, to preserve the critical details in the reference image, it becomes essential to reconstruct it accurately. To achieve this with minimal architectural disruption, we employ a dual-LLM architecture with shared parameters, where the reference image and textual description are explicitly decoupled and fed separately into the two branches of the architecture. This results in distinct output embeddings: pref := Fθ(qref, Vref) for the reference image and pT := Fθ(qT , xT ) for the text description. When the target of generation is I , the training loss is defined as the sum of the mean squared errors (MSE) for the reference image reconstruction loss and the target generation loss: Ldual = Lrec +Lgen, where Lrec = Eϵ∼N(0,1),t∥ϵ-ϵθ(pref, E(Iref), t)∥ and Lgen = Eϵ∼N(0,1),t∥ϵ - ϵθ(pT , E(I), t)∥, with E representing the encoder.

M 3 OE. To prevent the parameter updates of the reconstruction process and the target generation process from interfering with each other, and to ensure the target generation branch incorporates essential reference image information for consistent generation, we design M 3 OE , a module dedicated to consistent personalized generation that seamlessly integrates these capabilities into the MLLM. M 3 OE consists of a feature extraction module Φ and a feature fusion module Ψ . The feature extraction module is a multilayer perceptron (MLP)

layer with residual connections, specifically designed for the reference image branch of the dual-LLM to effectively extract visual features and capture fine-grained details. The feature fusion module includes two MLP layers. The first layer is designed without residual connections, while the second incorporates residual connections to ensure stability and expressive capability during feature fusion. For its input, the concatenation of intermediate embeddings from the reference image and textual description branches in the dual-LLM architecture is used.

Multi-layermechanism. To enable the framework to adapt dynamically to varying levels of visual and semantic information, we introduce feature extraction and fusion modules at each layer of the LLM. Specifically, for the reference image branch, the i -th layer output of the LLM for the learnable queries, which is represented as ˆ qi+1 ref := F i θ (qi ref , Vref), is passed through the feature extraction module to obtain qi+1 ref = Φi (ˆ qi+1 ref ). The resulting intermediate embedding qi+1 ref is then concatenated with the i-th layer output of the LLM for the textual description branch ˆ qi+1 T := F i θ (qiT , xT ), and fed into the feature fusion module, producing the updated embedding qi+1 T = Ψi (ˆ qi+1 T , qi+1 ref ).

Training strategy. We adopt a two-stage training approach to optimize the proposed framework.

In the first stage, we utilize the MemeCap dataset introduced in section 3.3, along with a subset of the I2T category from the Oogiri-GO dataset introduced in [Zhong et al., 2024]. To facilitate structured output, we introduce three pairs of special tokens to encapsulate caption content, central coordinates, and font size, effectively extending the original LLM vocabulary to constrain the output format. Detailed instruction fine-tuning templates and data transformation processes are provided in the appendix. During this stage, only the LLM is fine-tuned to ensure a comprehensive understanding of input memes, generate humorous captions, and achieve accurate layout control. The optimization process is guided solely by the language model loss.

In the second stage, we use the mixed data of T2I and personalized generation that we have constructed, with the construction process detailed in the appendix. As observed in section 4.3, for the T2I data, the feature extraction module in M 3 OE can focus on enhancing image generation, leading to improved visual fidelity and precise text alignment. Therefore, we modify the output of M 3 OE as follows:

where τ represents the type of data. To enhance the model's visual representation capability while preserving the knowledge acquired by the LLM during the first stage, we train the proposed M 3 OE, SD, and the conditional projection layer.

3.3 MemeCap Data Construction

As discussed in section 1, existing models lack the capability to independently determine the content or layout of captions. To address this limitation, we propose the MemeCap dataset in this section. Specifically, we collect a substantial dataset of Chinese and English memes from the internet. The primary challenge lies in decomposing these memes into <image, caption, layout>triples. To tackle this, we develop an innovative data construction pipeline capable of accurately separating text from images and establishing a precise oneto-one correspondence between captions and their layouts.

Image scraping and cleaning. Our pipeline selects data sources based on language. Chinese memes come from platforms like Weibo 2 , while English memes are gathered from imgflip 3 . On imgflip, each meme template includes multiple user-generated memes with their corresponding upvote counts. We select the top 10 upvoted memes for each template to ensure quality. To eliminate inappropriate content such as pornography, violence, or gore, an initial filtering step uses the Qwen2-VL [Wang et al., 2024a] model, followed by manual review to maintain data cleanliness and safety.

Text removal. Text removal is a critical step in data construction. To ensure high-quality text removal, we design a two-step removal process. First, a text erasure model produces an initial removal result. Then, SDXL [Podell et al., 2023] inpainting refines the non-text regions and incomplete text-erased areas. The binarized mask for inpainting is generated based on the results of Text Detection and Recognition. Experiments in the appendix show that relying solely on text erasure causes blurred text regions, negatively impacting subsequent training, while solely using inpainting risks preserving distorted characters. The combination of these two steps effectively resolves these issues.

Text detection and recognition. Precise text detection and recognition are crucial for the two-step removal process. To extract erased text regions, we calculate the pixel differences between the original meme Iori and the preliminary erasure result, followed by applying a threshold to remove edge noise, producing Idiff. Text recognition is then performed on both Iori and Idiff using PaddleOCR 4 , generating the corresponding text layouts Bori and Bdiff. Finally, the Intersection over Union (IoU) [Yu et al., 2016] between Bori and Bdiff is calculated to filter out layouts with low overlap, while safety filtering is applied to the captions.

The MemeCap dataset constructed through this pipeline includes 13,977 English samples and 22,457 Chinese samples.

4 Experiments

4.1 Experimental Settings

Implementation details. The unified MLLM for understanding and generation is built upon DreamLLM [Dong et al., 2023] as the base model, with SD2.1 [Rombach et al., 2022] serving as the visual decoder. In the first training stage, the AdamW [Loshchilov, 2017] optimizer is employed with a learning rate of 1 × 10-5 and a weight decay parameter of 0. The batch size is set to 16, and gradient accumulation is performed over 2 steps to optimize computational efficiency. In the second training stage, the newly introduced M 3 OE module is initialized to 0 and trained using the same hyperparameter settings as the first stage.

2 https://weibo.com/

3 https://imgflip.com/

4 https://github.com/PaddlePaddle/PaddleOCR

Evaluation datasets and metrics. Our evaluation dataset comprises 60 independently collected IPs, spanning categories such as real people, cartoons, and anime. These IPs are excluded from the training set and are used as reference images. For each IP, we provide a corresponding prompt that encompasses various attributes and expressions to ensure a diverse range of test scenarios. To thoroughly assess the performance of our framework in meme creation, we follow the setup of XMeCap [Chen et al., 2024], evaluating the performance of the generated captions from four key perspectives: Informativeness, Relevance, Creativity, and Humorous. These assessments are conducted using GPT-4o [Achiam et al., 2023], with detailed evaluation instructions provided in the appendix. For layout generation capabilities, we introduce metrics of Effectiveness and Readability, which are further described in the appendix. Additionally, we use the CLIP-T [Radford et al., 2021] metric to quantify text-image alignment in personalized generation and the DINO [Oquab et al., 2023] and CLIP-I metrics to evaluate IP preservation. A user study is included to assess the overall quality of the generated memes. We invite users from diverse backgrounds to select their preferred memes based on text alignment, image quality, and overall appeal.

Baselines. We select different baseline models tailored to each specific task. To evaluate caption generation capabilities, we select DreamLLM[Dong et al., 2023], CLoT[Zhong et al., 2024], LLaVA-v1.6 [Liu et al., 2024], and Qwen2VL[Wang et al., 2024a] as baseline models. Due to the lack of existing methods for layout generation, we adopt a random layout generation approach, where three constrained random numbers are generated for each caption to represent the center coordinates and font size. Additionally, we utilize the zero-shot [Kojima et al., 2022] and few-shot [Brown et al., 2020] capabilities of MLLM for layout generation. For personalized generation, we select DreamLLM [Dong et al., 2023], DreamBooth [Ruiz et al., 2023], Textual Inversion [Gal et al., 2022], and IP-Adapter [Ye et al., 2023] as baselines. Furthermore, we include state-of-the-art methods such as Doubao [ByteDance, 2024], FLUX [Labs, 2024], Ideogram [Ideogram, 2024], and Recraft [Recraft, 2024] for overall quality comparisons.

4.2 Comparison to Baselines

Quantitative comparison. We present our quantitative comparison results in table 2. The results for caption generation in table 1b show IterMeme surpasses DreamLLM by 22.8% in Creativity and 32.4% in Humorous, demonstrating the effectiveness of the proposed MemeCap dataset. While CLoT [Zhong et al., 2024] excels in Creativity by encouraging remote association thinking in LLMs, its lower scores in T2I

Doubao

IterMeme (Ours)

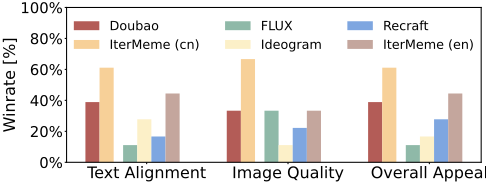

Figure 4: Comparison of user study results for Meme Creation. We compare Chinese and English memes, and our observations indicate that our method achieves competitive performance.

Personalized Generation

Model CLIP-T CLIP-T CLIP-I DINO

Exp1

31.97 29.379 85.37 63.77

Exp2 31.908 29.485 86.082 66.37

Exp3 32.611 29.517 86.14 67.55

(a) Comparison for personalized generation.

(b) Comparison for caption generation.

(c) Comparison for layout generation.

Table 2: Quantitative comparisons on various metrics. The best results are marked in bold.

Humorous and Relevance undermine its viability for meme creation. In contrast, IterMeme delivers captions with superior Humorous and Informativeness while balancing Relevance and Creativity, showcasing its exceptional ability to enhance memes' emotional expressiveness. For layout generation, the results in table 1c indicate that IterMeme achieves the highest scores in Effectiveness and Readability, demonstrating superior control over caption layouts. Notably, all baselines use the same IterMeme-generated captions, with random layouts constrained to have midpoint coordinates within image boundaries and font sizes set to [H/20,H/8], where H represents the image height. Similarly, the personalized generation results in table 1a show IterMeme outperforming all baselines, with a 10.378% CLIP-I and 2.094% CLIP-T improvement over DreamLLM. This highlights the effectiveness of the proposed M 3 OE framework in guaranteeing IP-consistent images and enhanced text-image coherence.

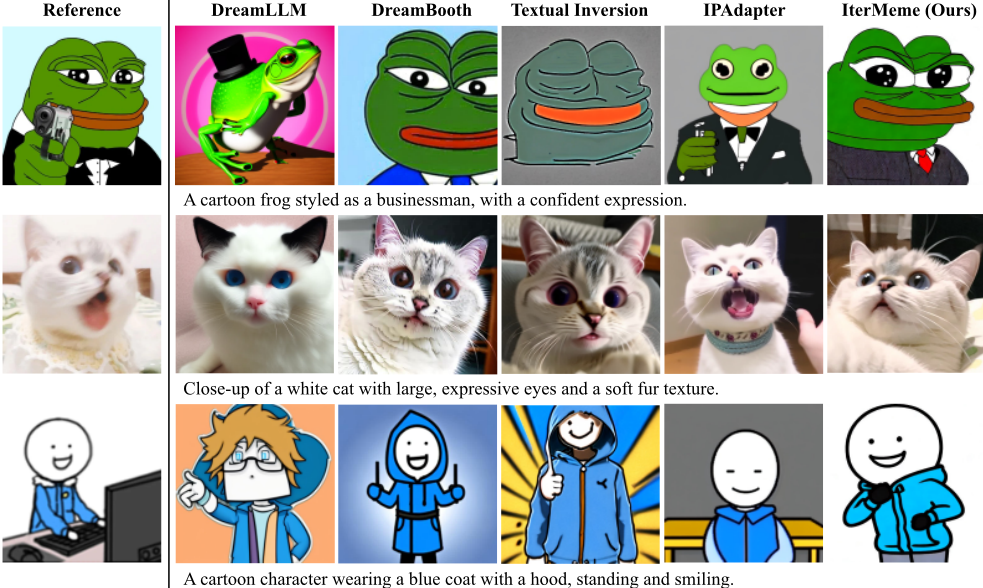

Qualitative comparison. In fig. 3, we present a qualitative comparison of personalized generation results between IterMeme and the baseline models. The proposed model significantly outperforms the baselines in terms of image generation quality, exhibits superior IP consistency, and achieves stronger alignment with textual prompts. Additional qualitative results are provided in the appendix for further reference.

User study. Our user study involves 24 users, each evaluating 10 randomly selected cases (5 in Chinese and 5 in English). Due to language limitations, Doubao is evaluated solely on Chinese data. Since the baseline models cannot automatically generate meme captions, we manually insert text matching our model's outputs into their prompts to ensure a fair comparison. In total, we collect 720 votes, with the results shown in fig. 5. The results show that IterMeme significantly outperforms Doubao in all three dimensions for Chinese. For English, while IterMeme matches FLUX in image quality, its superior text alignment leads to higher overall appeal. Additionally, fig. 4 provides a series of comparative results for further evaluation. From these comparisons, it is observed that Doubao generates flawed text, FLUX lacks text generation capability, and Ideogram and Recraft produce sticker-like outputs with poor caption-visual alignment.

4.3 Ablation Study

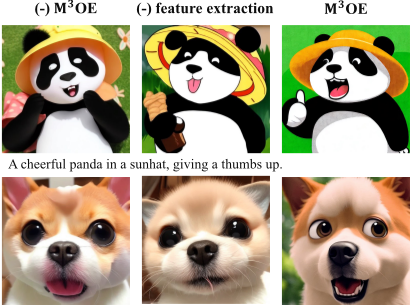

We conduct an ablation study on the proposed M 3 OE module through two comparative experiments. The first experiment, denoted as Exp 1, evaluates the necessity of the M 3 OE module by removing it from the model, and to enable effective training, we also optimize the parameters of the learnable queries. The second experiment, denoted as Exp 2, assesses the effectiveness of the feature extraction module within M 3 OE by omitting it during training on T2I data. Our method is denoted as Exp 3. The experimental results, presented in table 1, demonstrate a significant performance

一只卡通小狗，眼睛睁得大大的，嘴巴微张，表情非常惊讶。

( A cartoon puppy with big, wide eyes and a slightly open mouth,

looking extremely surprised. )

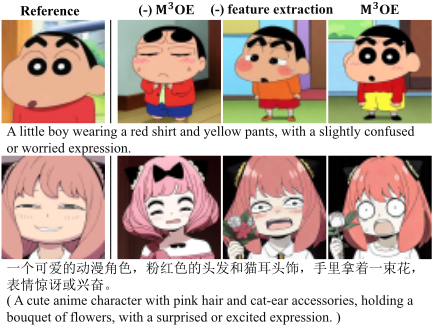

Figure 7: Ablation study on personalized generation confirms the effectiveness of the M 3 OE module.

drop across all metrics in both experiments. Additionally, the qualitative results in fig. 7 confirm that incorporating M 3 OE equips the MLLM with personalized generation capabilities. Applying the feature extraction module of M 3 OE to T2I data further yields higher-quality outputs as shown in fig. 6, along with improved text alignment and enhanced IP consistency.

5 Conclusion

In this paper, we propose IterMeme, a framework leveraging a unified MLLM to address incomplete component integration in meme creation. The proposed MemeCap dataset facilitates precise caption-layout control, while the expert-guided M 3 OE module enables fine-grained IP extraction and semantic alignment. A two-stage training strategy further achieves exceptional caption-layout generation and interactive personalization, filling the gaps in existing approaches.

Acknowledgments

This work is supported by the National Nature Science Foundation of China (62425114, 62121002, U23B2028, 62232006). We acknowledge the support of GPU cluster built by MCC Lab of Information Science and Technology Institution, USTC. We also thank the USTC supercomputing center for providing computational resources for this project.
