Diff-LMM: Diffusion Teacher-Guided Spatio-Temporal Perception for Video Large Multimodal Models

1 Introduction

Recently, multimodal large language models (MLLMs) [Zhang et al., 2023; Li et al., 2023a] have demonstrated significant advancements in visual understanding tasks, including image or video recognition [Li et al., 2024b; Ma et al., 2024; Meng et al., 2024; Wang et al., 2024b; Meng et al., 2025], visual question-answering [Li et al., 2023a] and object segmentation [Dang et al., 2023b; Dang et al., 2024a; Dang et al., 2024c]. However, the application of MLLMs in long video understanding remains challenging due to the complexity of modeling spatio-temporal dependencies across consecutive video frames. These models must effectively reason about complex dynamics, intricate scenes, and subtle visual details over extended periods, akin to human information extraction from complex visual streams. Consequently, developing efficient and effective solutions for this task remains a significant challenge, which limits its application in time-sensitive fields [Dang and Yang, 2021; Dang and Yang, 2022].

Existing works in video-based multimodal tasks can be divided into two categories. The first category includes CLIP-based methods (e.g., Video-LLaMA [Zhang et al., 2023], MA-LMM [He et al., 2024], and TimeChat [Ren et al., 2024]), which extract features using CLIP and convert them to the LLM embedding space via multi-level perception (MLP) or Q-Former. These methods prioritize semantic understanding but overlook spatial context, which limits their ability to model spatio-temporal relationships. The second category involves self-supervised backbones(e.g., DINO [Oquab et al., 2023]), or combinations of CLIP and self-supervised encoders [Zong et al., 2024]. These approaches capture more visual cues, balancing coarse-grained and fine-grained understanding. However, they have limitations: (a) multiple encoders increase computational costs, making them impractical for processing long videos, and (b) the potential of large-scale generative models, such as diffusion models, to improve MLLM performance remains unexplored. How to efficiently and effectively capture the complex spatio-temporal dynamics present in long video sequences remains a challenging problem.

To address the aforementioned challenges, we propose a novel framework, Diff-LMM, which introduces diffusionguided supervision into large multimodal models. Our solution is simple, efficient, and effective, integrating pre-trained knowledge from diffusion models to enhance fine-grained understanding. As shown in Figure 1, the core idea is using diffusion features as intermediate supervision within the visual encoding layers and employing multi-level distillation loss to achieve feature alignment. Diff-LMM offers several advantages: (a) Instead of directly incorporating the diffusion backbone as the visual encoder, the teacher-student distillation mechanism allows the model to learn rich pre-trained features without increasing inference costs. (b) Intermediate intervention in the visual encoding layers complements missing visual details that are challenging to capture through language supervision alone. (c) By employing multi-level alignment loss, we alleviate the representation space gap between the diffusion model and our encoder, achieving adaptive and effective alignments.

Experiments demonstrate that Diff-LMM achieves stateof-the-art performance across multiple long video understanding benchmarks. Ablation analysis further confirms that visual representations from pre-trained diffusion models, such as DiT, offer a positive effect in fine-grained tasks within long video scenarios. These findings underscore the substantial value of diffusion models in enhancing multimodal video models, particularly in complex environments.

We summarize our main contributions as follows:

• We present a novel diffusion-based supervision for MLLMs, utilizing a meticulously crafted feature alignment strategy to enhance fine-grained representations of long videos.
• We introduce an adaptive multi-level alignment mechanism that dynamically adjusts alignment granularity across various levels, effectively bridging the representation gap between teacher and student models and establishing robust inter-model correspondences.
• Extensive experiments demonstrate that leveraging pretrained diffusion models significantly improves performance on fine-grained tasks in long video scenarios, underscoring the potential of diffusion models as a powerful tool for advancing multimodal video models in complex, dynamic environments.

2 RelatedWorks

2.1 Long Video Understanding

Recent advancements in MLLMs have significantly improved their application to video understanding tasks. To process video inputs, image-language models [Li et al., 2023a] typically flatten spatio-temporal features into one-dimensional sequences and utilize a pre-trained large language model (LLM) for decoding. However, these approaches face challenges in capturing temporal dynamics due to the context length limitations of LLMs and the high GPU consumption required for processing.

To address these challenges, several works [Maaz et al., 2023; Dang et al., 2023a; Dang et al., 2024b] have attempted to uniformly sample from video, aiming to preserve as much information as possible under limited input conditions. For instance, Video-ChatGPT [Maaz et al., 2023] applies average pooling modules to reduce input dimensions, which, however, results in a significant loss of visual details. Other works aim to preserve the maximum number of frames by designing specialized memory modules. Inspired by the AtkinsonShiffrin memory model, MovieChat [Song et al., 2024] introduces memory modules to retain detailed video content effectively. However, these methods still lack explicit temporal modeling, resulting in suboptimal performance. In contrast, Video-LLaMA [Zhang et al., 2023] utilizes an additional query transformer to directly model temporal relationships, although this increases computational complexity. MA-LMM builds on these previous works by introducing memory modules and memory compression mechanisms, significantly reducing GPU consumption. Despite these advancements, most of these models are primarily focused on retaining more information from video. However, there is still relatively little research directly modeling the complex spatio-temporal dynamics of video, and improving a model's ability to capture these complex spatio-temporal representations remains a significant challenge.

2.2 DiffusionModels for Representation Learning

Diffusion model [Ho et al., 2020] is a type of deep generative model that uses the final state of a Markov chain starting from a standard Gaussian distribution to approximate the distribution of natural images. Although diffusion models are mainly designed for generation tasks, the denoising process allows for the learning of both low- and high-level features from the input data [Fuest et al., 2024].

Recent research has demonstrated the application of diffusion models as representation learners [Xiang et al., 2023; Chen et al., 2024], with improved models learning better representations [Xiang et al., 2023]. Although the representational power of diffusion models is grounded in wellestablished theoretical foundations, leveraging off-the-shelf diffusion models for non-generative tasks poses significant challenges [Yang and Wang, 2023]. In previous research, to fully leverage the representations extracted by diffusion models, these methods [Xiang et al., 2023] typically require architectures similar to time-conditioned U-Net, a specialized structure ill-suited for long video understanding tasks. Due to the task mismatch between the teacher model and the student model, applying diffusion for knowledge distillation presents a noteworthy challenge. To address this issue, we employ a novel adaptive multi-level alignment strategy, offering a method for integrating high-quality representations. This allows us to leverage diffusion-based supervision to enhance the model's capabilities.

3 Method

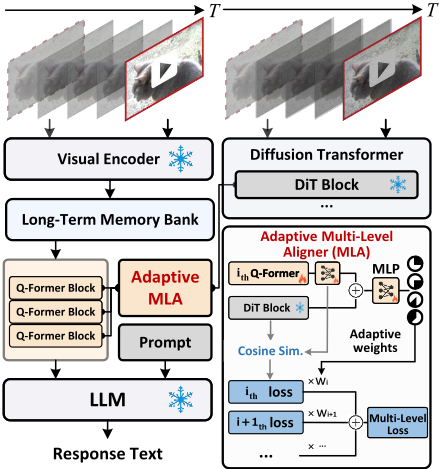

To address the challenges of modeling fine-grained temporal and spatial relationships in the video, as shown in Figure 2, we propose Diff-LMM. This novel framework integrates diffusion-based supervision into video MLLMs. Unlike traditional methods that directly use CLIP and Q-Former for visual feature extraction, our approach employs diffusion encoders at intermediate layers. This allows diffusion features to enhance CLIP representations through feature alignment and knowledge distillation loss.

3.1 Visual Encoding

Our method, inspired by cognitive processes [Wu et al., 2022], sequentially processes video frames to manage longterm visual information effectively. Given a video with N frames, we utilize a pre-trained visual encoder to extract features from each frame, forming a sequence S = [s1, s2, . . . , sN], where sn ∈ RP×C represents the feature of the n-th frame, P is the number of image tokens, and C is the feature dimension per token. To enhance both temporal and spatial representation, we incorporate a temporal position encoding (PE) mechanism, integrating temporal dynamics with the frame-level features ft:

where ft ∈ RP×C . The visual features are organized into a hierarchical memory bank using a dynamic compression strategy. This strategy reduces redundancy while retaining essential temporal features, ensuring rich information preservation and computational efficiency-key for long-term dynamic analysis.

Querying Transformer with Memory Banks. Previous studies [Zhang et al., 2023; He et al., 2024] have introduced the Querying Transformer (Q-Former) to capture temporal dynamics across frames and multimodal alignment between visual cues and queries in videos. The Q-Former models long time series using learnable query vectors z ∈ RN×C , where N is the number of queries and C is the feature dimension.

To improve the dynamic modeling of long-term temporal information, we adopt the long-term memory mechanism [He et al., 2024], which combines both visual and query memory banks. The visual memory bank stores feature representations of all historical frames extracted by the frozen visual encoder, capturing long-range contextual information. At each time step t, this bank aggregates features and serves as the key-value input for the cross-attention mechanism in the QFormer. The query memory bank captures temporal dynamics by dynamically accumulating query vectors learned by the QFormer at each time step.

3.2 Learning fromDiffusion Teacher

We contend that diffusion models possess a superior ability to capture spatial attributes compared to CLIP models, owing to their design and training objectives. While CLIP employs contrastive learning to align image and text embeddings by maximizing similarity between paired data, its emphasis on high-level semantic alignment may neglect finegrained spatial details [Monsefi et al., 2024]. In contrast, diffusion models learn through iterative denoising of corrupted images, a process that necessitates precise reconstruction of spatial structures and textures.

In the context of multimodal large language models, while Q-Former efficiently enhances the original CLIP representation, it primarily aggregates global visual features via learnable query. This prevents the model from capturing finegrained temporal and spatial relationships in videos. To address this issue, we introduce diffusion-based supervision for more detailed dynamic spatio-temporal modeling.

Pre-Trained Diffusion Models. Diffusion models, leveraging large-scale image data and visual generative priors, excel in extracting detailed and structural object cues [Wang et al., 2023; Wang et al., 2024a]. By incorporating feedback from these models, the fine-grained feature extraction capability of CLIP models is significantly enhanced [Wang et al., 2024a]. These probabilistic models [Rombach et al., 2022; Brooks et al., 2024] learn the data distribution p(x) and generate x from a random Gaussian variable, where x represents an image in the context of image diffusion models. To capture complex visual concepts, diffusion models reconstruct signals from noisy data xτ at varying noise levels. The loss function for this process is defined as:

where ϵ represents the actual noise contaminating the clean data, and ϵθ(xτ , t) indicates the noise predicted by the denoising model.

Noisy data xτ is generated by adding noise from a Gaussian distribution N(0, 1) to the clean data x0, following the noise scheduler αt [Ho et al., 2020], as defined:

Here, τ denotes the timestep in the diffusion process, with higher τ corresponding to increased noise.

Diffusion Supervision. While Q-Former excels in tasks such as Visual Question Answering (VQA), it struggles to represent detailed visual information due to CLIP's emphasis on low-frequency signals and global patterns [Park et al., 2023]. To address this issue, we introduce supervisory signals from diffusion models, which have been shown to enhance CLIP's performance on fine-grained tasks [Wang et al., 2024a]. Specifically, we utilize DiT to extract visual representations from each video frame, which serves as the predictive target for Q-Former hiddens. This alignment aims to improve Q-Former's capability to model intricate spatiotemporal dynamics effectively.

Let f be a pre-trained diffusion model, and consider a video frame xt. The output of the diffusion model is yt = f(xt) ∈ RH×D and the Q-Former output ht ∈ RP×C , where H and D represent the number of hidden units and the embedding dimension, respectively. However, due to the architectural differences between the diffusion model and QFormer, the representations extracted by the two models differ in both scale and dimension, making it challenging to align the outputs directly. Therefore, to reduce the difficulty of alignment training, we first apply average pooling to the output of the diffusion model, aiming to retain as much information as possible while reducing the dimensionality to improve alignment efficiency, resulting in the final alignment target y∗ ∈ Pool(f(xt)).

Furthermore, to address the differences in scale and dimension between the two models' outputs, we introduce a trainable projection head hϕ, which projects the Q-Former output ht into the same dimensional space as the diffusion model's output, the resulting aligned feature is hϕ(ht) ∈ RD . Finally, we align the projected Q-Former output hϕ(ht) with the average pooled diffusion output y∗ using a knowledge distillation loss function, which can be computed as follows:

where hϕ is parameterized using an MLP layer.

Using two linear projectors, we align the features from the Q-Former with those from the diffusion model despite the differences in their architectures. This effectively integrates valuable representations from the diffusion model as supervisory signals, which helps tackle the challenges associated with understanding long videos. However, while the above method resolves the alignment issue, ensuring training efficiency and improving model performance when aligning across multiple layers remains a challenge we face.

Adaptive Multi-Level Alignment. Due to potential semantic variations across the layers of Q-Former, excessive disparity between layers can lead to alignment failure. To optimize alignment and balance different semantic hierarchies, we propose an adaptive multi-level alignment module. This module performs dense alignment for each block and uses a learnable mechanism to assess alignment difficulty, improving learning efficiency and accuracy.

In particular, we utilize feature representations from a subset of Q-Former and integrate multi-level alignment losses through an adaptive weighting mechanism. Given a QFormer with L layers, we select M levels for representation alignment. Let U = {u1, u2, ..., uM} denote the indices of the selected Q-Former layers, where M < L and ui ∈ {1, 2, ...,L}, and h(ui) t ∈ RP×C represents the output of the ui-th block. For each selected block, the alignment loss computed using Eq 4 is:

In the training process, a common approach involves multiplying each layer's alignment loss by a uniform weight and summing them to obtain the final alignment loss for parameter optimization. However, we observe that this method is suboptimal due to semantic differences in the representations extracted by different layers of the Q-Former. Assigning the same weight to all layers not only fails to achieve proper alignment but also impairs the Q-Former's ability to extract semantic features. To enable efficient and differentiated alignment across layers, we introduce a weight prediction network, gψ, which dynamically predicts the loss of weight for each layer. This prediction is based on the projection of the Q-Former output and the Diffusion alignment feature. Specifically, the alignment weights for different QFormer blocks is computed as follows:

where σ(·) denotes the sigmoid activation function to normalize the weights. Then, the total representation alignment loss can be computed as:

In this way, our alignment mechanism dynamically adjusts the loss weight for each layer based on the different semantics extracted by each layer, achieving differential alignment. This provides an effective solution for balancing the preservation of the model's original performance while leveraging diffusion-based supervision.

3.3 Language Decoding

Finally, given the output features of the Q-Former and the text prompt (if possible), a frozen LLM is used to autoregressively decode them into discrete text sequences. In summary, the training objective of our framework includes two main components: (1) a cross-entropy loss for videoto-language auto-regressive generation, and (2) a knowledge distillation loss for feature representation alignment. The cross-entropy loss is defined as:

where oi denotes the i-th token in the ground-truth sequence, and P(oi|o<i, V ) represents the model's prediction given the video context V and preceding tokens o<i.

Similarly, to avoid damaging the model's performance due to the introduction of supervisory signals, it is crucial to balance both components. To achieve this, we introduce a hyperparameter λ in the final loss. The final loss is a weighted combination of both components:

where λ is a hyper-parameter that modulates the contribution of the representation alignment loss Lkd, balancing their relative importance during training.

4 Experiments

4.1 Dataset

We evaluate our proposed method by assessing its performance in long video understanding, fine-grained video understanding, and video question-answering tasks.

Long Video Understanding. We conduct experiments on the LVU dataset [Wu and Krahenbuhl, 2021], which contains approximately 30K video clips from 3K movies, each with a duration ranging from 1 to 3 minutes. The dataset covers a diverse range of real-world scenarios, making it an extensive benchmark for long video recognition tasks. Our evaluation focuses on specific subtasks, such as director style prediction, and movie genre classification, fully leveraging the dataset's diversity and complexity to validate the effectiveness of the proposed method. Through these tasks, we further demonstrated the significant advantages of the proposed method in handling long video content, particularly in capturing temporal dependencies and contextual information. Additionally, by comparing with existing methods on this dataset, we revealed the limitations of current short-duration models when dealing with long video tasks.

Fine-Grained Video Understanding. To validate the capability of our proposed framework in modeling complex spatio-temporal dynamics, we conduct experiments focusing on more fine-grained subtasks in the LVU dataset [Wu and Krahenbuhl, 2021], i.e., relation recognition. As shown in Figure 5, the relation recognition task labels the relationships between two individuals as either husband and wife, friend, or other friendship. Even humans struggle to accurately distinguish these relationships based solely on a few video stills, as this requires inferring fine-grained features [Li et al., 2024a] such as facial expressions and behaviors. To test whether our framework enhances the fine-grained video understanding ability of MLLMs, we focus on relationships between "husband and wife" and "friends", excluding "boyfriend and girlfriend" due to limited samples. This setup allows us to assess whether our model improves fine-grained spatiotemporal modeling.

Video Question Answering. To further compare with existing multimodal methods, we also extend the evaluation to the MSVD-QA [Xu et al., 2017], a standard open-ended video question-answering dataset, consisting of short videos lasting 10-15 seconds. This dataset covers a variety of scenes and includes rich question-answering tasks, widely used to assess the multimodal understanding ability of video question answering systems. Through experiments on MSVD-QA, we not only validated the effectiveness of the proposed method in short-duration video understanding but also compared the performance of our Transformer-based architecture with that of current state-of-the-art methods in this task. The experimental results demonstrate that the proposed method also performs excellently in short-duration video question answering tasks, effectively combining visual and linguistic information, significantly improving the accuracy and robustness of video question answering.

4.2 Implementation Details

This study utilizes the Vicuna-7B model as the LLM. It is trained over 20 epochs with a learning rate of 1 × 10-4 and a batch size of 64. The AdamW optimizer is applied with β1 = 0.9 and β2 = 0.999 for the hyperparameters, and a weight decay of 0.05. Input images are resized to 224 × 224 pixels. As for the diffusion model, we follow the REPA [Yu et al., 2024] to use the eighth layer output of the diffusion model (DiT-XL-2-256×256) as the supervisory signal y∗ . The input images of diffusion models is resized to 256 × 256 pixels. We assign a class label of 1000 (no class), and initialize the timestep to 0 (no noise) before inputting the images into the pre-trained, frozen DiT.

On the LVU dataset [Wu and Krahenbuhl, 2021], we set λ to 1, while on the MSVD-QA dataset [Xu et al., 2017], λ is set to 0.0005. During the decoding phase, a beam search width of 5 is employed. The frame length is 100, while the memory bank length is set to 20. For Language-Video Understanding (LVU) tasks, the prompt format is "What is the <task> of the movie?", where the task represents relationship, speaking style, scene, director, genre, writer, and release year. For evaluation, we choose the widely used top-1 accuracy as the primary metric.

4.3 Comparision with State-of-the-arts

Long Video Understanding. As shown in Table 1, compared to previous methods (e.g., VideoBERT [Sun et al., 2019], ViS4mer [Islam and Bertasius, 2022]) on the LVU benchmark [Wu and Krahenbuhl, 2021], our method achieves significant breakthroughs in both content understanding and metadata prediction tasks. This resulted in significant improvements in most tasks, enhancing the average top-1 accuracy by 1.8% compared to state-of-the-arts. While MALMM [He et al., 2024] improves model performance on long video tasks by introducing advanced memory mechanisms, the CLIP model's tendency to prioritize global feature alignment [Park et al., 2023] during training limits its performance on fine-grained tasks. In contrast, by incorporating diffusion supervision and feature alignment, our method enhances the model's ability to capture fine-grained spatio-temporal dynamics, enabling Diff-LMM to achieve state-of-the-art performance in fine-grained video understanding tasks.

Fine-Grained Video Understanding. In the LVU dataset [Wu and Krahenbuhl, 2021], relationship recognition requires identifying connections between characters in nearly 2.5-minute videos. This task is challenging due to its finegrained nature, as it involves interpreting long-term spatial and temporal features [Li et al., 2024a] like body movements and facial expressions. Distinguishing between spousal and friendship relationships can be particularly difficult, especially among heterosexual friends and spouses, leading to potential confusion without a subtle understanding of the video content. As demonstrated in Table 2, MA-LMM currently stands as a strong baseline method for long video understanding tasks. While it achieves an accuracy of 76.7% in recognizing friendships, it only manages to reach 27.8% accuracy in identifying spousal relationships, emphasizing the difficulty of this particular task.

In contrast, leveraging diffusion-based supervision, our method achieves a Top-1 accuracy of 66.7% in recognizing spousal relationships, outperforming MA-LMM by about 38.9%. For friendship recognition, accuracy improves to 90.7%. As illustrated in Figure 5, our approach effectively distinguishes between heterosexual friendships and spousal relationships, which can be challenging for humans due to their behavioral similarities. This strong performance in fine-grained long video understanding supports the notion that diffusion-based supervision significantly enhances the model's ability to capture subtle spatio-temporal dynamics.

Video Question Answering. To validate the advantages of the proposed architecture, we compared it with existing multimodal video understanding methods on the widely used MSVD-QA dataset [Xu et al., 2017], testing the robustness of spatio-temporal representations extracted through our method. Although Diff-LMM was not specifically designed for short video question-answering tasks, it is noteworthy that our model achieved state-of-the-art performance, as shown in Table 3. While the improvements on the MSVDQA dataset are relatively modest, this indirectly highlights that fine-grained spatio-temporal modeling is more critical for long video understanding tasks than for short video tasks. Our approach significantly enhances this capability by incorporating diffusion-based supervision.

4.4 Ablation Studies

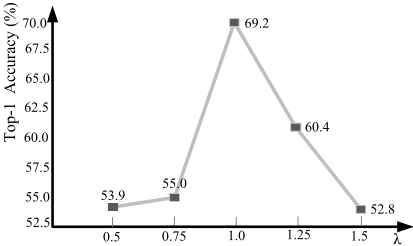

The Impact of λ. We analyze the impact of various λ values on the relationship task in the LVU datasets [Wu and Krahenbuhl, 2021], as shown in Figure 3. Setting λ to 1 yields the best performance for the adaptive multi-level alignment, allowing better alignment of representations from the diffusion model and overcoming the limitations of the original CLIP model, which mainly focuses on coarse, global alignment.

However, it is crucial to balance the degree of alignment between global and detailed features, as indicated in Figure 3. When λ is excessively high, the model becomes overly influenced by the diffusion representations. This causes the Q-Former to concentrate too much on detailed alignment in visual-text alignment, leading CLIP to overlook important global features and consequently reducing the model's accuracy. A similar issue arises when λ is set too low. Thus, we chose to set λ = 1 in our experiments to ensure optimal visual-text alignment for the CLIP model.

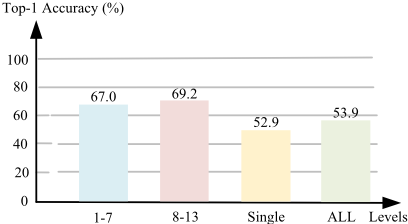

Alignment Level. We investigated the impact of applying alignment strategies to different layers of Q-Former. Our approach included aligning all layers, aligning a single level (specifically, the 13th layer), aligning the lower levels (layer 1-7), and aligning the higher levels (layer 8-13). Our findings indicate that aligning the higher layers during training yields the best results, as illustrated in Figure 4. Specifically, aligning the higher layers improves top-1 accuracy by nearly 15.3% compared to aligning all layers. The alignment of the lower layers produces results that are only slightly less effective than those of the higher layers. The reason for this is that when aligning all layers with the diffusion-extracted representations, the model ends up with similar hidden states across all layers of the Q-Former. This similarity hinders the model's ability to capture temporal dynamics present in the visual information of the video. Therefore, our method focuses on aligning only higher layers.

Adaptive Loss. To evaluate the effectiveness of the proposed adaptive loss mechanism, we conducted ablation experiments on the relationship task using the LVU dataset [Wu and Krahenbuhl, 2021]. The goal was to assess the necessity of the adaptive mechanism in balancing loss weights across different layers. For comparison, we implemented an alternative strategy where the weights were averaged, and the weight wui for all layers remained constant. We evaluate both methods on the relationship task. As shown in Table 4, the adaptive loss mechanism outperforms the equal-weight strategy by 11%. This improvement is attributed to the variability in hidden states across layers, as aligning diffusion representations alone does not lead to better performance. Our method dynamically adjusts the layer weights, enabling more effective feature alignment.

5 Conclusion

In this paper, we propose a novel approach of introducing diffusion-based supervision for long video understanding. We investigate whether the representations generated by diffusion models can be effectively aligned with recent video MLLMs to address the limitations of models that neglect fine-grained information, which hinders their ability to capture detailed spatio-temporal dynamics. To mitigate this issue, we propose an adaptive multi-level alignment mechanism with diffusion supervision for robust and precise feature alignment. Experimental results show that pre-trained diffusers are powerful representation models, and our proposed alignment mechanism effectively improves the performance of MLLMs in complex, dynamic scenarios.

Contribution Statement

Jisheng Dang and Ligen Chen contributed equally to this work. Teng Wang is the corresponding author.
