Bayesian Case-Exclusion and Personalized Explanations for Sustainable Dairy Farming (Extended Abstract)

1 Introduction

Although the promise of artificial intelligence (AI) in SmartAg is usually advertised as increasing productivity, in the future it may be more about improving sustainability [Gafsi et al., 2006; Lindblom et al., 2017]. As climate change accelerates, AI's main future contribution may be more about helping farmers to measure, profile, and predict the outcomes of farm-management decisions in ways that mitigate their environmental impacts. However, this future depends on the development of AI-enabled, decision-support systems (DSS) that are both predictively accurate and explainable to the end user. Here, an existing DSS, called PastureBase Ireland (PBI), is enhanced using case-based reasoning (CBR) techniques, in the so-called PBI-CBR system. This new DSS predicts grass growth for dairy farmers and offers explanations designed to improve user adoption. PBICBR's key technical novelty is its use of Bayesian CaseExclusion, to "clean up" user-entered data; a technique that by excludes outlier cases from the prediction process using prior beliefs about data distribution(s), thus reducing error and improving explanations. In the remainder of this introduction, the sustainability context for this work is briefly described, before outlining the structure of the paper.

∗Originally Publication [Kenny et al., 2019] at ICCBR 2019.

†Contact Author.

1.1 Context: Agriculture, Sustainability and AI

Concerns about the impact of agriculture on climate change and the development of sustainable models are growing [Lindblom et al., 2017]. The agricultural sector and consumers are faced with opposing views from climate change denial, to proposals that animal agriculture is responsible for 18-51% of greenhouse grass emissions [Steinfeld et al., 2006; Goodland et al., 2009]. However, a recent middle ground has emerged pushing for a quick move to sustainable farming systems [Poux and Aubert, 2018]; the so-called agroecology perspective. For example, in the dairy sector, agroecology proposes a move to pasture-based systems, where animals are predominantly fed on grass outdoors rather than on meal and supplements indoors. This pasture-based system has the potential to be sustainable if there is better grass management (e.g., using grass as a carbon sink). However, these innovations depend on precision technologies, using AI, for monitoring variables such as the climate and grass growth.

1.2 PastureBase Ireland (PBI) &Dairy Farming

SmartAg often depends upon providing new DSSs for farmers to aid them in making complex decisions about how to manage their farms, balancing productivity and sustainability [Lindblom et al., 2017]. These systems need to be predictively accurate, easy to use (and interpretable), and they need to be able to support actionable decision-making in the face of increasing climate disruption. The present work enhances the existing PBI DSS used for grass-fed, pasture-based dairy farming systems in Ireland.

Since 2013, Ireland's national agricultural research organization, Teagasc, have provided PBI to support Irish dairy farmers (6,000+ users). Among other features, the PBI database has weekly records of grass covers for individual farms (2013-present). A farm's "grass cover" is the amount of grass available on that farm for cows to eat. PBI-CBR uses historical grass-cover data to predict grass growth rates on a farm from one week to the next. These calculations allow farmers to budget feed for their herds, to determine if there is sufficient (inexpensive) grass available or whether (expensive) meal needs to be bought, meal that incurs additional carbon costs as it tends to be imported (e.g., from the USA).

We used the PBI dataset recorded from thousands of private farms in Ireland between 2013-2017. The primary feature of concern is the average grass growth rate for a farm since the last grass cover recorded, but location features (Farm ID-anonymized and County) are also important for explanation purposes. To explain its predictions PBI-CBR aims to provide explanatory cases from the same farm, or failing that, a case from a nearby farm in the same county.

1.3 Outline of Paper

Section 2 discusses noise in the PBI dataset and how a Bayesian approach is both useful and intuitive for the problem. Section 3 describes Expt. 1 which compares four systems on accuracy and explanatory success. Section 4 describes Expt. 2 which shows how updating priors using Bayesian techniques can improve prediction accuracy and may well help to deal with disruptive climate events. Section 5 reviews related work before making some final conclusions.

2 Noise: A Tale of Two Datasets

The grass-growth domain faces many of the typical problems that arise in SmartAg; notably, that the data is noisy, in part, because it has been entered by end-users (who are, often, non-technical). The PBI dataset has growth-data entered by farmer end-users, data that is known to contain errors, miss-recordings, and subjective estimates. For example, some grass-growth recordings are based on physical measurements with specialized devices (i.e., plate meters), whereas others are based on visual inspection. This noise in the dataset is dealt with by removing outlier cases, using a novel method, called Bayesian case-exclusion; this method uses a separate gold-standard dataset, gathered under controlled conditions (which is noise-free), to "clean up" the farmer-entered data, to create what we call the working-farm dataset.

2.1 The Gold Standard Dataset

The gold-standard dataset of grass-growth measurements we used, covers 28 years of carefully-controlled, weekly measurements in which samples, taken by researchers from the same pasture, were cut, dried, and weighted on a weekly basis at the Teagasc Moorepark Dairy Research Centre, Fermoy, Co. Cork. These measurements are idealized, but very accurate and can thus serve as a good benchmark for determining outlier cases in the PBI dataset, which we exclude using our Bayesian case-exclusion method.

2.2 PBI Dataset

The PBI dataset, used to construct the working-farm casebase, came from the weekly grass-covers entered by farmers in PBI; these grass-covers are farmer's estimates of grass available on a given farm on a given day and were used to make the grass-growth predictions for one week ahead. Some of these records are known to be in-error; for example, often multiple entries are made on the same day, where the last entry of the day was the intended record. For the years

2013-2017, this dataset had 99,087 grass-cover records, that reduced to 92,635 when same-day entries were removed.

Case generation. Let a farm's data be f = {x1, x2, . . . xn}, where xi is a grass cover for a day, and n the total number of covers (in chronological order). The features of xi used to generate a case (Ci) are the average growth rate since the previous grass cover (gr), the week (wk), month (mth), and season (seas) in which the grass cover was recorded. Weather data (wi) at the county level was scraped from Met ´Eireann, and added as an average from xi until xi+1. The weather information in wi is the maximum daily temperature (maxt), the average soil temperature 10cm below the surface (soilt) on a given day, and the average global radiation (grad) on a given day. Finally, gr from xi+1 was added to Ci as the target feature. Thus, a case is represented as:

Case base construction. Taking the raw-data, the cases as defined in Equation 1 were constructed; however, given that the system has to predict one week ahead, only those cases where the target xi+1(gr) was recorded 5-9 days after xi were included in the case base. Also, cases from January and December were excluded (as they tend to show zero growth). Finally, only those cases with accurate historical weather information until the next grass cover were considered (weather is crucial for predicting grass growth). These steps resulted in a working-farm case-base of 20,760 cases.

2.3 The Current Experiments

In the remainder of this section, two experiments are reported that test several variants of the Bayesian case-exclusion idea. In Expt. 1, we examine what happens in this predictive CBRsystem when cases are not excluded (Control), versus experimental systems in which they are. In Expt. 2, we explore adaptive Bayesian case-exclusion, and consider the data as a time series where priors derived from the gold-standard distribution are updated year-on-year.

3 Experiment 1: Bayesian Case-Exclusion

In this domain an error of ≤10 kg DM/ha is sufficient, but the major problem is uncertainty in the working-farm case-base, hence we use Bayesian case-exclusion to exclude likely outlier cases when making predictions. PBI-CBR also explains predictions by referencing nearest neighbouring cases from the same farm or county used in the prediction. The four variants of the system tested were:

• Control. A basic system that uses all the cases in the working-farm case base.

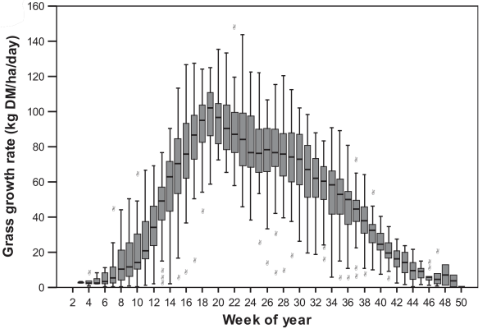

• Exclude-2sd. A Bayesian system that excludes cases two-standard deviations away from the weekly, mean growth-rates of the gold-standard dataset (see Fig. 1). The rationale being that grass growth in a given week approximates a normal distribution. Formally, the data for growth rate (GR) in a given week across all years in the gold-standard dataset approximates GR ∼ N(µ, σ2 ), where N is a normal distribution with parameters µ and σ for the mean and standard deviation, respectively. All cases outside µ±2σ are excluded. This step reduces the working-farm case-base by 42% (N=12,042 cases).
• Exclude-3sd. This is identical to the Exclude-2sd system but µ ± 3σ is used to exclude cases. This reduces the working-farm case-base by 21% (N=16,443 cases).
• Transform-3sd. This is a Bayesian system that transforms the growth-rates of cases using the gold-standard distribution. That is, the distribution of growth in a given week from the gold-standard dataset [GR ∼ N(µ, σ2 )] is used to transform the growth-rate values of cases for the same week in the working-farm case-base, to fit to the parameters µ and σ2 . Formally, to transform the growth-rate (gr) in a grass cover x in any given week of the year:

(2)

where xgr is the growth rate in grass cover x, ygr is the transformed growth rate of xgr, µ and σ are the mean and standard deviation for the overall growth rate in that week in the working-farm case-base, respectively, and µp and σp are the mean and standard deviation for the overall growth rate in that week in the gold-standard dataset, respectively. The intuition being that the goldstandard dataset is closer to the ground-truth. Note, in this system cases that fall outside µp ± 3σp after the transformation are still excluded, so the working-farm case-base is reduced by 2% (N=20,282 cases).

As we shall see, exclusion methods improve prediction accuracy, with varying levels of explanatory success. The transform system retains as many cases as possible, aiding accuracy and explanatory success. Interestingly, there are indications that the transformed case-base is closer to the ground truth as the correlation of Pearson's r between grad and GR

across all cases increases from r = 0.53 to r = 0.66 after transformation, reflecting known dependencies between such radiation and grass-growth [Ruelle et al., 2018].

3.1 Method: Procedure andMeasures

For each system variant Monte Carlo cross-validation was used with 30 re-sampling iterations, each time taking 80/20% data for training and testing, respectively. A standard k-NN algorithm was used for case retrieval and prediction. Selected values of k ranging from 5-1000 were tested for each system variant. For each evaluation of k in each system, three measures were taken: (i) the mean absolute error (MAE) (ii) the %Farm-Explanation-Success (%FES; i.e., the percentage of times the k-nearest-neighbours contained a case from the same farm as the query), and (iii) the %County-ExplanationSuccess (%CES; i.e., the percentage of times the k-nearestneighbours contained a case from the same county).

3.2 Results and Discussion

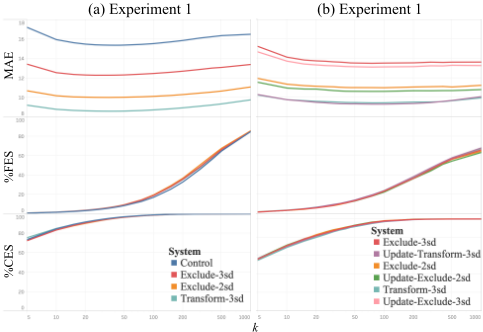

Fig. 2a shows the results the system variants for all values of k in three graphs, one for each measure: MAE, %FES, and %CES. Overall, MAE is worst for the lowest k with some improvement in at k=20-35. Regarding %FES all systems are similar, though success does change for different values of k. For all systems %FES is poor for low values of k, but beyond k=50 it rises to 80%; showing that higher values of k have enough cases from the same farm to explain the predictions. For all systems, %CES starts high (∼80%) and rapidly reaches ∼100%.

Overall, the Control system never gets lower than an MAE of 15. Similarly, from the two exclusion-systems only Exclude-2sd with k=35 has the somewhat acceptable MAE of ∼10.01 kg DM/ha/day. Overall, the Transform-3sd system is the best with a MAE < 10 kg DM/ha/day for all values of k; here it is capable of delivering county explanations very consistently, but more data would be needed for similar success in farm explanation-retrieval.

4 Experiment 2: Updating Priors

In Expt. 1 Bayesian exclusion/transformation of cases resulted in improved performance. However, all of these systems exclude cases using static parameters from the goldstandard dataset. In recent years, climate change is impacting the distributions of grass growth, and Expt. 2 tries to rectify this by updating Bayesian priors year-on-year. So, Expt. 2 has six versions of PBI-CBR, three systems tested in Expt. 1, and three variants of these systems in which priors were updated (Update-Exclude-2sd, Update-Exclude-3sd, Update-Transform-3sd). The procedure is described next.

4.1 Updating Bayesian Priors

To perform the updating, priors are taken from the goldstandard dataset and then progressively used on each year's data from the PBI-dataset to update them; the idea being to try to track shifts in climate over time. First, take the goldstandard dataset and, binning all its data into weeks, for any given week, let the growth rate (GR) approximate a normal distribution GR ∼ N(µ, σ2 ), where µ and σ2 are its mean and variance, respectively. In 2013, all the data for this week was processed into cases (see Section 4.2). Then, we proceed with transformation or exclusion methods on these cases depending on the system variant (using µ and σ2 as in Expt. 1), which gives the new data D = {C1, C2...Cn}, where n is the number of cases. Take the prior to be µ ∼ N(µ0, σ2 0 ), where the value σ0 is initially chosen as 4, and µ0 is initially chosen as µ. Here the value for σ2 is assumed to remain fixed. Bayes rule shows the posterior (for a given week) is proportional to the likelihood times the prior, in addition, because σ2 and σ2 0 are known we can ignore the constant of proportionality and derive that the posterior µp is:

where ¯x is the empirical mean of the growth rates in the cases of D, for a full derivation see [Murphy, 2007].

Using Equation 3 we update values for µ0 and σ2 0 , the new value of µ0 was then used to update the original µ from the gold-standard dataset, which was used with σ2 (the fixed variance from the gold-standard dataset) to repeat the whole process in 2014 for the same week. This process is repeated for all weeks of each year until the end of 2016 when all training data was collected. The latest priors in each week were again used to exclude or transform cases in 2017 for evaluation.

4.2 Method: Procedure andMeasures

For each system the case base was split in a ∼60/40% ratio for training and testing, respectively; the former being the PBI data from 2013-2016 and the latter 2017. Crucially, these results will be different from identical systems in Expt. 1 because of the different splits (there is also less training data here). For case retrieval, a standard k-NN was again used with selected values for k ranging from 5-1000. The three measures used were again MAE, %FES, and %CES.

4.3 Results and Discussion

Fig. 2b shows the results, that generally replicate Expt. 1. Regarding MAE, as before the transformation-versions do better than the exclusion-versions, with k=75 being optimal for all systems. Expt. 2 shows that Bayesian updating improves all systems at nearly every value of k. Regarding explanation the overall curve-shapes are similar to Expt. 1, with maximum values being %FES=68% and %CES=100%, in contrast to %FES=85.94% and %CES=99.98% in Expt. 1. Acceptable tradeoffs for accuracy and explanation are achieved for both of the transform systems in that at k=1000 the MAE is ∼9.95 kg DM/ha/day with ∼67.5% explanatory-success rate for same-farm cases in both systems.

5 RelatedWork

Case base maintenance is a notable area of research in CBR [Smiti and Elouedi, 2011]. However, most methods have focused on classification [Hart, 1968; Gates, 1972; Ritter et al., 1975; Guan et al., 2009; Aha et al., 1991; Markovitch and Scott, 1988], as opposed to regression [Redmond and Highley, 2010]. Redmond and Highley [2010] did try to convert Edited Nearest Neighbors [Wilson, 1972] for regression by assigning two hyperparameters, but they acknowledge that applying the classification algorithms to regression is difficult. Our method requires no hyperparameters, though it does require the specification of a prior(s).

XAI within CBR has been shown to be important in intelligent systems [Kenny and Keane, 2019; Keane and Kenny, 2019], with some consideration of CBR recommenders in SmartAg [Cho et al., 2012]. Frameworks have been proposed for explanation in CBR XAI [Sørmo et al., 2005], but there are few CBR-applications in SmartAg (for one exception see Branting et al.'s [2001] work on grasshopper-infestation).

6 Conclusion

We have shown that a CBR system can be used for a DSS in dairy farming to predict grass growth and provide personalized case-based explanations. To deal with noise in the data, we have introduced Bayesian case-exclusion to use prior knowledge to identify and exclude noisy data. Furthermore, we have shown that Bayesian calculations for updating priors year-on-year also improves performance [Kenny et al., 2019]. These systems have the ability to improve the sustainability of dairy farming in the future. Our more recent research [Temraz et al., 2020] has shown that these techniques can continue to deliver accurate predictions in the face of climate change by using the previously-excluded "outlier" cases in later years (such as the hot summer of 2018). Hopefully, though we may experience significant climate shifts, there will always be a case somewhere in the historical record that can provide accurate predictions, and by extension explanations.
