Learning to Generate Image Source-Agnostic Universal Adversarial Perturbations
Proceedings of the Thirty-First International Joint Conference on Artificial Intelligence. Main Track. Pages 1714-1720.
https://doi.org/10.24963/ijcai.2022/239
Keywords
- Computer Vision: Adversarial learning, adversarial attack and defense methods
- Machine Learning: Meta-Learning
Abstract
Adversarial perturbations are critical for certifying the robustness of deep learning models. A ``universal adversarial perturbation'' (UAP) can simultaneously attack multiple images, and thus offers a more unified threat model, obviating an image-wise attack algorithm. However, the existing UAP generator is underdeveloped when images are drawn from different image sources (e.g., with different image resolutions). Towards an authentic universality across image sources, we take a novel view of UAP generation as a customized instance of ``few-shot learning'', which leverages bilevel optimization and learning-to-optimize (L2O) techniques for UAP generation with improved attack success rate (ASR). We begin by considering the popular model agnostic meta-learning (MAML) framework to meta-learn a UAP generator. However, we see that the MAML framework does not directly offer the universal attack across image sources, requiring us to integrate it with another meta-learning framework of L2O. The resulting scheme for meta-learning a UAP generator (i) has better performance (50% higher ASR) than baselines such as Projected Gradient Descent, (ii) has better performance (37% faster) than the vanilla L2O and MAML frameworks (when applicable), and (iii) is able to simultaneously handle UAP generation for different victim models and data sources.
- [Andrychowicz et al., 2016] Marcin Andrychowicz, Misha Denil, et al. Learning to learn by gradient descent by gradient descent. In NeurIPS, 2016.
- [Balcan et al., 2019] Maria-Florina Balcan, Mikhail Khodak, and Ameet Talwalkar. Provable guarantees for gradient-based meta- learning. In ICML, 2019.
- [Cao et al., 2019] Yue Cao, Tianlong Chen, et al. Learning to opti- mize in swarms. In NeurIPS, 2019.
- [Carlini and Wagner, 2017] Nicholas Carlini and David Wagner. Towards evaluating the robustness of neural networks. In SP, 2017.
- [Chen et al., 2017] Pin-Yu Chen, Huan Zhang, et al. Zoo: Zeroth order optimization based black-box attacks to deep neural net- works without training substitute models. In ACM Workshop on Artificial Intelligence and Security, 2017.
- [Chen et al., 2020] Tianlong Chen, Weiyi Zhang, et al. Training stronger baselines for learning to optimize. NeurIPS, 2020.
- [Croce and Hein, 2020] Francesco Croce and Matthias Hein. Re- liable evaluation of adversarial robustness with an ensemble of diverse parameter-free attacks. In ICML, 2020.
- [Fallah et al., 2019] Alireza Fallah, Aryan Mokhtari, and Asuman Ozdaglar. On the convergence theory of gradient-based model- agnostic meta-learning algorithms. arXiv preprint, 2019.
- [Finn et al., 2017] Chelsea Finn, Pieter Abbeel, and Sergey Levine. Model-agnostic meta-learning for fast adaptation of deep net- works. arXiv preprint arXiv:1703.03400, 2017.
- [Finn et al., 2018] Chelsea Finn, Kelvin Xu, and Sergey Levine. Probabilistic model-agnostic meta-learning. In NeurIPS, 2018.
- [Finn et al., 2019] Chelsea Finn, Aravind Rajeswaran, et al. Online meta-learning. In ICML, 2019.
- [Goodfellow et al., 2015] Ian Goodfellow, Jonathon Shlens, and Christian Szegedy. Explaining and harnessing adversarial exam- ples. 2015 ICLR, 2015.
- [Hashemi et al., 2020] Atiye Sadat Hashemi, Andreas Bär, et al. Transferable universal adversarial perturbations using generative models. arXiv preprint, 2020.
- [Jiang et al., 2018] Haoming Jiang, Zhehui Chen, et al. Learning to defense by learning to attack. arXiv preprint, 2018.
- [Khodak et al., 2019] M Khodak, M Balcan, et al. Adaptive gradient-based meta-learning methods. In NeurIPS, 2019.
- [Khrulkov and Oseledets, 2018] Valentin Khrulkov and Ivan Os- eledets. Art of singular vectors and universal adversarial per- turbations. In CVPR, 2018.
- [Kingma and Ba, 2015] Diederik P. Kingma and Jimmy Ba. Adam: A method for stochastic optimization. ICLR, 2015.
- [Lecun et al., 1998] Y. Lecun, L. Bottou, Y. Bengio, and P. Haffner. Gradient-based learning applied to document recognition. Pro- ceedings of the IEEE, 86(11):2278-2324, Nov 1998.
- [Li and Malik, 2017] Ke Li and Jitendra Malik. Learning to opti- mize. ICLR, 2017.
- [Li et al., 2020] Yingwei Li, Song Bai, et al. Regional homogene- ity: Towards learning transferable universal adversarial perturba- tions against defenses. In ECCV, 2020.
- [Liu et al., 2018] S. Liu, J. Chen, et al. Zeroth-order online admm: Convergence analysis and applications. In AISTATS, 2018.
- [Liu et al., 2019a] Hao Liu, Richard Socher, and Caiming Xiong. Taming maml: Efficient unbiased meta-reinforcement learning. In ICML, 2019.
- [Liu et al., 2019b] Hong Liu, Rongrong Ji, et al. Universal adver- sarial perturbation via prior driven uncertainty approximation. In ICCV, 2019.
- [Liu et al., 2020] Sijia Liu, Pin-Yu Chen, et al. A primer on zeroth- order optimization in signal processing and machine learning. IEEE Signal Processing Magazine, 2020.
- [Lv and others, 2017] Kaifeng Lv et al. Learning gradient descent: Better generalization and longer horizons. In ICML, 2017.
- [Madry et al., 2017] Aleksander Madry, Aleksandar Makelov, et al. Towards deep learning models resistant to adversarial attacks. arXiv preprint, 2017.
- [Matachana et al., 2020] Alberto G Matachana, Kenneth T Co, et al. Robustness and transferability of universal attacks on com- pressed models. arXiv preprint, 2020.
- [Moosavi-Dezfooli et al., 2017] Seyed-Mohsen Moosavi-Dezfooli, Alhussein Fawzi, et al. Universal adversarial perturbations. In CVPR, 2017.
- [Nichol et al., 2018] Alex Nichol, Joshua Achiam, and John Schul- man. On first-order meta-learning algorithms. arXiv preprint arXiv:1803.02999, 2018.
- [Papernot et al., 2016] Nicolas Papernot, Ian Goodfellow, et al. cleverhans v1.0.0: an adversarial machine learning library. arXiv preprint, 2016.
- [Rajeswaran et al., 2019] Aravind Rajeswaran, Chelsea Finn, et al. Meta-learning with implicit gradients. In NeurIPS, 2019.
- [Ruan et al., 2020] Yangjun Ruan, Yuanhao Xiong, et al. Learning to learn by zeroth-order oracle. In ICLR, 2020.
- [Simonyan and Zisserman, 2014] Karen Simonyan and Andrew Zisserman. Very deep convolutional networks for large-scale im- age recognition. arXiv preprint, 2014.
- [Song et al., 2020] Xingyou Song, Wenbo Gao, et al. Es-maml: Simple hessian-free meta learning. ICLR, 2020.
- [Thrun and Pratt, 1998] Sebastian Thrun and Lorien Pratt. Learn- ing to learn: Introduction and overview. In Learning to Learn, pages 3-17, Boston, MA, 1998. Springer US.
- [Wichrowska et al., 2017] Olga Wichrowska, Niru Mah- eswaranathan, et al. Learned optimizers that scale and generalize. In ICML, 2017.
- [Xiong and Hsieh, 2020] Yuanhao Xiong and Cho-Jui Hsieh. Im- proved adversarial training via learned optimizer. In European Conference on Computer Vision, pages 85-100. Springer, 2020.
- [Xu et al., 2019] Kaidi Xu, Sijia Liu, et al. Structured adversarial attack: Towards general implementation and better interpretabil- ity. In ICLR, 2019.
- [Yin et al., 2020] Mingzhang Yin, George Tucker, et al. Meta- learning without memorization. In ICLR, 2020.
- [Zhao et al., 2019] Pu Zhao, Sijia Liu, et al. On the design of black- box adversarial examples by leveraging gradient-free optimiza- tion and operator splitting method. In ICCV, 2019.
References were extracted automatically from the PDF and may contain errors.
Full text extracted automatically from the PDF; figures, tables and equations may differ. The PDF is the version of record.
1 Introduction
Adversarial perturbations are imperceptible changes to input examples (such as images) aimed at manipulating the predictions of a "victim model" [Madry et al., 2017; Carlini and Wagner, 2017]. These are essential for evaluating the worst-case robustness of deep learning (DL) models, which is critical when deploying such models to real world scenarios. The usual focus in adversarial attack generation is on the perturbation of an individual data sample for a single victim model [Madry et al., 2017]. Amore powerful threat model is that of universal adversarial perturbation (UAP) [MoosaviDezfooli et al., 2017] to simultaneously perturb multiple examples. This is often accomplished with standard optimizations such as Projected Gradient Descent (PGD) [Madry et al., 2017], optimizing for a single perturbation that simultaneously attacks a set of provided examples.
Although UAP has been widely studied in the literature [Li et al., 2020; Khrulkov and Oseledets, 2018; Liu et al., 2019b], three fundamental challenges (C1-C3) remain.
- (C1) Lack of generalization ability to unseen images: UAP can attack other previously unseen examples from the same distribution on the same victim model to some degree [Moosavi-Dezfooli et al., 2017]. However, existing UAP methods are usually unable to attack unseen images with high success rate when generated with limited seen examples.
- (C2) Less effective on new images: For a new set of examples, the UAP usually needs to be regenerated by rerunning the generation algorithm, which is less effective. It is desirable to develop more effective UAP optimization algorithms on new data examples within one- or few-step updates.
- (C3) Non-applicability to diverse image sources. Beyond existing work, a more advantageous and authentic UAP generation scheme should be broadly applicable to any image source and corresponding victim model - the same attack generator can simultaneously generate perturbations for images from different data sources (with different resolutions).
The challenges C1-C3 bring us to the central question we aim to answer in this paper:
- (Q) "Can we develop a powerful threat model in the form of a UAP generator that can improve the attack performance on unseen examples with a small set of seen examples (C1), and generate UAPs more effectively within a few steps (C2) for images from different sources (C3)?"

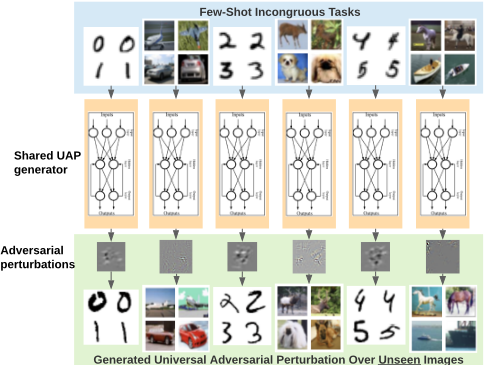

To address (C1) and (C2), we formulate the UAP generation process as an instance of few-shot learning, and explore the use of model-agnostic meta-learning (MAML) techniques [Finn et al., 2017] to warm-start the learning when only few examples are available. We show that MAML enables us to learn a good meta-model of UAP with an explicit goal of fast adaptation - the ability to quickly learn generalizable UAP with just a few examples. We highlight that this is different from existing computationally-intensive UAP generators, requiring to perturb a large volume of images.
To address (C3), namely, accomplish a source-agnostic UAP model, we present an extension of MAML to 'incongruous tasks' - tasks drawn from diverse image sources - by leveraging a different meta-learning framework, learning-tooptimize (L2O) [Li and Malik, 2017; Andrychowicz et al., 2016]. The conventional MAML only applies to 'congruous tasks' where the meta-learning and task-specific learning (fine-tuning) occur on the same set of learnt parameters. In UAP generation, the task-specific parameters are the image perturbations, whose size depend on the image sizes. To remain agnostic to the image source and size, it is not possible to share the learnt parameters between different image sources. Thus, MAML is not directly applicable. To tackle this, we employ L2O to meta-learn the UAP generator over incongruous tasks. Our rationale is that L2O provides us with a learnt optimizer, which use gradients or zeroth-order gradient estimates [Liu et al., 2020], and can operate on objectives with different set of optimizee variables (task-specific parameters), allowing meta-learning across incongruous tasks.
We highlight that MAML and L2O make complementary contributions to UAP: MAML focuses on meta-learning "for better generalization"; L2O meta-learns "how to learn".
We outline our contributions as follows:
- (§3) We propose a novel interpretation of UAP threat model as a few-shot learning problem.
- (§4) Algorithm-wise, we show how meta-learning across incongruous tasks can be developed using an extended bilevel optimization by integrating L2O with MAML and applied to UAP generation. Theory-wise, we quantify how our meta-learned fine-tuner (LFT) differs from L2O.
- (§5) We demonstrate the improved attack performance of our meta-learning based UAP generator against standard optimization based generators and other meta-learning based UAP generators (when applicable in limited scope).
In the few-shot learning setup, we denote the ith individual task as Ti ∼ P(T ) sampled from a task distribution P(T ) with the task specific (i) learning parameters (or optimizee variables) θi ∈ Θi, (ii) data domain Di, (iii) support (training/fine-tuning/seen) set Dtr i ∈ Di, (iv) query (validation/test/unseen) set Dval i ∈ Di, (v) objective function fi : Θi ×Di → R. In the MAML framework, the tasks are congruous, and share the optimizee variables, hence the optimizee domains are the same, that is, Θi = Θj = Θ ∀i, j, and a single θ ∈ Θ is meta-learned and fine-tuned to θi ∈ Θ for any task Ti. In the L2O framework, the tasks can be incongruous, and only share the optimizer parameters ϕ while maintaining their own separate optimizee variables θi.
2 RelatedWorks
There exist an extensive amount of work on the design of adversarial attacks, ranging from white-box attacks to blackbox attacks [Carlini and Wagner, 2017; Ruan et al., 2020; Goodfellow et al., 2015; Papernot et al., 2016; Zhao et al., 2019; Chen et al., 2017; Xu et al., 2019]. In the context of UAP, various attack generation methods were proposed [Li et al., 2020; Khrulkov and Oseledets, 2018; Liu et al., 2019b; Hashemi et al., 2020; Matachana et al., 2020]. For example, Li et al. proposed regionally homogeneous perturbations. Khrulkov and Oseledets leveraged the singular vectors of the Jacobian matrices of deep features to construct UAP. Liu et al. designed a robust UAP generation by fully exploiting the model uncertainty. To boost attack generalizability, most UAP methods require to perturb a large volume of images simultaneously, with intensive computations. Moreover, existing UAP generation is restricted to a single image source, leaving image source-agnostic UAP an open question.
MAML [Finn et al., 2017] has been studied both theoretically [Liu et al., 2019a; Balcan et al., 2019; Khodak et al., 2019] and empirically [Nichol et al., 2018]. It has been extended to model uncertainty [Finn et al., 2018] and handle the online setting [Finn et al., 2019]. The second order derivatives in MAML have been handled in multiple ways [Rajeswaran et al., 2019; Fallah et al., 2019]. Specific to RL, various enhancements obviate the second order derivatives of the RL reward function, such as variance reduced gradients [Liu et al., 2019a] and Monte Carlo zeroth-order Evolution gradients [Song et al., 2020]. However, all extension/applications of MAML focus on congruous tasks where different few-shot tasks share the same parameters and optimizee domain.
Learnt optimizers have long been considered in training neural networks [Thrun and Pratt, 1998]. More recent work has posed optimization with gradients as a RL problem [Li and Malik, 2017] or as learning a recurrent neural network (RNN) [Andrychowicz et al., 2016] instead of leveraging the usual hand-crafted optimizers (such as SGD or Adam [Kingma and Ba, 2015]). The RNN based optimizers have been improved [Wichrowska et al., 2017; Chen et al., 2020] by - (i) using hierarchical RNNs to better capture parameter structure of DL models, (ii) using hand-crafted-optimizer-inspired inputs to RNN (such as momentum), (iii) using a diverse set of optimization objectives (with different hardness levels) to meta-learn the RNN, and (iv) leveraging different training techniques such as curriculum learning and imitation learning. The learnt optimizers have also been successful with particle swarm optimization [Cao et al., 2019] and zeroth-order gradient estimates [Ruan et al., 2020]. In adversarial robustness, L2O has also been leveraged to design instance-wise attack generation [Ruan et al., 2020; Jiang et al., 2018] and adversarial defense (such as adversarial training [Xiong and Hsieh, 2020]).
3 UAP Design as a Few-Shot Problem
Many existing attack generators execute in an instance-wise manner, namely, requesting repeated invocations of an iterative optimizer to acquire adversarial perturbations with respect to an individual input example [Chen et al., 2017; Croce and Hein, 2020]. To circumvent the limitation of instancewise attack generator, the problem of UAP arises, which seeks a single perturbation pattern to manipulate the DNN outputs over multiple examples simultaneously [MoosaviDezfooli et al., 2017; Matachana et al., 2020].
Let Ti denote an attack generation task, which constitutes a support set Dtr i used to generate the UAP θi and a query set Dval i (from the same classes as inDtr i ) on which we evaluate the ASR (attack success rate) of the generated UAP θi. Our goal is to learn a UAP with a few examples in Dtr i that can successfully attack unseen examples Dval i with the same victim model. This motivates us to view UAP generation as a few-shot learning problem. Mathematically, given a fewshot UAP generation task Ti with training set Dtr i , the taskspecific UAP θi is obtained by solving:
where y is the true label of x, λ > 0 is a regularization parameter, and ℓatk is the C&W attack loss [Carlini and Wagner, 2017], which is 0 (indicating a successful attack) with an incorrect predicted class. The second term is an ℓ1 norm regularizer, penalizing the perturbation strength.
In our few-shot notation, the attack loss (1) is considered as the task-specific loss fi with θi as the task-specific parameters. With multiple few-shots tasks Ti and corresponding (Dtr i ,Dval i ), we wish tometa-learn a UAP generator that can solve new few-shot UAP generation tasks.
To achieve this, we leverage MAML to meta-learn an initialization of optimizee variables θ (i.e., UAP variables) that enables fast adaptation to new tasks when fine-tuning the optimizee from this learned initialization with a few new examples. Formally, with N few-shot learning tasks {Ti}Ni=1 , when meta-learning with Ti, (i) the support set Dtr i is used for the task-specific inner level in MAML to fine-tune the initial optimizee θ, and (ii) the query set Dval i is used in the outer level for evaluating the fine-tuned optimizee θ∗i (θ) to metaupdate θ. Thus, MAML-oriented UAP generation solves the following bilevel optimization problem:
where θi(θ) is the task-specific optimizee and fi(θi(θ);D) is the task-specific loss evaluated on data D using variable θi(θ) obtained from fine-tuning the meta-learned initialization θ. We will use θi := θi(θ) from hereon.
Formulation (1) is not able to generate transferable UAP. We provide a warm-up example showing why we choose to rely on the bilevel few-shot formulation (2), rather than (1). We thus examine if solving the task-specific problem (1) is sufficient to generate UAP with "attack generalizability" when applied to unseen test example. We consider a UAP generation on CIFAR-10 and use PGD to generate the taskspecific UAP θi over 1000 tasks each with 4 images. We compare the average ASR of θi on Dtr i (with which the UAP was generated) and Dval i (unseen images from same classes). Since the UAP θi is generated with Dtr i , the ASR achieves 100% on Dtr i . However, the same θi when applied to Dval i achieves less than 30% ASR - this highlights how the PGDgenerated UAP that only solves problem (1) has low ASR on unseen images from the same distribution on the same victim model. Formulation (2) minimizes the loss on unseen examples in the outer-loop, thus explicitly promoting attack generalizability to address C1 in §1.
4 Learning Optimizers for Fast Adaptation
While (2) addresses challenges C1 and C2 stated in Sec. 1, it is only applicable to 'congruous tasks' where all UAP generation tasks are from the same image source. In this section, we generalize (2) to 'incongruous tasks' with learned finetuners (LFTs) by integrating with L2O, thereby addressing C3 to yield image source-agnostic UAP generators.

To solve problem (2), the conventional approach [Yin et al., 2020] relies on the approximation of the inner problem with a K-step gradient descent (GD) with the initial iterate θ(0) i ← θ, the final iterate θ∗i ← θ(K) i and
where θ(k) i is the kth -step optimizee fine-tunedwithDtr i from θ(0)
i = θ, α > 0 is a learning rate, and [K] = {1, 2, . . . ,K}. It is clear from (3) that both levels of the optimization (with respect to θ and θi) in (2) must operate on the same-type optimizee variables, and accordingly, few-shot tasks {Ti}Ni=1 are restricted to problems which share the same optimizee domain (i.e., congruous tasks drawn from the same image source). However, in the general meta-learning setting, similar tasks could be from related yet incongruous domains corresponding to different objectives {fi} with optimizee variables of different domains (such as different image sizes and number of channels) that cannot be shared between tasks as in our UAP generation tasks illustrated in Figure 1 - UAP parameters cannot be shared between images from different data sources with different resolutions. In such cases, metalearning the initial iterate is not possible. Next, we will leverage L2O to meta-learn an optimizer - the fine-tuner - for fast adaptation of the task-specific optimizee θi in a few-shot setting even when meta-learning across incongruous tasks.
L2O allows us to replace the hand-designed GD (3) with a learnable RNN parameterized by ϕ. For any task Ti, RNNϕ(·) mimics a hand-crafted gradient based optimizer to output a descent direction ∆θi to update task-specific optimizee variable θi given the gradients. Thus, we replace (3) with
where h(k) i denotes the state of RNNϕ at the kth RNN unrolling step, gi(θ(k) i ;Dtr i ) is the gradient ∇θi fi(θi;Dtr i ) or gradient
Algorithm 1 Meta-learning LFT with problem (5)
- 1: Input: UAP generation tasks {Ti}i∈[N], # meta-learning steps T, # fine-tuning steps per task K, initial ϕ, {θ(0) i , h(0) i }i∈[N], meta-learning rate β > 0
- 2: for t ← 1, 2, . . . , T do
- 3: for tasks i ∈ sampled task batch Bt ⊆ N do
- 4: sample data Dtr i ∼ Ti for fine-tuning
- 5: generate task-specific optimizee (the UAP) with Dtr i via (4) for K steps to obtain {θ(k) i , h(k) i }Kk=1
- 6: sample data Dval i ∼ Ti for the meta-update
- 7: obtain task-specific fast-adaptation gradient w.r.t. LFT parameters ϕ with Dval i
- 8: end for
- 9: update LFT parameters ϕ: ϕ←ϕ-β ∑i∈Bt g(i)
- 10: end for
- 11: Output: RNNϕ
estimate [Liu et al., 2018]. Each task-specific θi is initialized with a random θ(0) i . Note that ∆θ(k) i := ∆θ(k) i (ϕ) is a function of ϕ in (4) and hence θ(k) i := θ(k) i (ϕ) depends on ϕ.
We term RNNϕ in (4) learned fine-tuner (LFT) for incongruous few-shot learning. Combining (4) with (2), we can cast the meta-learning of a LFT as
where wk is an importance weight for the kth unrolled step in (4). We can set (i) wk = 1 [Andrychowicz et al., 2016], (ii) wk = k [Ruan et al., 2020], or (iii) wk = I[k = K] [Lv and others, 2017]. Choice (iii) matches the objective (2), focusing on the final fine-tuned solution. However, unlike MAML, problem (5) meta-learns ϕ instead of an initialization θ. We elide the ϕ argument in the sequel for brevity.
The fine-tuner ϕ acquired from (5) yields a UAP generator with generalized universality across hybrid image sources. First, it can generate a UAP θ(k) i (ϕ) with a few"seen" images in Dtr i that can successfully attack "unseen" images in Dval i (C1) within a few updating steps (C2). Second, as will be evident later, its form given by a RNN-based optimizer enables us to handle incongruous few-shot tasks (that is, design attacks) with images for different data sources (C3).
4.1 Methodologies
The meta-learning problem (5) is still a bilevel optimization, similar to MAML (2). However, both inner and outer levels are distinct fromMAML: In the inner level, we update a taskspecific optimizee θi by unrolling RNNϕ for K steps from a random initial state θ(0) i ; by contrast, MAML uses GD to update θi from the meta-learned initialization. In the outer level, we minimize the objective (5) w.r.t. the optimizer ϕ instead of the optimizee initialization θ. We present our proposed scheme in Algorithm1. In each outer iteration t ∈ [T] of the meta-learning, we sample a batch Bt of few-shot UAP generation tasks (line 3), and for each sampled task Ti, i ∈ Bt, we obtain a set of seen images Dtr i (line 4) and use it with the LFT to generate a (sequence of) UAP θ(k) i using the update rule in (4). Then we sample a set of unseen images Dval i (line 6) and generate the fast adaptation gradient w.r.t. ϕ (line 7) that explicitly takes into account the utility of the generated UAP θ(k) i on unseen images. These gradients w.r.t. ϕ are aggregated across all tasks in the batch and used to update the LFT parameters ϕ (line 9). In what follows, we discuss our proposed meta-learning (Alg. 1), showcasing its (i) ability to meta-learn across incongruous tasks, (ii) applicability to zeroth-order (ZO) optimization, (iii) theoretical advantage from the fast adaptation gradient (6).
When fine-tuning the task-specific optimizee θi by RNNϕ (Algorithm1, Step 5), we use an invariant RNN architecture to tolerate the task-specific variations in the domains {Θi}Ni=1 (e.g., dimensions) of optimizee variables {θi}Ni=1 . Recall from (4) that RNNϕ uses the gradient or gradient estimate gi(θ(k) i ;Dtr i ) as an input, which has the same dimension as θi. At first glance, a single RNNϕ seems incapable of handling incongruous {Ti}Ni=1 defined over optimizee variables of different dimensionalities. However, a RNNϕ configured as a coordinate-wise Long Short Term Memory (LSTM) network [Andrychowicz et al., 2016]), is invariant to the dimensionality of optimizee variables {θi}Ni=1 by using a separate LSTM to independently operate on each coordinate of θi for any task i ∈ [N], but requiring all LSTMs to share their weights. This weight-sharing allows the RNN to operate on tasks with optimizee variables of different dimensionalities. In contrast to MAML, the invariant RNNϕ expands meta-learning for fast adaptation beyond congruous tasks to incongruous tasks (e.g. UAPs).
L2O in (4) allows us to update the task-specific optimizee variable θi using not only first-order (FO) information (gradients) but also zeroth-order (ZO) information (function values) if the loss function fi is a black-box objective function. We can estimate the gradient ∇fi(θi; Di) with finite-differences of gi(θi;Di) [Liu et al., 2020; Ruan et al., 2020]:
where µ > 0 is a small smoothing parameter, uj, j ∈ [n] are n random directions with entries from N(0, 1). The function gi can also be sophisticated quantities derived from gradients or gradient estimates [Wichrowska et al., 2017; Lv and others, 2017; Cao et al., 2019]. The support for ZO optimization is crucial when explicit gradient are computationally difficult or infeasible in the black-box attack setting.
We could have instead used the gradient of the fine-tuning objective fi(θ(k) i ;Dtr i ) w.r.t. ϕ by solving the following:
Different from (5), this is the standard L2O in few-shot tasks. We have the following results (see Appendix B 1 for details): Proposition 1. Consider the meta-learning objectives defined in (5) and (8). Suppose that the gradient size is bounded by G and gradient estimate per sample has uniformly bounded variance σ2 . Then, for any ϕ, we have
where Dtr :=mini∈[N] |Dtr i | and Dval :=mini∈[N] |Dval i | denote the minimum batch size of per-task datasets Dtr i ,Dval i ∼ Ti, i ∈ [N].
Remark 1. When the data size is small - the few-shot regime - there could be a significant difference in the gradients w.r.t ϕ, resulting in a significantly different solutions, especially for the case where σ or G is large. This explains the significant difference between empirical performance of L2O and our LFT in evaluation over few-shot learning problems.
5 Experiments
We demonstrate the effectiveness of LFT through extensive experiments on the UAP design in the black-box setup [Chen et al., 2017], where the internal configurations and parameters of the DNN are not revealed to the attacker. Thus, the only interaction of the adversary with the system is via submission of inputs and receiving the corresponding predicted outputs. LFT is implemented using ZO gradient estimates.
We wish to evaluate the ability of UAP generated with a small set of seen images to successfully attack unseen images from the same image source (for a fixed victim model). For this, we generate 100 UAP generation tasks Ti, i = 1, . . . , 100, each with a set Dtr i of seen images (to be used to generate the UAP) and a set Dval i of unseen images (onwhich the generated UAP is evaluated). In both Dtr i &Dval i , 2 image classes with 2 samples per class are randomly selected. As image sources, we utilize MNIST and CIFAR-10, and as victim architectures, we utilize LeNet [Lecun et al., 1998] and VGG-11 [Simonyan and Zisserman, 2014]. Note that the same architecture applied to different image sources will lead to different victim models. For meta-learning, we separately generate 1000 UAP generation tasks from each image source.
We consider two non-meta-learning based standard UAP generators - PGD-based (termed PGD) and singular vector based (termed S-UAP) [Khrulkov and Oseledets, 2018]. In addition to our LFT scheme, we also consider standard L2O (given by (8)) to ablate the effect of fast adaptation gradient 2 . We also consider standard MAML (given by (2)) to ablate the effect of using a meta-learnt optimizer (with random initial iterate) instead of a meta-learnt initialization. Note that MAML is only applicable for a single image source. When the meta-learning tasks are generated from multiple image sources, we meta-learn a MAML per image source and term it ensemble MAML. This requires us to solve the bilevel problem (2) separately for each image source.
1 A full version is available at https://arxiv.org/abs/2009.13714. 2 Unseen images Dval i are not utilized in L2O (8), so we add it to Dtr i to ensure that L2O gets the same images for meta-learning.
| Meta-learning Meta-testing | MNIST (LeNet-5) | CIFAR-10 (LeNet-5) | CIFAR-10 (VGG-11) | |
|---|---|---|---|---|
| MNIST (LeNet-5) | S-UAP PGD MAML L2O LFT (Ours) | 63 ± 5 50± 7 100± 0 100± 0 100± 0 | 42 ± 4 25 ± 0 - 40 ± 10 50 ± 0 | 38 ± 4 25 ± 0 - 36±2 48± 3 |
We use a one-layer LSTM with 10 hidden units, and one additional linear layer to project the RNN hidden state to the output. We use Adam with an initial learning rate of 0.001 to meta-learn the RNN with truncated backpropagation through time (BPTT) by unrolling the RNN for 20 steps and running each optimization for 200 steps.
We report (a) averaged attack success rate (ASR), (b) ℓ1 perturbation strength, (c) convergence in terms of optimization steps needed to reach 100% ASR. We also provide visualization of generated UAPs in Appendix C.
Can LFT outperform standard non-meta-learning schemes for few-shot UAP generation tasks, even for tasks from images sources & victim models not encountered at meta-learning?
To answer this, we meta-learn only with tasks generated from MNIST (with LeNet-5 as the victim model), and perform the meta-testing on tasks generated from (i) MNIST with LeNet-5, (ii) CIFAR-10 with LeNet-7, and (iii) CIFAR10 with VGG-11, where (ii) and (iii) involve image sources and victim models not encountered during the meta-learning. We summarize the results in Table 1. Note that MAML is only applicable in case (i). For case (i) where meta-testing tasks are from the image source used for meta-learning, all meta-learning schemes achieve 100% ASR compared to the 63% for S-UAP (PGD is much lower). This demonstrates the improved attack generalizability from meta-learning. For image sources not encountered during meta-learning (cases (ii) & (iii)), LFT still continues to outperform S-UAP by 810%. LFT outperforms L2O by over 10%, highlighting the gain from the fast adaptation gradient.
Can LFT effectively meta-learn with multiple image sources and improve ASR & convergence with lower UAP ℓ1 norms?
Here, we consider meta-learning with two meta-learning setups (L1) only tasks from MNIST and (L2) metalearning with tasks from both MNIST and CIFAR-10 (MNIST+CIFAR-10), and three meta-testing setups with tasks from (T1) MNIST, (T2) CIFAR-10, and (T3) both (MNIST+CIFAR-10). In these cases, the victim architecture is LeNet-5 for MNIST and LeNet-7 (LeNet with more CONV layers) for CIFAR-10 to demonstrate the ability to work with various victim architectures. Figure 2 presents ASR (on unseen images Dval i ), aggregated over 100 UAP generation tasks, with increasing number of steps in iterative UAP generation schemes (using the seen images Dtr i ); S-UAP is a noniterative scheme. Note that MAML is only applicable in the T1 case when meta-learning with MNIST tasks in L1 case; when meta-learning with tasks from MNIST+CIFAR-10 in L2 case, we utilize ensemble MAML.
| Meta-testing | T1: MNIST | T2: CIFAR-10 | T3: MNIST + CIFAR-10 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Meta-learning | ASR100(%) | ℓ1 norm | step # | ASR100(%) | ℓ1 norm | step # | ASR100(%) | ℓ1 norm | step # | |
| L2: | Ensemble MAML | 75 ± 0 | 0.117 | 137 | 96 ± 4 | 0.071 | 88 | 95 ± 6 | 0.099 | 103 |
| MNIST + | L2O | 77 ± 8 | 0.112 | 125 | 95 ± 5 | 0.069 | 72 | 92 ± 9 | 0.096 | 93 |
| CIFAR-10 | LFT | 100 ± 0 | 0.101 | 92 | 100 ± 0 | 0.063 | 55 | 100 ± 0 | 0.089 | 68 |

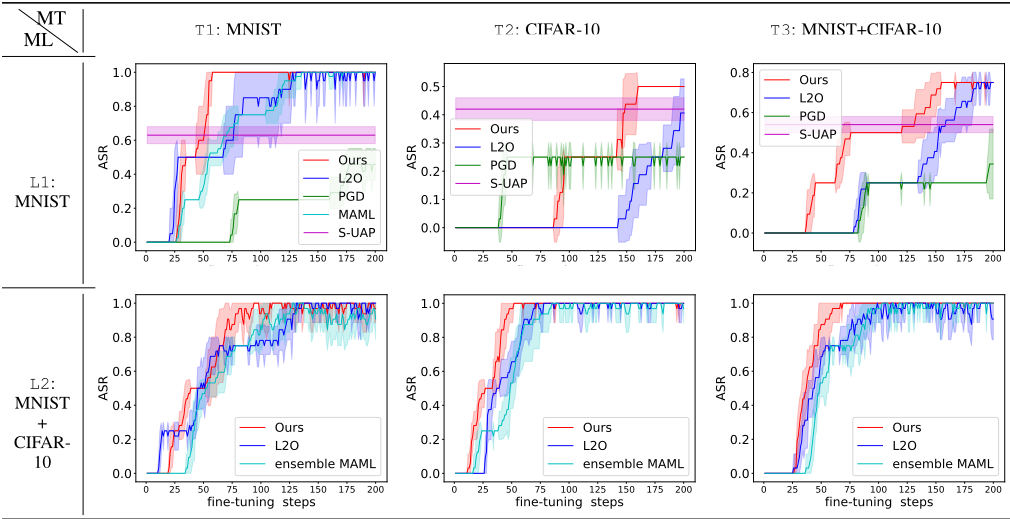

Figure 2 indicates that our proposed LFT converges first to the best ASR, with L2O and (ensemble) MAML performing comparably to each other when applicable. As seen in Table 1, the non-meta-learning schemes (PGD & S-UAP) are unable to match the ASR of the meta-learning schemes in all meta-testing cases T1, T2, T3 - PGD converges to less than half the ASR achieved by LFT. Note that, when metalearning with MNIST+CIFAR-10 in case L2, the meta-test performance of LFT on MNIST in case T1 is not significantly affected, indicating that meta-learning from multiple image sources does not hurt the performance of LFT. Furthermore, meta-learning from MNIST+CIFAR-10 leads to improved ASR when meta-testing with CIFAR-10 in T2 or MNIST+CIFAR-10 in T3, highlighting the improvement in LFT from meta-learning with multiple image sources.
The relative performances of the meta-learning based schemes are further summarized in Table 2. These results indicate that, compared to other meta-learning baselines, LFT achieves better ASR with limited number of steps (5-18% improved ASR), converges to 100% ASR faster (24-37% reduction in number of steps), and does so while producing perturbations with smaller ℓ1 norms (up to 10% smaller). We present further results in Appendix C which show that LFT produces smaller ℓ1 norms than PGD as well. We also study the effect of the number of tasks available per image source for meta-learning in Appendix D.
We mitigate challenge C1 by demonstrating improved attack generalizability (improved ASR on unseen images) with meta-learning. Improved convergence (to 100% ASR) of LFT with smaller perturbation strength mitigates challenge C2. By demonstrating improved ASR for LFT (i) by metalearning with tasks from different image sources, and (ii) when handling UAP generation tasks from image sources not encountered during meta-learning, we mitigate challenge C3.
6 Conclusion
In this paper, we focus on the various challenges in UAP generation, and present a meta-learning scheme LFT that extends MAML with the learning-to-optimize framework. This LFT can be meta-learned from multiple image sources and be applied to image sources and architectures not seen during meta-learning, thereby extending the generator universality.
Acknowledgments
This work is partly supported by the National Science Foundation Award CNS-1932351.
