Black-box Prompt Tuning for Vision-Language Model as a Service

1 Introduction

With the promise to learn universal cross-model representations, pre-trained vision-language models (VLMs) have achieved impressive performance in an extensive range of research fields [Du et al., 2022]. Increased attention has focused on potential fine-tuning approaches to adapt these models to downstream tasks (e.g. linear probe [Radford et al., 2021], adapter tuning [Houlsby et al., 2019] and prompt tuning [Li and Liang, 2021]). However, making VLMs benefit everyone is still challenging. On the one hand, given a large number of tunable parameters, previous fine-tuning approaches can be computationally expensive; Moreover, institutes tend to keep the pre-trained model parameters closedsource due to commercial considerations such as GPT-3 [Brown et al., 2020]. Since no gradient information is available, it's tricky for local users to perform fine-tuning when a model is deployed as a remote service (MaaS).

∗Corresponding Author

Derivative-free Optimization, also referred as Black-box Optimization, is a promising way to optimize problems without the availability of gradient [Larson et al., 2019]. Over the past decades, various methods have been explored, such as Bayesian Optimization [Shahriari et al., 2015] and Evolution Strategies (ESs) [Loshchilov, 2014]. Particularly, ESs are widely used in automated machine learning. However, most ESs suffer from the "high-dimensional" problem and can only deal with thousands of parameters, which poses a challenge for black-box optimization over the large-scale pretrained models, especially for the VLMs that involves multiple modalities with more parameters.

Recently, [Sun et al., 2022b] provide a solution to perform black-box optimization on pre-trained language models (LMs). Inspired by the low intrinsic dimension of LMs [Aghajanyan et al., 2021], the authors use projected prompts to bridge the gap between black-box optimization and finetuning. Whereas, this work is restricted to the single linguistic modality, and no cross-modal interaction is involved. Moreover, how to effectively find the optimal intrinsic vector in a multi-modal parameter subspace remains to be studied.

In this paper, we propose a Black-box Prompt Tuning framework for VLMs (BPT-VLM) to set the stage in the scenario of MaaS. Our framework regards multi-modal prompt tuning as black-box optimization based on empirically successful ESs (e.g. CMA-ES [Hansen and Ostermeier, 2001]). From the perspective of evolutionary learning, our BPT-VLM mainly consists of three parts (as shown in Figure 2):

1. Population: According to the previous finding that pre-trained models have very low intrinsic dimensions [Aghajanyan et al., 2021], optimization can actually perform on individuals (intrinsic vectors) from a small parameter subspace. Individuals forming a population can be further evaluated for distribution updates.
2. Objective Function: As shown in Figure 1(a), model as a service is only allowed to perform forward pass, thus it's reasonable to define VLM as a black-box objective function to evaluate the fitness values of individuals;
3. Optimization Algorithm: With the fitness values of a population of individuals, an evolution-based optimization algorithm updates its multivariate distribution to produce a higher-quality population in the next generation (Figure 1(b)).

Intrinsic vectors participate in VLM's forward passes as projected vision and language prompts. Depending on the length of propagation path, we explore two variants of prompt tuning for BPT-VLM, namely Shallow Prompt and Deep Prompt. After generations of black-box optimization, the multivariate distribution can produce solid intrinsic vectors with low loss value. In other words, the task-relevant vision and language prompts are learned in a derivative-free manner. Compared to [Sun et al., 2022b], BPT-VLM considers both the visual and linguistic modalities in black-box tuning, and involves cross-modal interaction by optimizing vision-language prompts in the shared intrinsic subspace. Experimental results on 9 downstream tasks show that BPTVLM not only surpasses the hand-crafted prompts, but also outperforms the prompts learned by gradient-based methods, namely Linear Probe [Radford et al., 2021] and CoOp [Zhou et al., 2022]. The main contributions of our work can be summarized as follows 1 :

• We propose a novel black-box prompt tuning framework for VLMs in the scenario of MaaS, which incorporates cross-modal interaction by sharing the intrinsic parameter subspace of both vision and language modalities and jointly optimizing the prompts with different modalities in a derivative-free manner.
• We extend traditional evolution strategies (CMA-ES, MM-ES, MA-ES) to a new scope of black-box prompt tuning on VLMs, and explore different prompt tuning variants (shallow and deep prompt) to further enhance the cross-modal interaction.
• Extensive experimental results show that prompts optimized in multi-modal intrinsic subspace can successfully adapt VLM to downstream tasks without accessing the gradient and model structure, which is more effective and efficient compared with the baselines.

2 RelatedWork

2.1 Vision-Language Models

With the success of pre-trained models in the field of CV and NLP, many works attempted to pre-train large-scale models on both vision and language modalities, called VisionLanguage Models (VLMs). According to the method of integrating multi-modal information, researchers categorize VLMs into fusion encoder-based models and dual encoderbased models. Fusion encoder-based VLMs feed the text embedding and image features into a unified Transformer or dual Transformers to perform further self-attention or crossattention, such that information from two modalities could be integrated. Instead of relying on heavy transformer networks to model vision-language interaction, dual encoderbased VLMs adopt straightforward methods such as shallow attention layer or dot product to project the image embedding and text embedding to the same semantic space.

A representative of dual encoder-based VLMs is CLIP, which trains two single-model encoders using a contrastive loss to compute similarity scores for matching image-text pairs. After pre-training on 400 million data pairs collected from the Internet, CLIP demonstrates remarkable zero-shot image recognition capability on downstream tasks.

1 Code is available at https://github.com/BruthYU/BPT-VLM

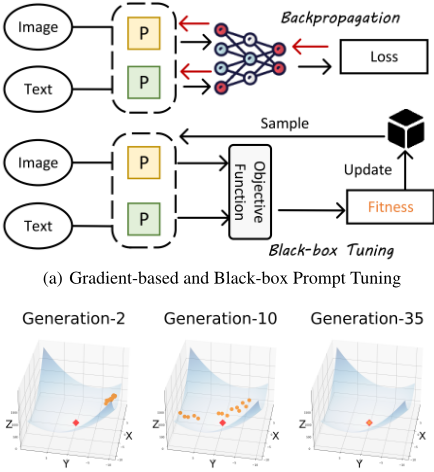

Figure 1: As shown in (a), black-box prompt tuning aims to optimize image and text prompts with derivative-free algorithms. The entire model is regarded as an objective function to evaluate the fitness of individuals. (b) gives an example of covariance matrix adaptation evolution, which searches for the minimum value of a binary function by adjusting the distribution of individuals through generations.

2.2 Prompt-based Learning

Prompt-based Learning originates from the NLP domain, which refers to prepend language instructions to the input text, and therefore reduces the gap between pre-trained LMs and downstream tasks. For instance, with the manually designed prompt "English: Hello, French: [MASK]", GPT-3 will output "Bonjour" as the result of a translation task. In addition to discrete prompts, recent works propose to treat prompt as continuous vectors and optimize them with gradient descent (see Figure 1(a)). Furthermore, prompt tuning can also be applied successfully to other fields: VPT [Jia et al., 2022] extend prompt tuning to ViT for performance improvement on vision tasks; CoOp [Zhou et al., 2022] introduces gradient-based prompt tuning to vision-language model.

In contrast to gradient-based learning, [Sun et al., 2022b] empirically show that black-box tuning is feasible on largescale LMs with prompts acting as a bridge, since the intrinsic dimension (the minimum number of parameters needed to be optimized) of pre-trained models can be compressed to several hundreds [Aghajanyan et al., 2021].

2.3 Black-box Optimization Algorithms

Black-box optimization refers to optimizing the objective function without knowing the analytic expression and gradient information, which is similar to model fine-tuning in the scenario of MaaS. Here we mainly review the studies of Evolution Strategies (ESs) - a class of powerful algorithms for black-box optimization. CMA-ES [Hansen and Ostermeier, 2001] is one of the most successful implementations of evolution strategy, which adapts the covariance matrix to approximate the shape of function landscape. The adaptation of CMA-ES aims to increase the probability of reproducing individuals towards promising search directions.

However, the sampling procedure requires the decomposition of the covariance matrix, which leads to Θ(n2 ) time complexity. Researchers have worked to reduce the computation the simplify the adaptation. MA-ES [Beyer and Sendhoff, 2017] removes the evolution path the simplify the update for the Cholesky factor; MM-ES [He et al., 2020] applies fast mixture sampling to approximate the covariance matrix C in a non-recursive manner. Recent studies also explore limitedmemory evolution strategy for memory efficient optimization (e.g. LM-MA-ES [Loshchilov et al., 2018]).

3 Approach

This section introduces the details of our proposed BPT-VLM framework, where the recent advanced model CLIP is used as the VLM backbone. In particular, given sampled intrinsic vectors from the shared original parameter space, the projection matrices transform them into image and text prompts. Then the CLIP working as a black-box objective function evaluates the fitness of these intrinsic vectors for ES-based black-box optimization. Different prompt variants are also incorporated for enhancing cross-modal interaction. The details are introduced in the following sections.

3.1 Intrinsic Vector based Population

As discussed by [Li and Liang, 2021] and [Jia et al., 2022], dozens of prompt tokens are required to be learned for singlemodality Transformers like RoBERTa [2019] and ViT [2020]. Considering the embedding dimension of CLIP (512 for text encoder and 756 for image encoder), the total parameters of the continuous prompts P ∈ RD1+D2 need to be optimized can be tens of thousands, which is challenging for black-box optimization. While [Aghajanyan et al., 2021] empirically demonstrates that large-scale LM actually has a very low intrinsic dimension, we extend this insight into VLMs to transfer prompt optimization from the original parameter space into a intrinsic subspace.

In particular, we define the parameter subspace of language as zL ∈ Rd1 and the visual counterpart as zV ∈ Rd2 .

with a concatenation operation ∥, the joint intrinsic parameter subspace is denoted as Z ∈ Rd1+d2 . Intrinsic vectors belonging to this subspace can be projected to vision-language prompt tokens pL and pV through randomly initialized matrices WL ∈ Rd1×D1 andWV ∈ Rd2×D2 .

Note that the weights of WL and WV are fixed through generations, but directly initializing them with standard uniform distribution N(0, 1/d) [Sun et al., 2022a] may result in slow convergence and inferior performance. Thus, to approximate the output distribution of dual encoders' entry embedding and convolutional layers, we use normal distribution to initialize WL and WV with means and standard deviations as follows:

where ˆ µL and ˆ σL are observed mean and deviation of the word embedding layer in the text encoder, and ˆ µV and ˆ σV are the counterparts of the entry convolutional layer in the image encoder, which uses 3-channel kernels with the size k.

In this way, we're able to perform prompt tuning in a much smaller parameter subspace (d1 + d2 ≪ D1 +D2), and multiple intrinsic vectors as individuals can form a population for evolutionary learning.

3.2 Objective Function

In evolution strategies, an objective function is required to evaluate the fitness of each individual, and knowing its precise analytic form is unnecessary. In the scenario of MaaS, it's reasonable to recognize CLIP as a black-box objective function, since only forward pass is allowed and thus cannot compute gradients or the Hessian matrix.

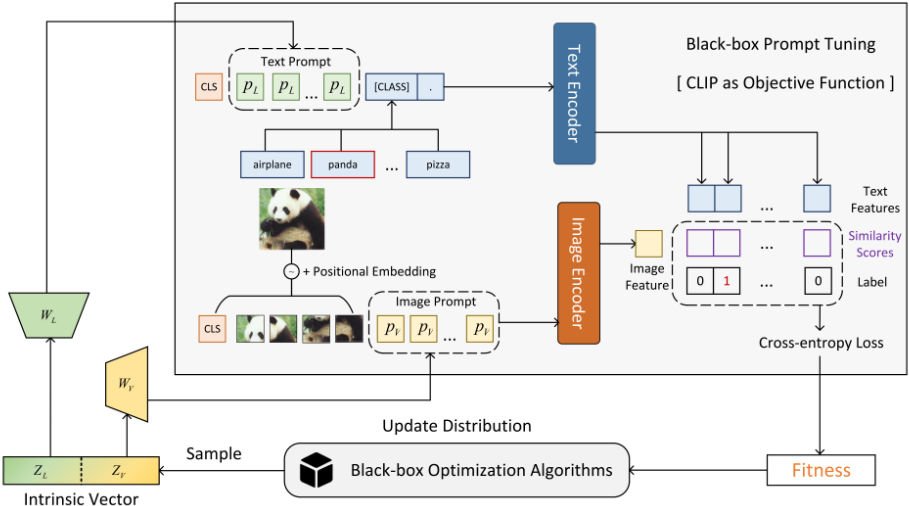

CLIP consists of two Transformer-based encoders - one image encoder and the other text encoder (shown in Figure 2). Assume that CLIP-like models take a batch of texts xL and images xV as input, and we recognize the forward pass as a black-box function f , which outputs the similarity scores between each image-text pairs. With the output and the labels Y , we can calculate the cross entropy loss L. Our framework aims to learn the optimal prompts in a derivative-free manner:

where P is the unified formulation of (pL, pV ). The blackbox function f can be evaluated with forward pass, but is not available to the optimizer in a closed form.

As discussed in 3.1, optimization of vision and language prompts actually performs in an intrinsic parameter subspace. Thus the prompt tuning can also be denoted as

3.3 Black-box Optimization with ES

Optimization in the intrinsic space only requires algorithms to deal with hundreds of parameters. Thus Evolution Strategy (ES) is a reasonable approach to tackle black-box prompt tuning. In the t + 1-th iteration of CMA-ES, individuals are sampled from the following distribution:

where mt is the mean of top-λ out of all individuals evaluated by the objective function L (Equation 5), σt denotes the mutation step-size. Through generations, the distribution is adapted by adding a random Gaussian mutation defined by a covariance matrix C t .

However, the original CMA-ES performs eigendecomposition C = AAT with Θ(n2 ) time complexity to update the covariance matrix C, which precludes its application on largescale optimization. While Cholesky-CMA-ES samples candidate solutions only with the iteratively updated Cholesky factor Ac:

which simplifies a lot the implementation of the algorithm. MA-ES further removes the evolution path and simplifies the update for the Cholesky factor; While MM-ES applies Fast Mixture Sampling to approximate the covariance matrix C in a non-recursive manner. The performance comparison of different black-box optimization is shown in Figure 4.

3.4 Prompt Design

Given the vision-language model CLIP, we introduce continuous prompts pL and pV to transfer pre-trained knowledge to downstream tasks. However, there are certain differences between its dual encoders (linguistic Transformer and ViT), and the prompt can be involved in multiple Transformer layers. This section explains different prompt designs used in our framework.

Preliminaries

For the text encoder, each word token in the input sentence S is first embedded to a dL-dimensional subspace through an embedding layer as

where eL ∈ RmL×dL are the embedding features of the text input padded to a fixed length mL.

On the other hand, for a plain ViT, an input image G will be first divided into mV patches, each patch is then projected to a dV -dimensional vector with a convolutional layer

where eV ∈ RmV ×dV are the convolutional features of the image patches.

Prompt Location

As is widely used and evaluated in previous works [Li and Liang, 2021], prefix positioning is adopted for the text encoder. Text prompt pL is placed before the sentence embedding eL, and the number of tokens in pL is denoted as nL:

where cL is the [CLS] token for text inputs, IL ∈ R(1+nL+mL)×dL represents the input features with prompt for the text encoder.

While for the image encoder (ViT), suffix positioning is applied to keep the information of pre-trained positional embedding, which has a length just matched with mV image patches. A set of nV visual tokens is referred as pV :

where cV is the [CLS] token for image inputs, and IV ∈ R(1+mV +nV )×dV denotes the visual features with prompt fed to the image encoder.

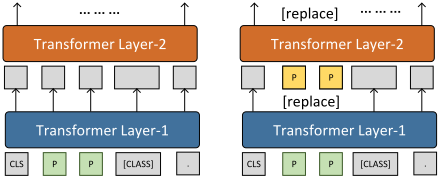

Prompt Depth

Since prompts are inserted to transformer-based image and text encoders, they have a strong ability to influence the output through sufficient cross-attention with input features. However, [Liu et al., 2022] point out that long propagation path from prompt to the final signal may lead to information loss. Thus we explore two variants of prompt tuning in BPTVLM, namely Shallow Prompt and Deep Prompt, depending on the depth of transformer layers inserted with projected prompts (Figure 3 takes the text encoder for example).

Shallow Prompt only inserts prompts for the input features of text encoder and image encoder (ViT), the propagation process can be formulated as:

where Li and Vi indicate the i-th transformer layer of image and text encoder; hL and hV refers to the hidden representation of text prompt pL and pV . Prompts interacts with input features along layer-upon-layer propagation.

To avoid information loss caused by long propagation path, Deep Prompt involves prompts in each layer of transformerbased text and image encoders:

where # is the hidden states to be replaced by another set of prompts. Since prompts inserted to different layers belong to different parameter spaces, multiple projection matrices are initialized. For N intrinsic parameter spaces, our framework recognizes the optimization as in-dependent sub-problems:

when one intrinsic space is under the process of black-box tuning, vectors belonging to other intrinsic spaces are kept fixed. Such iterative optimization enhances cross-modal interaction of VLM and generally outperforms shallow prompt.

4 Experiments

4.1 Experiment Setup

Datasets and Metrics

To evaluate the effectiveness of BPT-VLM, we conduct experiments on 9 visual image classification datasets: ImageNet [Deng et al., 2009], Caltech101 [Fei-Fei et al., 2004], OxfordPets [Parkhi et al., 2012], Flowers102 [Nilsback and Zisserman, 2008], Food101 [Bossard et al., 2014], UCF101 [Soomro et al., 2012], SUN397 [Xiao et al., 2010], EuroSAT [Helber et al., 2019] and DTD [Cimpoi et al., 2014]. These datasets covers a wide range of vision tasks.

The ImageNet and Caltech101 datasets are designed for generic image classification. While fine-grained object classification datasets including OxfordPets, Flowers102 and Food101 focus on differentiating between sub-classes belonging to the same meta-class. The SUN397 dataset is built for scene recognition. EuroSAT and DTD are specialized datasets catered for satellite classification and texture recognition. Following the few-shot setting adopted in [Zhou et al., 2022], all methods use the same 16-shot split for prompt tuning and are evaluated on full test-sets for comparison.

Models for Comparison

As presented in Table 2, we compare BPT-VLM with two kinds of prompt tuning methods: gradient-based and derivative-free methods.

For derivative-free method, we consider Manual Prompt as our baseline: Following the prompt setting introduced in [Radford et al., 2021], we use hand-crafted templates as task-relevant prompts to conduct zero-shot evaluation. For gradient-based methods, two baseline methods are considered: (1) Linear Probe: As suggested by [Tian et al., 2020], training a linear layer as the classification head on top of CLIP can achieve competitive performance compared with other fine-tuning methods. We followed the same training method used by [Radford et al., 2021] to train the linear probe model. (2) CoOp: Recently proposed CoOp [Zhou et al., 2022] models text prompt's context words as learnable vectors while the other parameters of CLIP are kept fixed. We reproduced the results using on each tasks using 16 middle positional tokens and default 200 epoch training.

We devise four versions of BPT-VLM for comparison, namely MM-ES-Shallow, MA-ES-Shallow, CMA-ESShallow and CMA-ES-Deep, which adopt different evolution strategies [2001; 2020; 2018] and prompt designs (discussed in 3.4) for black-box optimization.

4.2 Implementation Details

Three derivative-free algorithms are introduced to our blackbox prompt tuning frameword: CMA-ES, MM-ES and MAES, all of which are implemented based on open-source libraries PyCMA 2 and PyPop7 3 . Unless otherwise stated, all models are built with the open-source CLIP with ViT-B/32 as the visual encoder's backbone. Table 1 demonstrates the default configuration of hyper-parameters used in our experiments. Note that only the intrinsic vector is required to be updated and no back-propagation is performed.

2 PyCMA: https://github.com/CMA-ES/pycma

3 PyPop7: https://github.com/Evolutionary-Intelligence/pypop

Since the optimization process of gradient descent algorithm and derivative-free algorithm are quite different, here we redefine the meaning of a training epoch. For the shallow variant of black-box prompt tuning, every 12 generations of evolution for the intrinsic vector are regarded as 1 training epoch. As for the deep prompt variant, 1 epoch of training indicates that each intrinsic vector (belonging to 12 transformer layers) iteratively performs 1 generation of evolution.

4.3 Main Results

Overall Performance. Table 2 shows the comparison results of baseline model and four versions of BPT-VLM framework (introduced in 4.1). We observe that the CMA-ES-Deep model using CMA-ES optimization and Deep Prompt outperforms both the derivative-free and gradient-based baselines on 8 out of 9 datasets, indicating the effectiveness of our black-box prompt tuning framework for large-scale VLMs. In particular, we achieve an average improvement of 1.79% over recent advanced baseline CoOp that uses gradient-based prompt tuning, which further demonstrates the advantage of our framework in the scenario of MaaS.

Performance on Various Datasets. It is worth noting that we achieve 2.13% improvement over the best gradient-based baseline on ImageNet, which is a challenging task that contains 1000 classes. The performance improvements are also significant on fine-grained classification datasets such as OxfordPets and Food101, as well as scene and action recognition datasets (i.e. SUN397 and UCF-101). The performance of our method on StanfordCars is not so appealing, thus we further analyze the failure cases. It is observed that our method under-performs the gradient-based methods when the text annotations only have subtle differences like "BMW X3 SUV" and "BMW X5 SUV", which increase the difficulty for the derivative-free methods without strong fitting mechanisms like gradient descent.

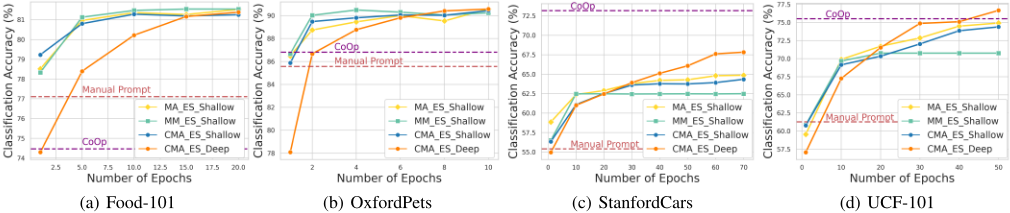

Performance of Various Optimization Algorithms and Prompt Designs. We plot the accuracy curves with different optimization algorithms and prompting methods during training in Figure 4. Since the results on each dataset is similar, the curves on four datasets are presented due to the limited space. We observe that the MM-ES algorithm performs slightly worse while converges faster, and there are no significant differences between other optimization algorithms. In addition, by comparing the two models as CMA-ES-Shallow and CMA-ES-Deep that use different prompting methods, we find that the shallow prompt achieves faster convergence speed, while slightly under-performs the deep variant on final accuracy. This coincides with our intuition since the deep prompt is iteratively optimized in different intrinsic subspaces involving each layer of the pre-trained VLMs, while the shallow prompt only involves the input layer that includes less parameters to be optimized as described in Section 3.4.

4.4 Further Analyses

We conduct further analyses on various hyper-parameters to explore their effect. Each hyper-parameter is investigated while keeping the other hyper-parameters as default as listed in Table 1. For the limits of space, we show the experimental results on Caltech101 with the same 16-shot split in Figure 5. Similar results can be observed on other datasets.

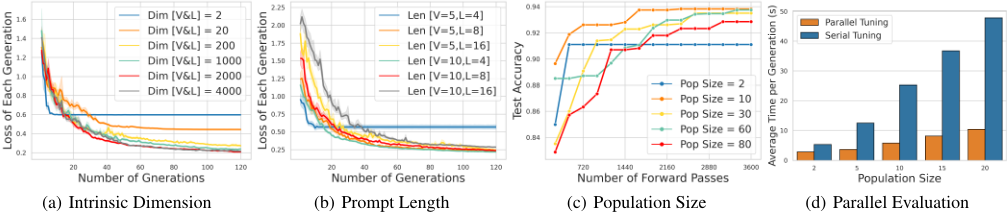

Effect of Intrinsic Dimension. The parameter subspace of the intrinsic vectors is the space where optimization actually performs. As shown in Figure 5(a), the model with lower intrinsic dimension converges faster, but yields higher losses. When the intrinsic dimension increases over 1000, there are no significant differences in losses. Thus, the intrinsic dimension is recommended to be set to 1000 in our experiments.

Effect of Prompt Length. We utilize text prompt and image prompt for better inducing the knowledge contained in the pre-trained VLMs, which determine the original parameter space in text and image encoders. To investigate the effect of prompt length, we evaluate BPT-VLM with various lengths. As shown in Figure 5(b), the converged loss decreases when the prompt length grows first, but then it tends to be stable when the length becomes larger. Given that the model converges slowly with the increasing prompt length, we use a reliable setting as (V=5, L=8) for the text and prompt length for performance and efficiency balance.

Effect of Population Size. In one generation of the evolution strategy, individuals (intrinsic vectors) are sampled from a multivariate normal distribution. Then the algorithm evaluates their fitness to adjust the distribution for the next generation. Here we explore the effect of population size within 3600 times of individual evaluations. As suggested in Figure 5(c), a smaller population size as 2 can reach the convergence faster, but a noticeable performance degradation occurs. In addition, the larger population size does not always yield better results but converges more slowly. On the whole, the population size between 10 and 60 is recommended to be a reliable setting in our experiments.

Efficiency of Parallel Training. Open-source black-box optimization algorithms usually evaluate individuals in a time-consuming serial manner. To improve efficiency, our method can be easily adapted to support parallel prompt tuning, which can evaluate all individuals simultaneously in a single concatenated batch. Figure 5(d) shows the result of the efficiency analysis. It is worth noting that parallel tuning only takes about 1/4 time compared with traditional serial tuning when the population size varies in {5, 10, 15, 20}, and this advantage in training efficiency will be more prominent when the population size grows.

5 Conclusions and FutureWork

In this paper, we propose a black-box prompt tuning framework for vision-language models in the scenario of MaaS. We extend derivative-free algorithms to the new scope of prompt tuning for pre-trained VLMs, and conduct expansive experiments to verify that large-scale VLMs also have very low intrinsic dimensions, which is as effective for fine-tuning as the full parameter spaces. Moreover, we incorporate cross-modal interaction in our framework by sharing the intrinsic parameter subspace of both vision and language modalities. Different prompt designs are also explored to enhance prompts' influence during propagation.

It could be interesting to consider black-box prompt tuning in different downstream tasks based on different pre-trained models, and the black-box algorithms could be exchanged, such as Particle Swarm and Bayesian Optimization. Our future work will also concern a deeper analysis of cross-modal interaction from the perspective of derivative-free optimization in shared intrinsic parameter spaces.

Acknowledgements

This research is funded by the National Key Research and Development Program of China (No. 2021ZD0114002), and the Science and Technology Commission of Shanghai Municipality Grant (No. 22511105901, No. 21511100402).
