A Logic-based Approach to Contrastive Explainability for Neurosymbolic Visual Question Answering

1 Introduction

Visual Question Answering (VQA) [Zou and Xie, 2020] is a challenging field that combines object detection, natural language processing, and reasoning to give the answer to a question related to some visual input. VQA finds interesting applications in the real world, such as medicine and advertising [Barra et al., 2021]. Although VQA has seen great advances in recent years, VQA systems typically rely on deeplearning architectures, and the important aspect of explainability [Dosilovic et al., 2018]-a constant focus of the machine learning community due to the importance of building transparent and interpretable systems-is still challenging.

Contrastive explanations (CEs) [Lipton, 1990] answer why a decision has been reached in contrast to a different one. This can serve as a window into the epistemic state of the explainee, and the explanation can focus on input features that are necessary to flip an outcome instead of considering a complete causal chain. It has been argued that CEs are intuitive to understand and to produce for humans, as explanations are often (implicitly) contrastive [Miller, 2019].

Our main contribution is a CE framework for VQA that aims at explaining why the answer to a question is P in contrast to F. An explanation identifies a minimal set of abstract features of the scene, like types and positions of objects, that need to be changed to create the counterfactual outcome F. This approach is inspired by recent work on CE to improve the interpretability of natural-language processing models [Jacovi et al., 2021]. There are however important differences to our approach for the VQA domain: Jacovi et al. use interventions on input factors that are mostly amnesic in nature, i.e., an alternative outcome is explained by omitting factors from the input. We are instead interested in more general changes to an input scene that involve not only removing objects but changing their attributes, moving them, or even adding new objects. Furthermore, our notion of explanations incorporates a more fine-grained view on the cost of the required transformations.

Regarding related work, visualising the contributions of individual pixels to the prediction is often used to improve the interpretability of VQA systems [Arras et al., 2022], but this often gives only limited insights into the reasoning process. Networks like the MAC [Hudson and Manning, 2018] allow to follow the attention mechanism for both the reasoning steps that come from the question as well as attention on corresponding areas of the scene. The NS-VQA system presented a modular neurosymbolic architecture to disentangle perception from reasoning [Yi et al., 2018]. It is interpretable as the reasoning part is implemented in Python and can be traced by a debugger. This type of interpretations resemble complete causal chains, but they are not geared to contrastiveness as explanations in our proposal. The CLEVR-X dataset [Salewski et al., 2020] was designed to promote explainability for VQA. However, the task there is to select natural language expression as explanations that fit best, which may not help to produce new explanations, the less contrastive ones.

Our CE framework for VQA, which we call NSVQASP, is inspired by NS-VQA. The latter had big success in solving challenging VQA datasets like CLEVR [Johnson et al., 2017]-consisting of computer generated images with geometric objects and compositional questions revolving around those-where it reaches 99% accuracy. While the reasoning part in NS-VQA is implemented in Python, Eiter et al. (2022) recently introduced an implementation that uses a logical theory and answer-set programming (ASP) [Brewka et al., 2011] instead. Once the reasoning part is provided as logical theory, CE generation can be framed as a task of logical abduction. ASP proves to be a promising framework to realise this, in particular as ASP optimisation allows one to express preferences with complex cost functions, which can be easily changed if need be. We present a novel variant of CE explanations designed to aid model validation tasks, which exhibit whether an answer can be flipped by only changing object attributes with low confidence scores from the object detection module.

We validate our approach on the CLEVR dataset, which we extend by several more sophisticated questions to further demonstrate the robustness of the modular architecture of NSVQASP. In particular, we add 20 new question templates for different versions of the new spatial relation "between", equality of objects, and counting. While we achieve top performance compared to related neural and neurosymbolic approaches, we can moreover produce CEs. We show this for model explanation, debugging, and validation tasks, demonstrating the versatility of the declarative approach to reasoning within modular neurosymbolic VQA architectures.

Code and data are available from https://github.com/ pudumagico/nsvqasp.

2 Contrastive Explanations for VQA

Contrastive explanations (CE) aim at answering why a certain outcome occurred in contrast to an alternative one. In this section, we present a framework for CE in the VQA domain. Our approach is inspired by a related one from natural language processing due to Jacovi et al. (2021), who used an intervention-based approach, in which causal factors that lead to a model decision are identified by omitting them and thereby creating the desired counterfactual outcome.

2.1 ACE Framework for VQA

In VQA, a problem instance consists of a visual scene S and a natural language question Q. The goal is to correctly answer Q for the given scene S. A contrastive explanation clarifies why the answer produced by a model is P and not F, by showing what need to be changed in a scene so that the answer changes from P to F.

We illustrate our CE formalisation for VQA using the CLEVR dataset [Johnson et al., 2017] that tests various aspects of visual reasoning including attribute identification, counting, comparison, spatial relationships, and logical operations. An example of a CLEVR scene from the original paper [Johnson et al., 2017] and several questions are given in Fig. 1. For each question, we also present an alternative answer, called the foil, to generate a contrastive explanation.

For our formalisation, we adjust the terminology of Jacovi et al. (2021) to our setting. The candidate factor space F consists of all features with potential influence on a model's decision. For a VQA task, we are only interested in features that describe the scene in terms of symbolic properties like position or shape of an object.

In CLEVR, each object has a position, a colour, a shape, a size, and a material. Each of these attributes has a finite range of values. We can use a tuple representation for objects and F can be defined a finite set containing all object tuples.

The event space E is the set of all answers a model can produce. In CLEVR, questions are either Boolean, ask for a number when counting is involved, or ask for an object attribute (other than position). As the maximal number of objects in any scene is bounded, E is a finite set.

For a model M, we write M[S,Q] to denote the answer that M produces for question Q and scene S. Furthermore, a(S) ⊆ F is the abstract scene representation for S. Our formal CE definition for VQA systems is as follows.

Definition 1. Let M be a model with candidate factor space F and event space E. Assume that M[Q, S] = P for some question Q and some visual scene S. A contrastive explanation (CE) for the foil F ⊆ E is a set E ⊆ F such that M[Q, S′ ] ∈ F, where S′ is a scene with a(S′ ) = E.

The foil F describes the contrastive outcome as a set of answers and an explanation is an abstract representation of a scene that would result in some answer from F. Typically, F contains a single answer, but F = E \ {P} can also be useful for explaining how to flip the outcome in any direction.

Under Occam's razor, explanations are typically required to fulfill some notion of minimality, as they should only highlight aspects of the input that necessarily have to change. We thus further require CEs to be minimal under some preference relation E ≺ E′ between explanations E and E′ .

For CLEVR, a good candidate for defining preferences is to measure how many steps are required to change an abstract representation a(S) of the original scene S to the CE E and how many objects are involved. For instance, it appears to be less invasive to change the position of an object than other object attributes. Also, the number of objects affected should be small so that explanations are localised.

To make this precise, we consider the following operations for transforming an abstract representation into another one: (i) adding a new object, (ii) removing an object, (iii) changing an object attribute other than the position, and (iv) changing the position of an object. The operations have associated costs that can be customised by the user. For example, they could decrease from (i) to (iv) to reflect that changing attributes is considered less expensive than deleting or adding objects. Given two abstract scene representations S and S′ , cost (S, S′ ) is the minimal total cost for any sequence of operations (i)-(iv) whose execution starting on S will result in S′ . Explanation preference is then defined as follows.

Definition 2. Let M be a model such that M[Q, S] = P for some question Q, scene S, and answer P. Furthermore, let E and E′ be two contrastive explanation for a given foil F. Explanation E is strictly preferred over E′ , in symbols E ≺ E′ , if cost(a(S), E) < cost(a(S), E′ ).

2.2 CE as Logical Abduction

Searching for input perturbations that change a decision can be challenging for deep-learning networks. However, if we use a modular neurosymbolic approach for the VQA task, separate modules can take care of object detection, language processing, and symbolic execution to compute an answer. Once the execution module is provided as a logical theory, cf. [Eiter et al., 2022], the answers can be computed using deduction, while contrastive explanations can be obtained through abduction.

A1: yes F1: Why not "no"?

Q2:What size is the cylinder that is left of the brown metal thing that is left of the big sphere?

A2: small F2: Why not "large"?

Q3:There is a sphere with the same size as the metal cube; is it made of the same material as the small red sphere?

A3: yes F3: Why not "no"?

Q4:How many objects are either small cylinders or red things?

A4: 5 F4: Why not "4"?

Figure 1: A CLEVR scene with CEs for several questions. For each question Q with answer A, we present a foil F for generating a CE. The explanation is then illustrated in the scene by highlighting the objects that need to be changed such that the answer changes from A to F.

Assume T(M) is a logic theory that encodes the reasoning module of a VQA systemM such that T (M)∪a(S)∪a(Q) |= P , whenever P is the answer to question Q for scene S, and a(Q) is a symbolic representation of question Q.

Contrastive explanations correspond to minimal abductive explanations so that the foil is entailed by the theory, as formally stated by the following proposition.

Proposition 1. Let M be a model such that M[Q, S] = P for some question Q, scene S, and answer P. Then, E is a minimal CE for F iff

(i) E ∪ T(M) ∪ a(Q) is consistent,

(ii) E ∪ T(M) ∪ a(Q) |= F, and

(iii) no E′ with E′ ≺ E satisfies (i) and (ii).

2.3 Applications of CE for VQA

CEs not only help to make VQA systems more trustworthy by providing insights why an answer was produced, they also can aid model debugging and model validation. The difference between these tasks mainly lies in how the foil is defined.

Model Explanation. Explanations for correct answers are often required if a user had a different outcome in mind. Contrastive explanations make this explicit by specifying the expected outcome as the foil. This focuses the explanation on reasons relevant to obtain the alternative outcome and makes them more succinct than presenting a complete causal chain. For instance, consider question Q2: What size is the cylinder that is left of the brown metal thing that is left of the big sphere? from Fig. 1. The user expects the answer to be "large" while it actually is "small". A full causal explanation would first identify the big red metal sphere in the scene. Then, it would point to the small brown metal sphere left to it, and then finally to the small brown rubber cylinder left of that one. A contrastive explanation would immediately point to the same brown rubber cylinder and suggest to change its size to "large" to flip the answer and thus focuses attention to the part of the scene that is most relevant.

Model Debugging. Debugging is necessary if a VQA system produces a wrong answer P ′ . Here, CEs are useful as the correct answer P can serve as the foil {P} and we get a compact explanation what changes in a scene would result in the correct outcome. Having a modular framework helps in general for debugging, as we have already explicit representations of the scene and the question in symbolic form which are essentially self explanatory. The CE further helps to know where to look first. For example, assume the material of an object gets misclassified and the answer of a question is wrong as a consequence. If the CE reveals that changing the wrong label to the correct one also leads to the correct answer, the underlying problem in the object detection module is revealed.

Model Validation. How do we know if we should not trust a particular answer given by a VQA system? We define model validation as the task to automatically detect whether a given answer is not trustworthy, and present model validation as a novel application of CEs. A common source of wrong answers are mistakes by the object detection module. If the latter is implemented with neural networks, low confidence scores for the labels of object attributes hint at possible misclassification. This does not necessarily lead to a wrong answer, as it might be irrelevant for the question considered. However, if the answer can flip in any direction by changing only attribute values of objects that have a low score, manual inspection is advised. This can be formulated as a CE generation problem: We take E \ {P} as the foil, where E is the event space and P is the current answer. For the preference relation, we only allow changing attributes with scores below a fixed threshold by assigning infinite (i.e., huge) cost to all other operations in the cost function of Defn. 2. If we obtain a CE, low scores for the objects highlighted by the explanation might be critical for the outcome and labels should be inspected.

3 The Neurosymbolic VQA Framework

In this section, we introduce a modular neurosymbolic VQA framework, which we call NSVQASP, for solving VQA tasks for a new extension of the CLEVR dataset that is also capable of producing CEs. It is based on the modular approach of NS-VQA [Yi et al., 2018], but it features a logic module for symbolic execution where answer-set programming (ASP) is used for reasoning and explanation finding. To this end, we exploit recent work [Eiter et al., 2022] and extend it by an abductive module for obtaining minimal CEs.

3.1 Architecture of NSVQASP

We adopt the modular neurosymbolic architecture of NS-VQA, which maintains a separation between the tasks needed for language processing, object detection, and symbol processing to answer a question. There, neural networks are used for language processing and object detection, while the symbolic execution is realised with a Python inference module. NS-VQA uses the Mask RCNN [He et al., 2020] for object detection in a way such that a visual scene can be translated into an abstract structural representation, and a long short-term memory network (LSTM) [Luong et al., 2015] to translate a question into a functional program that can be executed on the abstract scene using the inference module.

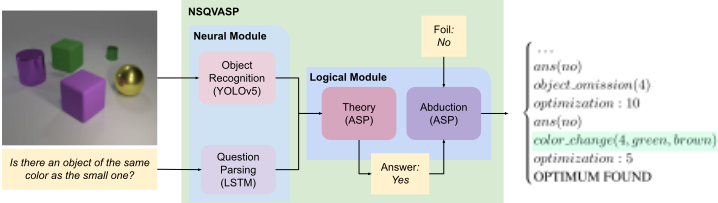

The architecture of NSVQASP and the workflow to answer and explain a question is depicted in Fig. 2. We use YOLOv5 1 , a popular and up-to-date choice for visual object recognition, instead of the Mask RCNN. However, we maintain the original LSTM implementation, as it works almost perfectly for CLEVR. The more significant change is however to replace the Python module for inference with a logical theory that can be used for both "foward" deduction to compute an answer, and for "backward" abduction to find a CE for a given foil in the sense of Prop. 1. Both the theory and the novel abduction module are realised via ASP [Brewka et al., 2011] as it provides the expressiveness required to formalise the CLEVR questions that involve counting and arithmetic as well as the flexibility to encode the abduction task as an optimisation problem that can be easily customised.

3.2 The ASPModule for Inference and CEs

Answer-set programming (ASP) [Brewka et al., 2011] is a declarative problem solving paradigm, where problems are encoded as a logic program such that their models (called answer sets) represent the solutions. It allows for a concise representation of search and optimisation problems for which solutions can be computed with some dedicated ASP solver. 2 A logic program is a finite set of rules of the form Head :-Body, where Head is a first-order atom and Body is a set of firstorder literals (intuitively, Head is true if Body is true). Facts are rules with empty body that are use to represent problem instances. Constraints are rules without heads that eliminate unwanted answer set candidates. Further language constructs readily available include choice rules for expressing nondeterminism, aggregates, and optimisation statements with priorities. A thorough introduction to the modelling language is given by Calimeri et al. (2020).

1 https://ultralytics.com/yolov5.

2 E.g., potassco.org, www.dlvsystem.com.

Forward Inference for Question Answering

We use an ASP encoding for answering CLEVR questions due to Eiter et al. (2022). They considered a non-deterministic setting, where multiple answers can be derived that have different probabilities depending on the confidence scores from the object detection network, and a deterministic setting, where only a unique answer is derived from the object classifications that obtained maximal scores. Here, we use the deterministic setting and denote the corresponding encoding by Tasp .

The encoding Tasp assumes an ASP fact representation aasp(S) of the visual scene S and aasp(Q) for the question Q. The answer can then be derived with an ASP solver:

Proposition 2. Let P be the unique answer for CLEVR question Q on scene S. Then, Tasp ∪ aasp(S) ∪ aasp(Q) yields a single answer set that contains ans(P).

We illustrate this by example, details are given in related work [Eiter et al., 2022].

Example 1. Let S be a CLEVR scene with the following fact representation aasp(S):

obj(0,large,blue,metal,cylinder,417,137). obj(1,large,purple,metal,cube,150,195). obj(2,large,gray,metal,sphere,265,234). obj(3,large,brown,rubber,cylinder,145,117). obj(4,small,green,metal,sphere,339,116). obj(5,small,purple,rubber,sphere,226,165).

Each object in S is encoded as an ASP fact that defines its ID, size, colour, shape, and position (as center point). Furthermore, let Q be the question "Is the number of rubber objects left to the cube equal to the number of metallic cylinders?". Its symbolic representation aasp(Q) by ASP facts is:

scene(0). unique(5,4). filter_metal(1,0). relate_left(6,5). filter_cylinder(2,1). filter_rubber(7,6). count(3,2). count(8,7). filter_cube(4,0). equal_integer(9,3,8). end(9).

Each fact p(n1, . . . , nk) denotes a processing step, where p is the operator, n1 is the step number, and n2, . . . , nk are the preceding steps that feed into p; end(9) marks the final step. The unique answer set of Tasp ∪aasp(S)∪aasp(Q) contains ans(true), which encodes the correct answer "yes".

Abduction for Computing CEs

We present a novel ASP program Aasp to compute CEs with abductive reasoning as described in Prop. 1. We illustrate some details; the full program is in the project's online repository.

To compute a CE, Aasp uses (1) choice rules to nondeterministically span the search space of possible operations on a scene, (2) a constraint to enforce that applying these operations changes the answer to one that is specified as foil, and (3) weak (i.e., soft) constraints to encode the minimality condition from Defn. 2 as an optimisation objective.

As for (1), we illustrate the choice rules for changing a scene with an example that changes some colour attribute:

{ has_col(ID,C): col(C)} = 1 :- object(ID). col_change(ID,C,C') :- has_col(ID,C'), obj(0,ID,_,C,_,_,_,_), C != C'.

The first rule non-deterministically selects a colour for an object, while the second derives col_change if that colour represents a change compared to the original scene.

The constraint of (2) ensuring an answer change is

:- ans(A), #count{ 1 : foil(A) } != 1.

Here, foil refers to the foil F, which is represented by facts aasp(F) = {foil(p) | p ∈ F}.

In (3), the following weak constraint is added:

:∼ col_change(ID,C,C'). [5,ID,col_change]

It says that any colour change of object ID (from C to C ′ ) is penalised by a cost of 5, which is recorded in the cost tuple.

Rules for the other change operations are defined analogously. The maximal number of objects that can be added is currently limited by a constant that can be adjusted by the user. Likewise, movement of objects proceeds in increments of a fixed number of pixels.

Proposition 3. Given a CLEVR question Q and scene S, the optimal answer sets of Aasp ∪ Tasp ∪ aasp(S) ∪ aasp(Q) ∪ aasp(F ) are in one-to-one correspondence to the minimal CEs for foil F.

Example 2. Let us revisit question Q on scene S with answer "yes" from Example 1. Assume the user expects this answer to be "no" instead. The CEs can be computed as answer sets following Prop. 3. For illustration, one of them contains

which represents the minimal change to flip the answer by moving the cube 50 pixels to the left.

What changes to a scene are permitted and/or the cost model can be changed easily if desired.

4 Evaluation

Prior to an evaluation of our CE approach, we test the accuracy of NSVQASP on CLEVR and compare it against NS-VQA and other baseline approaches. We extend CLEVR with more sophisticated questions to further demonstrate the robustness of the modular neurosymbolic architecture. Also, it is useful for the explanation task to include questions that require a little more advanced reasoning and are thus harder to explain.

4.1 Extending CLEVR

The CLEVR dataset consists of 70k images plus 700k questions for training and 15k images plus 150k questions for validation. Questions are generated from templates which define the structure of a question. We extend the CLEVR dataset by introducing 20 new templates that include a new spatial relation "between", questions regarding equality of objects, and new counting questions, respectively; consequently, they can be divided into three groups. We generated 200k new questions from the templates for training for each group and 150k questions for validation.

The "Between" group. This group contains templates for questions that ask whether an object is between two other ones. We consider three semantics for "between" illustrated in Fig. 3: Object b is between object a1 and a2 if (a) the projection on the horizontal axis of b falls between the one of a1 and a2; (b) b is within the bounding box created by the centers of a1 and a2; and (c) the distance of b to the segment connecting the center points from a1 to a2 is below a fixed threshold.

The "Equal" group. This group contains templates for questions that revolve around tests whether objects are equal (agree on all their attributes aside from position) or different. More specifically, we ask: "Are all object in the scene different?" and "Are there (at least or exactly) n equal objects in the scene?", where i ∈ {2, 3, 4} (scenes with more than 4 equal objects are rare in CLEVR).

The "Count-Between" group. This group contains templates for variants of the "between" questions that involve counting. Specifically, we ask for the number of objects that are between two other ones, where we also consider the three semantic versions of "between" from above.

4.2 Experimental Comparison

We use the original CLEVR dataset, as well as the new datasets NEWbtwn, NEWeql, and NEWcnt as described above. Dataset NEW was generated from the union of the question templates for NEWbtwn, NEWeql, and NEWcnt.

As baseline approaches, we consider (1) the neurosymbolic systemNS-VQA [Yi et al., 2018], the relational network RN [Santoro et al., 2017] that uses an CNN and LSTM combination and introduces a relational cell that combines the extracted features from the image with the processed question before using a classifier, and (2) the MAC [Hudson and Manning, 2018], which is an end-to-end trainable network that separates control from memory by decomposing a problem into attention-based reasoning steps.

The results of our comparisons are given in Table 1. 3 We could reproduce the results for the related approaches on CLEVR from the literature. For CLEVR∪NEW, the neurosymbolic approaches work better, even more so when only NEW is used for training. 4 A possible reason is that the neu-

3 We use an Intel® Core™ i7-12700K, 32GB RAM, and an NVIDIA GeForce RTX 3080 Ti for training. YOLOv5 was trained with the CLEVR mini dataset (https://github.com/kexinyi/ns-vqa).

4 NS-VQA answers some questions from NEW incorrectly due to issues that arise when converting coordinates from their object detection module for the more advanced questions. NSVQASP performs sometimes worse than NS-VQA due to the different visual modules.

(a)

(c)

Table 2: Accuracies for dataset CLEVR ∪ NEWbtwn for different semantics of "between".

ral approaches may need more visual scenes to learn the new questions, while we merely need to adjust the symbolic execution module (or the ASP encoding for NSVQASP) and retrain the LSTM; convenient end-to-end learning is currently not featured by NS-VQA and NSVQASP, though.

We give a more in-depth analysis of the performance of the different VQA approaches relative to the datasets NEWbtwn, NEWeql, and NEWcnt in Tables 2-4. Regarding the different semantics for between, the neural approaches have more difficulties learning the version with bounding-boxes than the one with projection. Also, it appears that the one that uses the distance to a segment is most difficult. For the MAC and the RN, the questions in NEWbtwn seem to be easier than those in NEWcnt, and the ones in NEWeql seem to be hardest. While more scenes and questions would plausibly improve the performance of the MAC and the RN, the less data hungry neurosymbolic approaches perform already very well.

4.3 Contrastive Explanations

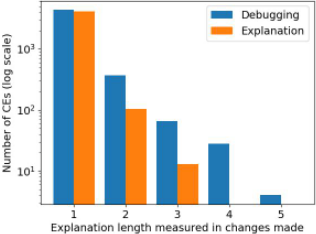

We conducted a quantitative analysis regarding the average length of CEs and times needed to produce them, and we provide some further illustrations for explanation, debugging, and validation tasks as described in Sec. 2. We qualitatively evaluated our approach by checking whether explanations make intuitively sense on samples.

Explanation. Fig. 4 summarises the outcome of our first experiment on contrastive explainability. We let NSVQASP determine the outcome for a sample of 5k questions from CLEVR ∪ NEW. For each answer P, we computed the minimal CEs to change the outcome in any direction, hence the foil F = E \ {P}. The orange bars in Fig. 4 depict the number of CEs as a function of the length of the CE (measured as the number of required changes, or, equivalently, the size of the optimal answer set that encodes the CE). For most questions, only one or two changes to a scene are needed but never more than five. The time for finding a minimal CE ranges from 1.1s to 323.2s with an average of 6.4s ± 7.3s. 5

Debugging. As NSVQASP does not predict the correct answer for all questions from CLEVR ∪ NEW, we can use the A1: 0 (correct is 1)

5 We use clingo (v. 5.6.2 ) [Gebser et al., 2019] with unsatisfiable core-guided optimisation [Andres et al., 2012].

A2: no (correct is "yes")

Q1:What is the material of the large object left to the small rubber cube?

A1: rubber A2: 1

Figure 6: Two scenes with blurred objects to challenge YOLO. A CE exists if their correct classification is relevant for the answer.

other ones (about 4k out of 150k questions) to illustrate CEs for debugging. For this task, we use the correct ground-truth answer as a singleton foil to find an explanation that changes the wrong prediction to the correct one. Figure 4 shows the number of CEs having a given length as blue bars for the debugging setting. Similar to the previous experiment, CEs tend to be short. The time to generate CEs in this setting ranges from 0.5s to 18.6s with an average of 7.3s ± 4.2s. Fig. 5 shows examples of two scenes with CEs for debugging, where NSVQASP predicated the wrong answer. Inspecting the CEs points to the relevant mistakes made by the object detector; they could be fixed by further fine-tuning YOLO.

Validation. Last, we illustrate how CEs can help to spot object classifications in a scene that should be manually inspected as (i) the answer depends on that classification, and (ii) the classification scores from the neural module are low, which indicates that a misclassification is likely. For the according model validation task in Sec. 2, the foil are all other outcomes and the cost model incorporates the confidence scores from YOLO. Fig. 6 shows example scenes that contain blurred objects to challenge object detection. For the left one, the blurred object is irrelevant and hence no CE for validation exists. For the scene on the right, the answer would flip if the blurred object changes, which is highlighted by a respective CE.

5 Further RelatedWork

Stepin et al. (2021) provide an excellent survey on contrastive explainability in machine learning. The role of logic in this context was further discussed by Marques-Silva (2023). Ignatiev et al. (2020) expanded on the formal relationship between abduction and CEs. Notably, CEs have been proposed in various machine-learning contexts, like for decision lists [Ignatiev and Silva, 2021], or natural language processing [Jacovi et al., 2021]. In the computer-vision domain, there have been efforts to unify adversarial and counterfactual explanations [Freiesleben, 2022]. To the best of our knowledge, CEs have not been considered for VQA.

As already discussed in the introduction, techniques to make VQA systems more interpretable include tracing of the symbolic execution (NS-VQA) and tracing the attention steps (MAC). Although they do not involve contrastiveness, tracing techniques can still be very useful. For our ASP approach, we can take advantage of off-the-shelf tools such as xclingo [Cabalar et al., 2020] to compute justifications for answer sets that are similar to such traces. Inspiration for building an ASP neurosymbolic system comes from NeurASP [Yang et al., 2020] that uses neural atoms for the interface between the logical and the neural module. Similar approaches exist, such as DeepStochLog [Winters et al., 2022], Slash [Skryagin et al., 2022], and DeepProbLog [Manhaeve et al., 2018].

Many extensions of CLEVR were conceived to study aspects like hypothetical consequences of performing specific actions [Sampat et al., 2021], mathematical questions [Lindstrom and Abraham, 2022], or reasoning about object rotations [Beckham et al., 2023]. While they are not relevant for us immediately as CLEVR suffices to demonstrate our approach, they could be considered for future work.

6 Discussion and Conclusion

Our approach to CE generation, which we frame as a problem of logical abduction, is a further step towards building robust and explainable VQA systems. We complement the landscape of existing approaches to make VQA systems more interpretable by providing explanations that are directly linked to the answer expected by a user. This is not only useful for gaining a better understanding for the actual answer, but also for debugging (if the model is wrong) and for validation tasks.

Our proposed CE framework relies on a modular neurosymbolic architecture with a clear separation between object detection, language processing, and reasoning that is inspired by NS-VQA [Yi et al., 2018]. We use ASP to realise the reasoning module for computing answers, and we provide an extension of the ASP module so that CEs can be computed via abductive reasoning. Besides being able to smoothly switch between deduction and abduction, ASP makes it also easy to customise the system by changing details of the declaratively specified reasoning tasks. Having a modular VQA architecture helps in general when requirements change as only the affected modules need to be updated. We demonstrated this for an extension of CLEVR with new questions, where the modular neurosymbolic frameworks achieve top performance.

For future work, we plan to increase convenience of preference specification (e.g., support of priority levels) and to further evaluate the utility of CEs by user studies involving also real-world oriented datasets.
